KZS18100-N5-JH（Z-Axis Slide Guide:KZS18100）

Spec

Add to List
Basic items Model KZS18100-N5-JH
CAD
List Price (1Qty) INQUIRY
RoHS Supporting RoHS 10 substance
Basic specification I Stage surface size 180×180
Travel distance[mm] 100
Load capacity[kgf] 10
Load capacity[N] 98
Ball screw φ diameter
-Lead [mm]		 φ15 Lead 5
Guide Slide Guide
Main material Aluminum-Black alumite finishing
Basic specification II Cover None
【Controller】
DS102/DS112		 Supporting
Motor option 5 Phase stepping motor
(Standard)
Accessory cable Robot cable
4m Both end connectors
Grease change Standard grease (AFF standard)
MAX Speed
[mm/sec]		 30
Resolution 10μm/Pulse(Full-step)
Stopping accuracy Single axis accuracy specification
Uni-directional positioning accuracy
[Within μm]		 15
Single axis accuracy specification
Repeatability positioning accuracy
[Within ±μm]		 1
Travel accuracy Single axis accuracy specification
Straightness[Withinμm]		 10
Single axis accuracy specification
Pitching[Within ″]		 30
Single axis accuracy specification
Yawing[Within ″]		 20
Tolerance Vertical degree (full stroke)
[within μm]		 50
Single axis accuracy specification
Backlash[Within μm]		 2
Sensor Limit sensor Available
Origin sensor Available
Slit origin sensor Available
Weight Weight[kg] 13.9
Accessory Hexagon socket bolt M6-25[4pcs]
Add to List

Related Products

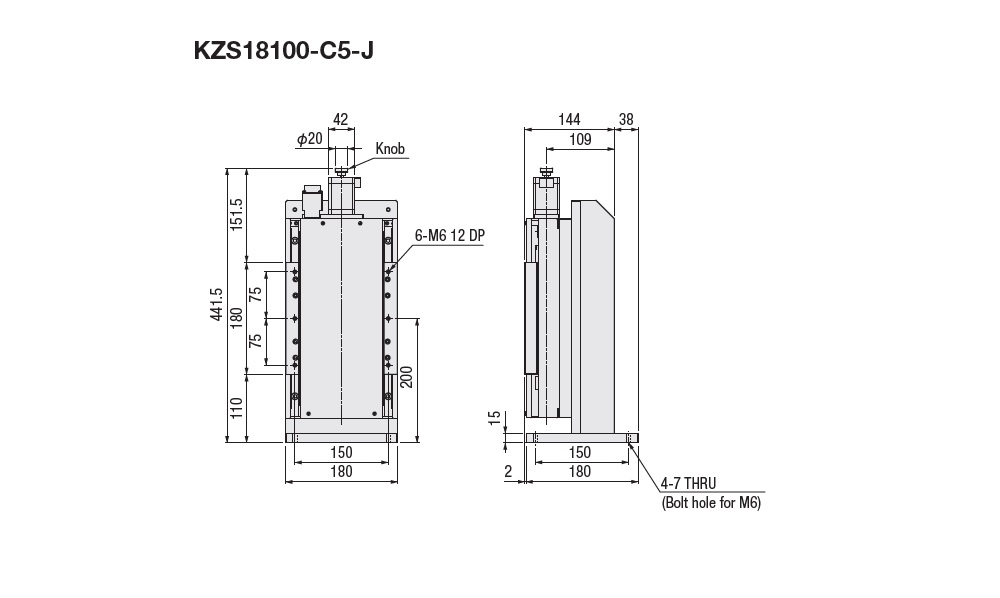

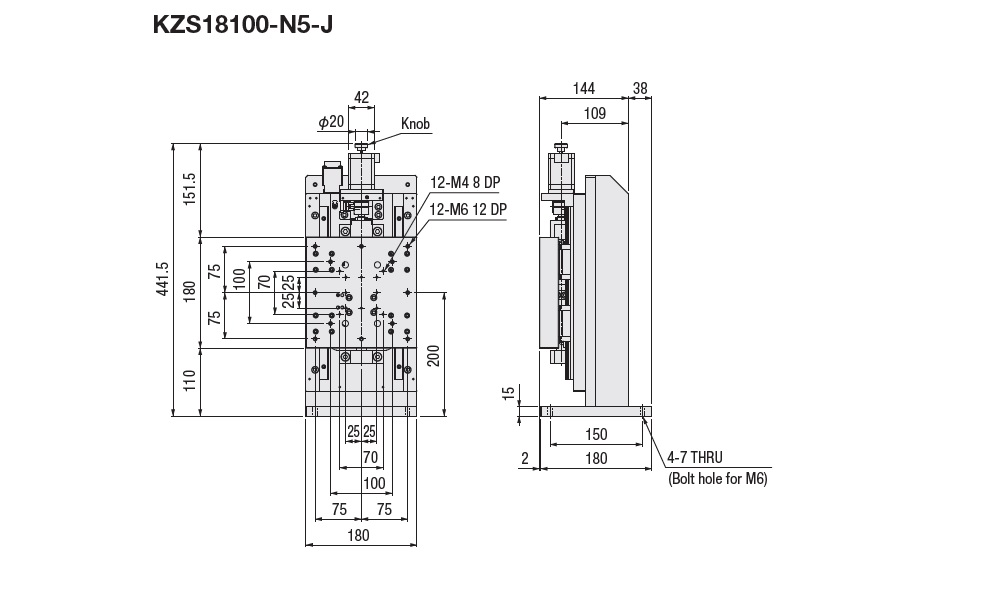

Dimensions (Standard motor)

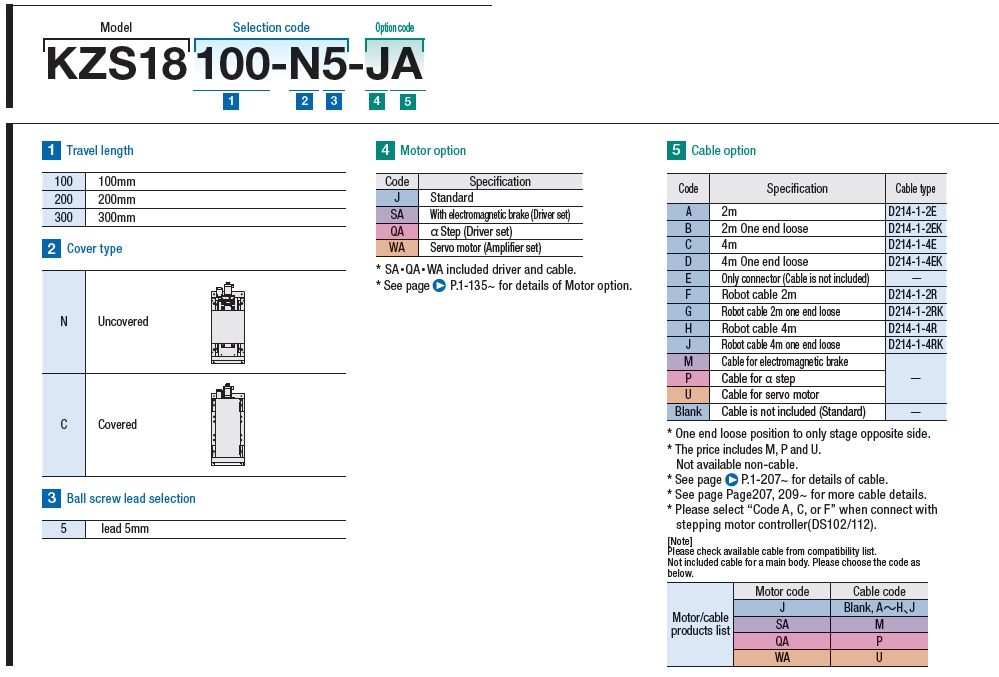

Model configuration/Option code

Electrical specifications/cable connection diagram

Grease change

【Accuracy Guarantee】
＜Grease for Clean room＞
・Since viscous resistance of grease increases, it becomes difficult for this grease to fulfill the same specification of standard grease type described on catalog.
・Furthermore, it tends to have bad tracking of micro-step feeding.
・The guaranteed accuracy value is 1.5 times the stopping performance of the standard grease type.
・Since the CAVE-X series, KXT series, and KXS series are standard for clean environments (AFF), we guarantee the accuracy of the specifications listed on each product page.
【Accuracy Guarantee】
＜Grease for Vacuum＞
・Shipping accuracy may vary due to grease viscous resistance, etc.
・Specs posted on each product introduction page are not guaranteed.
【Grease change spot】
・Guides and bearings (excluding bearings with seals and support units)
・Ball screw

※Ball screw, guide and bearing (bearing without seals only) are processed with coating after cleansing in plant.
※Grease change of stepping motor is not available.
