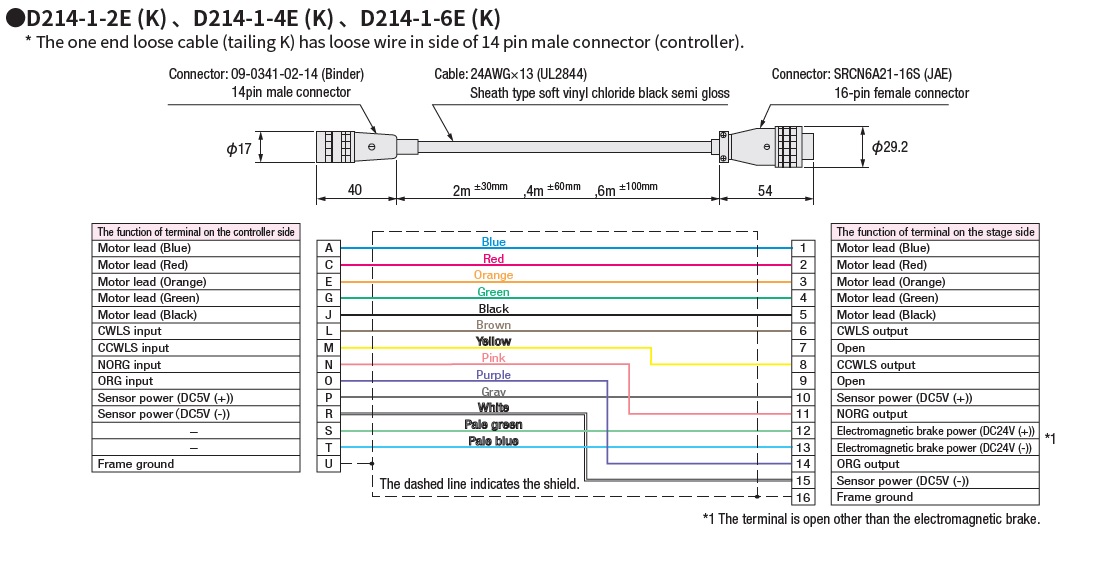

Cable wiring diagram
●When one end is loose, the controller side (left side) of the above cable diagram is a loose wire.
●The sensor power supply voltage is 5 to 24 V specification ±10%.
●The 5V in the wiring diagram above is for use with our controller.
●The 5V in the wiring diagram above is for use with our controller.
