Motorless X-Axis Stage
【New】
Motorless X-Axis
Linear Ball Guide
:KXG06030V

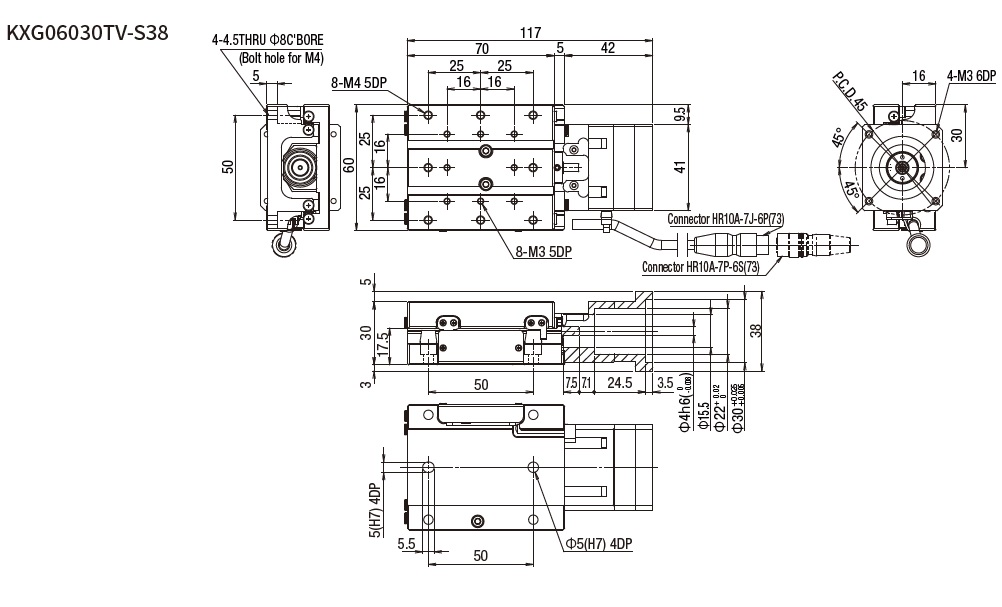

Dimensions

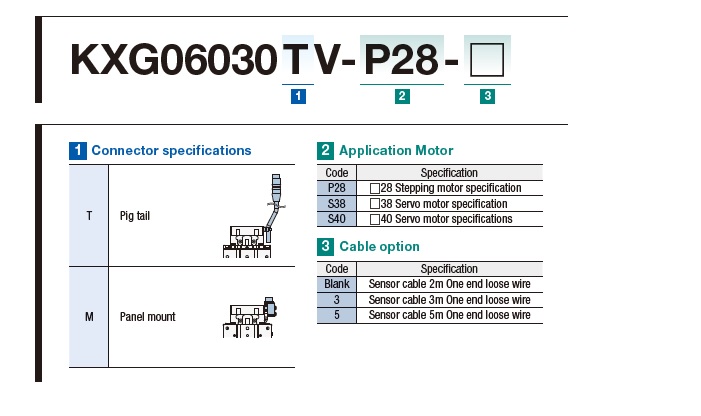

Model configuration/Option code
Precautions for handling motorless products
Spec
Stage surface size60×70mm
Travel distance[mm]30
Load capacity(Horizontal use)[kgf]10
GuideLinear Ball Guide
CoverNone
Ball screw φ diameter
-Lead [mm]		φ8 Lead 1
Motorless: Applicable size□28 Stepping motor specification |□38 Servo motor specification|□40 Servo motor specifications
Main material Special Steel
Electroless nickel plating
Repeatability positioning accuracy
[Within±μm]		0.5
Straightness[Withinμm]3
Option
Connector specifications
Ball screw[Lead mm]
Motorless: Applicable size
MAX Speed[mm/sec]
※ Standard motor spec
Grease change
Accessory cable
Relevant product
Spec List
KXG06030MV-P28 60×70mm 30 10 Linear Ball Guide None Panel mount φ8 Lead 1 □28 Stepping motor specification 20 Standard grease (AFF standard) Special Steel
Electroless nickel plating 		Sensor cable 2m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.7 PART Community
KXG06030MV-P28-3 60×70mm 30 10 Linear Ball Guide None Panel mount φ8 Lead 1 □28 Stepping motor specification 20 Standard grease (AFF standard) Special Steel
Electroless nickel plating 		Sensor cable 3m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.7 PART Community
KXG06030MV-P28-3-K 60×70mm 30 10 Linear Ball Guide None Panel mount φ8 Lead 1 □28 Stepping motor specification 20 LG2(Clean grease) Special Steel
Electroless nickel plating 		Sensor cable 3m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.7 PART Community
KXG06030MV-P28-3-L 60×70mm 30 10 Linear Ball Guide None Panel mount φ8 Lead 1 □28 Stepping motor specification 20 Fomblin YVAC2
(vacuum grease) 		Special Steel
Electroless nickel plating 		Sensor cable 3m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.7 PART Community
KXG06030MV-P28-5 60×70mm 30 10 Linear Ball Guide None Panel mount φ8 Lead 1 □28 Stepping motor specification 20 Standard grease (AFF standard) Special Steel
Electroless nickel plating 		Sensor cable 5m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.7 PART Community
KXG06030MV-P28-5-K 60×70mm 30 10 Linear Ball Guide None Panel mount φ8 Lead 1 □28 Stepping motor specification 20 LG2(Clean grease) Special Steel
Electroless nickel plating 		Sensor cable 5m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.7 PART Community
KXG06030MV-P28-5-L 60×70mm 30 10 Linear Ball Guide None Panel mount φ8 Lead 1 □28 Stepping motor specification 20 Fomblin YVAC2
(vacuum grease) 		Special Steel
Electroless nickel plating 		Sensor cable 5m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.7 PART Community
KXG06030MV-P28-K 60×70mm 30 10 Linear Ball Guide None Panel mount φ8 Lead 1 □28 Stepping motor specification 20 LG2(Clean grease) Special Steel
Electroless nickel plating 		Sensor cable 2m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.7 PART Community
KXG06030MV-P28-L 60×70mm 30 10 Linear Ball Guide None Panel mount φ8 Lead 1 □28 Stepping motor specification 20 Fomblin YVAC2
(vacuum grease) 		Special Steel
Electroless nickel plating 		Sensor cable 2m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.7 PART Community
KXG06030MV-S38 60×70mm 30 10 Linear Ball Guide None Panel mount φ8 Lead 1 □38 Servo motor specification 20 Standard grease (AFF standard) Special Steel
Electroless nickel plating 		Sensor cable 2m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.74
KXG06030MV-S38-3 60×70mm 30 10 Linear Ball Guide None Panel mount φ8 Lead 1 □38 Servo motor specification 20 Standard grease (AFF standard) Special Steel
Electroless nickel plating 		Sensor cable 3m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.74
KXG06030MV-S38-3-K 60×70mm 30 10 Linear Ball Guide None Panel mount φ8 Lead 1 □38 Servo motor specification 20 LG2(Clean grease) Special Steel
Electroless nickel plating 		Sensor cable 3m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.74
KXG06030MV-S38-3-L 60×70mm 30 10 Linear Ball Guide None Panel mount φ8 Lead 1 □38 Servo motor specification 20 Fomblin YVAC2
(vacuum grease) 		Special Steel
Electroless nickel plating 		Sensor cable 3m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.74
KXG06030MV-S38-5 60×70mm 30 10 Linear Ball Guide None Panel mount φ8 Lead 1 □38 Servo motor specification 20 Standard grease (AFF standard) Special Steel
Electroless nickel plating 		Sensor cable 5m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.74
KXG06030MV-S38-5-K 60×70mm 30 10 Linear Ball Guide None Panel mount φ8 Lead 1 □38 Servo motor specification 20 LG2(Clean grease) Special Steel
Electroless nickel plating 		Sensor cable 5m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.74
KXG06030MV-S38-5-L 60×70mm 30 10 Linear Ball Guide None Panel mount φ8 Lead 1 □38 Servo motor specification 20 Fomblin YVAC2
(vacuum grease) 		Special Steel
Electroless nickel plating 		Sensor cable 5m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.74
KXG06030MV-S38-K 60×70mm 30 10 Linear Ball Guide None Panel mount φ8 Lead 1 □38 Servo motor specification 20 LG2(Clean grease) Special Steel
Electroless nickel plating 		Sensor cable 2m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.74
KXG06030MV-S38-L 60×70mm 30 10 Linear Ball Guide None Panel mount φ8 Lead 1 □38 Servo motor specification 20 Fomblin YVAC2
(vacuum grease) 		Special Steel
Electroless nickel plating 		Sensor cable 2m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.74
KXG06030MV-S40 60×70mm 30 10 Linear Ball Guide None Panel mount φ8 Lead 1 □40 Servo motor specifications 20 Standard grease (AFF standard) Special Steel
Electroless nickel plating 		Sensor cable 2m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.74
KXG06030MV-S40-3 60×70mm 30 10 Linear Ball Guide None Panel mount φ8 Lead 1 □40 Servo motor specifications 20 Standard grease (AFF standard) Special Steel
Electroless nickel plating 		Sensor cable 3m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.74
KXG06030MV-S40-3-K 60×70mm 30 10 Linear Ball Guide None Panel mount φ8 Lead 1 □40 Servo motor specifications 20 LG2(Clean grease) Special Steel
Electroless nickel plating 		Sensor cable 3m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.74
KXG06030MV-S40-3-L 60×70mm 30 10 Linear Ball Guide None Panel mount φ8 Lead 1 □40 Servo motor specifications 20 Fomblin YVAC2
(vacuum grease) 		Special Steel
Electroless nickel plating 		Sensor cable 3m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.74
KXG06030MV-S40-5 60×70mm 30 10 Linear Ball Guide None Panel mount φ8 Lead 1 □40 Servo motor specifications 20 Standard grease (AFF standard) Special Steel
Electroless nickel plating 		Sensor cable 5m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.74
KXG06030MV-S40-5-K 60×70mm 30 10 Linear Ball Guide None Panel mount φ8 Lead 1 □40 Servo motor specifications 20 LG2(Clean grease) Special Steel
Electroless nickel plating 		Sensor cable 5m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.74
KXG06030MV-S40-5-L 60×70mm 30 10 Linear Ball Guide None Panel mount φ8 Lead 1 □40 Servo motor specifications 20 Fomblin YVAC2
(vacuum grease) 		Special Steel
Electroless nickel plating 		Sensor cable 5m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.74
KXG06030MV-S40-K 60×70mm 30 10 Linear Ball Guide None Panel mount φ8 Lead 1 □40 Servo motor specifications 20 LG2(Clean grease) Special Steel
Electroless nickel plating 		Sensor cable 2m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.74
KXG06030MV-S40-L 60×70mm 30 10 Linear Ball Guide None Panel mount φ8 Lead 1 □40 Servo motor specifications 20 Fomblin YVAC2
(vacuum grease) 		Special Steel
Electroless nickel plating 		Sensor cable 2m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.74
KXG06030TV-P28 60×70mm 30 10 Linear Ball Guide None Pig tail φ8 Lead 1 □28 Stepping motor specification 20 Standard grease (AFF standard) Special Steel
Electroless nickel plating 		Sensor cable 2m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.7 PART Community
KXG06030TV-P28-3 60×70mm 30 10 Linear Ball Guide None Pig tail φ8 Lead 1 □28 Stepping motor specification 20 Standard grease (AFF standard) Special Steel
Electroless nickel plating 		Sensor cable 3m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.7 PART Community
KXG06030TV-P28-3-K 60×70mm 30 10 Linear Ball Guide None Pig tail φ8 Lead 1 □28 Stepping motor specification 20 LG2(Clean grease) Special Steel
Electroless nickel plating 		Sensor cable 3m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.7 PART Community
KXG06030TV-P28-3-L 60×70mm 30 10 Linear Ball Guide None Pig tail φ8 Lead 1 □28 Stepping motor specification 20 Fomblin YVAC2
(vacuum grease) 		Special Steel
Electroless nickel plating 		Sensor cable 3m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.7 PART Community
KXG06030TV-P28-5 60×70mm 30 10 Linear Ball Guide None Pig tail φ8 Lead 1 □28 Stepping motor specification 20 Standard grease (AFF standard) Special Steel
Electroless nickel plating 		Sensor cable 5m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.7 PART Community
KXG06030TV-P28-5-K 60×70mm 30 10 Linear Ball Guide None Pig tail φ8 Lead 1 □28 Stepping motor specification 20 LG2(Clean grease) Special Steel
Electroless nickel plating 		Sensor cable 5m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.7 PART Community
KXG06030TV-P28-5-L 60×70mm 30 10 Linear Ball Guide None Pig tail φ8 Lead 1 □28 Stepping motor specification 20 Fomblin YVAC2
(vacuum grease) 		Special Steel
Electroless nickel plating 		Sensor cable 5m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.7 PART Community
KXG06030TV-P28-K 60×70mm 30 10 Linear Ball Guide None Pig tail φ8 Lead 1 □28 Stepping motor specification 20 LG2(Clean grease) Special Steel
Electroless nickel plating 		Sensor cable 2m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.7 PART Community
KXG06030TV-P28-L 60×70mm 30 10 Linear Ball Guide None Pig tail φ8 Lead 1 □28 Stepping motor specification 20 Fomblin YVAC2
(vacuum grease) 		Special Steel
Electroless nickel plating 		Sensor cable 2m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.7 PART Community
KXG06030TV-S38 60×70mm 30 10 Linear Ball Guide None Pig tail φ8 Lead 1 □38 Servo motor specification 20 Standard grease (AFF standard) Special Steel
Electroless nickel plating 		Sensor cable 2m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.74
KXG06030TV-S38-3 60×70mm 30 10 Linear Ball Guide None Pig tail φ8 Lead 1 □38 Servo motor specification 20 Standard grease (AFF standard) Special Steel
Electroless nickel plating 		Sensor cable 3m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.74
KXG06030TV-S38-3-K 60×70mm 30 10 Linear Ball Guide None Pig tail φ8 Lead 1 □38 Servo motor specification 20 LG2(Clean grease) Special Steel
Electroless nickel plating 		Sensor cable 3m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.74
KXG06030TV-S38-3-L 60×70mm 30 10 Linear Ball Guide None Pig tail φ8 Lead 1 □38 Servo motor specification 20 Fomblin YVAC2
(vacuum grease) 		Special Steel
Electroless nickel plating 		Sensor cable 3m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.74
KXG06030TV-S38-5 60×70mm 30 10 Linear Ball Guide None Pig tail φ8 Lead 1 □38 Servo motor specification 20 Standard grease (AFF standard) Special Steel
Electroless nickel plating 		Sensor cable 5m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.74
KXG06030TV-S38-5-K 60×70mm 30 10 Linear Ball Guide None Pig tail φ8 Lead 1 □38 Servo motor specification 20 LG2(Clean grease) Special Steel
Electroless nickel plating 		Sensor cable 5m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.74
KXG06030TV-S38-5-L 60×70mm 30 10 Linear Ball Guide None Pig tail φ8 Lead 1 □38 Servo motor specification 20 Fomblin YVAC2
(vacuum grease) 		Special Steel
Electroless nickel plating 		Sensor cable 5m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.74
KXG06030TV-S38-K 60×70mm 30 10 Linear Ball Guide None Pig tail φ8 Lead 1 □38 Servo motor specification 20 LG2(Clean grease) Special Steel
Electroless nickel plating 		Sensor cable 2m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.74
KXG06030TV-S38-L 60×70mm 30 10 Linear Ball Guide None Pig tail φ8 Lead 1 □38 Servo motor specification 20 Fomblin YVAC2
(vacuum grease) 		Special Steel
Electroless nickel plating 		Sensor cable 2m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.74
KXG06030TV-S40 60×70mm 30 10 Linear Ball Guide None Pig tail φ8 Lead 1 □40 Servo motor specifications 20 Standard grease (AFF standard) Special Steel
Electroless nickel plating 		Sensor cable 2m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.74
KXG06030TV-S40-3 60×70mm 30 10 Linear Ball Guide None Pig tail φ8 Lead 1 □40 Servo motor specifications 20 Standard grease (AFF standard) Special Steel
Electroless nickel plating 		Sensor cable 3m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.74
KXG06030TV-S40-3-K 60×70mm 30 10 Linear Ball Guide None Pig tail φ8 Lead 1 □40 Servo motor specifications 20 LG2(Clean grease) Special Steel
Electroless nickel plating 		Sensor cable 3m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.74
KXG06030TV-S40-3-L 60×70mm 30 10 Linear Ball Guide None Pig tail φ8 Lead 1 □40 Servo motor specifications 20 Fomblin YVAC2
(vacuum grease) 		Special Steel
Electroless nickel plating 		Sensor cable 3m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.74
KXG06030TV-S40-5 60×70mm 30 10 Linear Ball Guide None Pig tail φ8 Lead 1 □40 Servo motor specifications 20 Standard grease (AFF standard) Special Steel
Electroless nickel plating 		Sensor cable 5m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.74
KXG06030TV-S40-5-K 60×70mm 30 10 Linear Ball Guide None Pig tail φ8 Lead 1 □40 Servo motor specifications 20 LG2(Clean grease) Special Steel
Electroless nickel plating 		Sensor cable 5m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.74
KXG06030TV-S40-5-L 60×70mm 30 10 Linear Ball Guide None Pig tail φ8 Lead 1 □40 Servo motor specifications 20 Fomblin YVAC2
(vacuum grease) 		Special Steel
Electroless nickel plating 		Sensor cable 5m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.74
KXG06030TV-S40-K 60×70mm 30 10 Linear Ball Guide None Pig tail φ8 Lead 1 □40 Servo motor specifications 20 LG2(Clean grease) Special Steel
Electroless nickel plating 		Sensor cable 2m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.74
KXG06030TV-S40-L 60×70mm 30 10 Linear Ball Guide None Pig tail φ8 Lead 1 □40 Servo motor specifications 20 Fomblin YVAC2
(vacuum grease) 		Special Steel
Electroless nickel plating 		Sensor cable 2m One end loose wire 2μm/Pulse(Full-step) 5 0.5 1 3 20 15 0.74
