Motorized Stage
Motorized Rotary Stage
Motorized Rotary Stage
【New】
Rotation Ball Screw
:KRB04017C

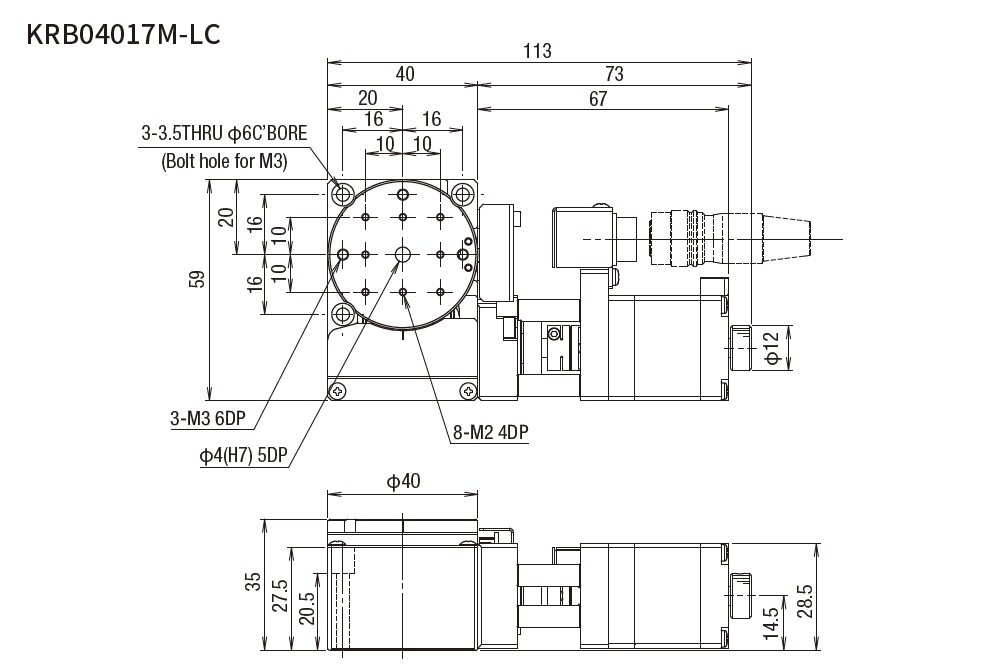

Dimensions
Model configuration/Option code
Spec
Stage surface size [φmm]φ40mm
Travel distance±8.5°
Load capacity[kgf]4
Travel mechanismBall screwφ6Lead1
Main material Aluminum-Black alumite finishing
Motor option2 Phase stepping motor|5 Phase stepping motor
(Standard)|αSTEP (AZ Series)
MAX Speed
[°/sec]		101.5|76.1
Repeatability positioning accuracy
[Within±°]		0.003
Option
【Controller】
DS102/DS112
Motor option
Cable option
Driver (Amplifier)・Cable option
MAX Speed
[°/sec]
Relevant product

Stepping motor
Controller
:DS102

Stepping motor
Controller
:DS112

Handy terminal
: DT100

DS102/112 series
Control software
:DSCONTROL-WIN

For stepping motor
Driver:DC24V

For stepping motor
Driver:AC100V

Motorized Stage cable
:D214-2-N

Motorized Stage cable
:D214-2-R
Spec List
KRB04017M-LC φ40mm Circular ±8.5° 4 Aluminum-Black alumite finishing Supporting 5 Phase stepping motor
(Standard) 		Without cable 101.5 ≒0.0068° 0.003 0.003 0.4 PART Community
KRB04017M-LC-A φ40mm Circular ±8.5° 4 Aluminum-Black alumite finishing Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_2m 101.5 ≒0.0068° 0.003 0.003 0.4 PART Community
KRB04017M-LC-B φ40mm Circular ±8.5° 4 Aluminum-Black alumite finishing Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_2m 101.5 ≒0.0068° 0.003 0.003 0.4 PART Community
KRB04017M-LC-C φ40mm Circular ±8.5° 4 Aluminum-Black alumite finishing Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_4m 101.5 ≒0.0068° 0.003 0.003 0.4 PART Community
KRB04017M-LC-D φ40mm Circular ±8.5° 4 Aluminum-Black alumite finishing Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_4m 101.5 ≒0.0068° 0.003 0.003 0.4 PART Community
KRB04017M-LC-E φ40mm Circular ±8.5° 4 Aluminum-Black alumite finishing Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Connector only (no cable) 101.5 ≒0.0068° 0.003 0.003 0.4 PART Community
KRB04017M-LC-F φ40mm Circular ±8.5° 4 Aluminum-Black alumite finishing Supporting 5 Phase stepping motor
(Standard) 		Robot cable
2m Both end connectors 		101.5 ≒0.0068° 0.003 0.003 0.4 PART Community
KRB04017M-LC-G φ40mm Circular ±8.5° 4 Aluminum-Black alumite finishing Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
2m One end loose wire 		101.5 ≒0.0068° 0.003 0.003 0.4 PART Community
KRB04017M-LC-H φ40mm Circular ±8.5° 4 Aluminum-Black alumite finishing Supporting 5 Phase stepping motor
(Standard) 		Robot cable
4m Both end connectors 		101.5 ≒0.0068° 0.003 0.003 0.4 PART Community
KRB04017M-LC-J φ40mm Circular ±8.5° 4 Aluminum-Black alumite finishing Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
4m One end loose wire 		101.5 ≒0.0068° 0.003 0.003 0.4 PART Community
KRB04017M-LT φ40mm Circular ±8.5° 4 Aluminum-Black alumite finishing Non-supporting 2 Phase stepping motor Without cable 76.1 ≒0.0169° 0.003 0.003 0.4 PART Community
KRB04017M-LT-B φ40mm Circular ±8.5° 4 Aluminum-Black alumite finishing Non-supporting 2 Phase stepping motor One end loose wire_2m 76.1 ≒0.0169° 0.003 0.003 0.4 PART Community
KRB04017M-LT-D φ40mm Circular ±8.5° 4 Aluminum-Black alumite finishing Non-supporting 2 Phase stepping motor One end loose wire_4m 76.1 ≒0.0169° 0.003 0.003 0.4 PART Community
KRB04017M-LT-G φ40mm Circular ±8.5° 4 Aluminum-Black alumite finishing Non-supporting 2 Phase stepping motor Robot cable
2m One end loose wire 		76.1 ≒0.0169° 0.003 0.003 0.4 PART Community
KRB04017M-LT-J φ40mm Circular ±8.5° 4 Aluminum-Black alumite finishing Non-supporting 2 Phase stepping motor Robot cable
4m One end loose wire 		76.1 ≒0.0169° 0.003 0.003 0.4 PART Community
KRB04017M-LZA φ40mm Circular ±8.5° 4 Aluminum-Black alumite finishing Non-supporting αSTEP (AZ Series) Sensor cable 2m One end loose wire 101.5 ≒0.0034° (1000P/R setting) 0.003 0.003 0.44 PART Community
KRB04017M-LZA-3 φ40mm Circular ±8.5° 4 Aluminum-Black alumite finishing Non-supporting αSTEP (AZ Series) Sensor cable 3m One end loose wire 101.5 ≒0.0034° (1000P/R setting) 0.003 0.003 0.44 PART Community
KRB04017M-LZA-3A φ40mm Circular ±8.5° 4 Aluminum-Black alumite finishing Non-supporting αSTEP (AZ Series) Driver (Amplifier)
Cable set 3m 		101.5 ≒0.0034° (1000P/R setting) 0.003 0.003 0.44 PART Community
KRB04017M-LZA-5 φ40mm Circular ±8.5° 4 Aluminum-Black alumite finishing Non-supporting αSTEP (AZ Series) Sensor cable 5m One end loose wire 101.5 ≒0.0034° (1000P/R setting) 0.003 0.003 0.44 PART Community
KRB04017M-LZA-5A φ40mm Circular ±8.5° 4 Aluminum-Black alumite finishing Non-supporting αSTEP (AZ Series) Driver (Amplifier)
Cable set 5m 		101.5 ≒0.0034° (1000P/R setting) 0.003 0.003 0.44 PART Community
