XYZ-Axis Motorized Stage
【New】
XYZ-Axis
Linear Ball Guide
:PMZG615

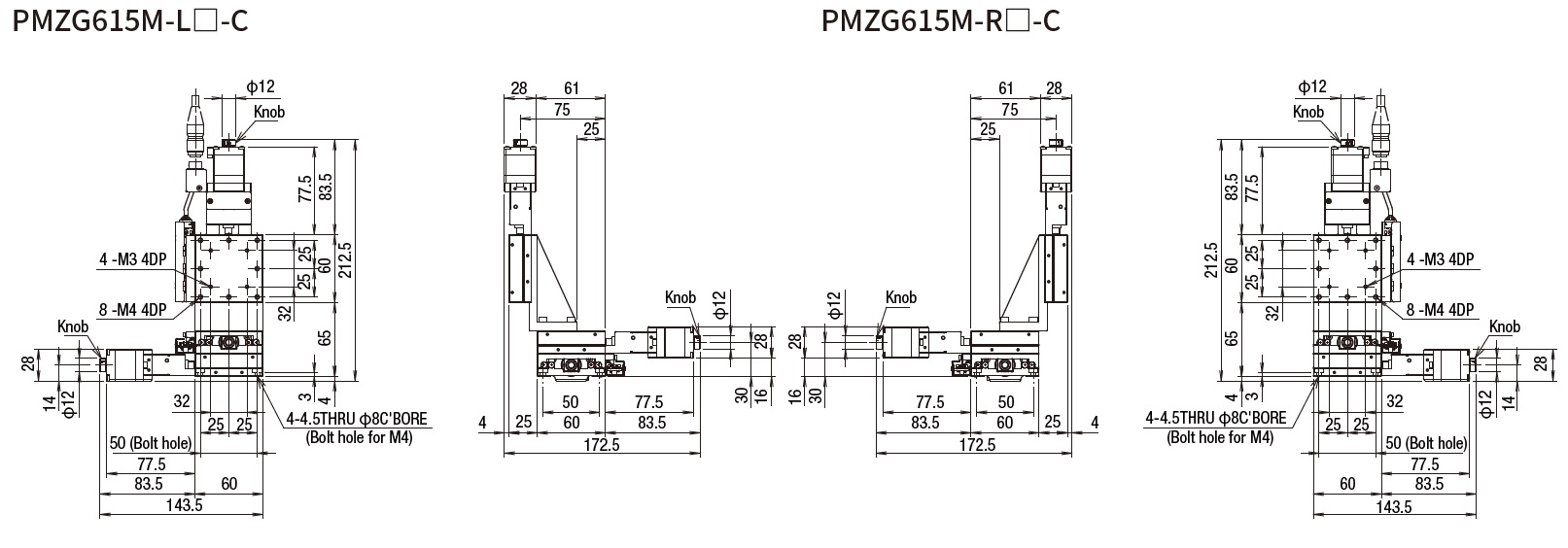

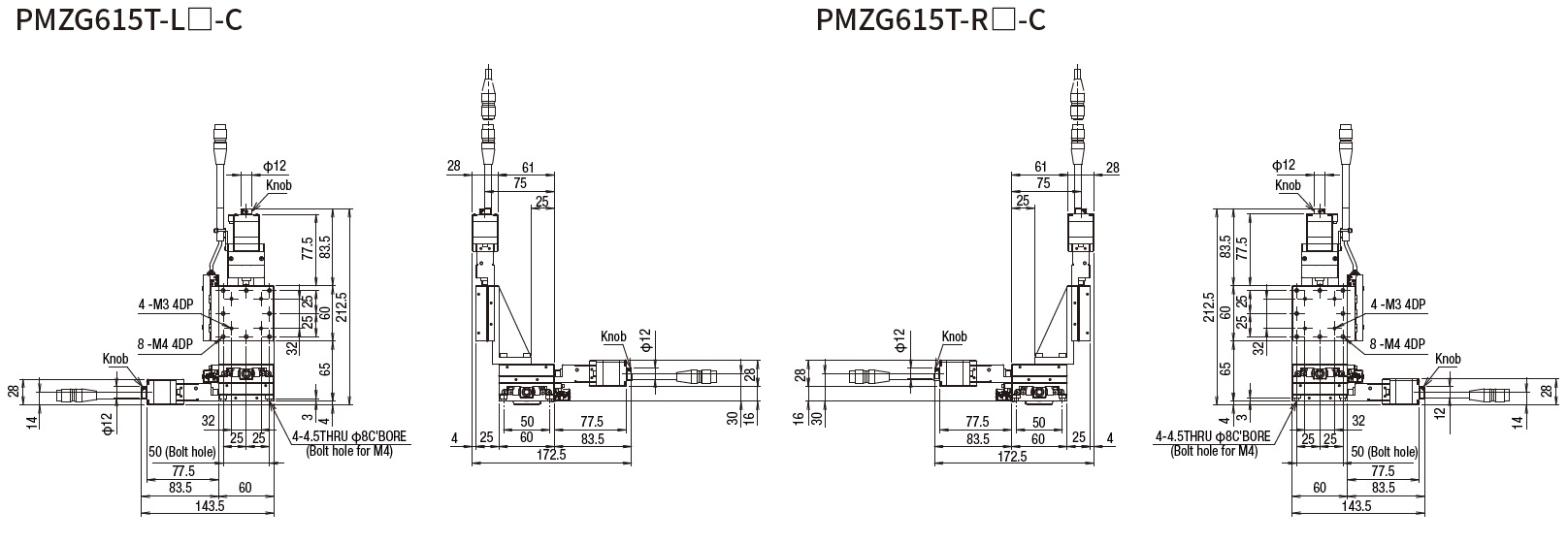

Dimensions (Standard motor)
Model configuration/Option code
Grease change

【Accuracy Guarantee】
＜Grease for Clean room＞
・Since viscous resistance of grease increases, it becomes difficult for this grease to fulfill the same specification of standard grease type described on catalog.
・Furthermore, it tends to have bad tracking of micro-step feeding.
・The guaranteed accuracy value is 1.5 times the stopping performance of the standard grease type.
・Since the CAVE-X series, KXT series, and KXS series are standard for clean environments (AFF), we guarantee the accuracy of the specifications listed on each product page.

【Accuracy Guarantee】
＜Grease for Vacuum＞
・Shipping accuracy may vary due to grease viscous resistance, etc.
・Specs posted on each product introduction page are not guaranteed.
Spec
Stage surface size60×60mm
Travel distance[mm]15
Load capacity[kgf]5
GuideLinear Ball Guide
Main material Stainless steel
-Electroless nickel plating
MAX Speed
[mm/sec]		10～50
Single axis accuracy specification
Repeatability positioning accuracy
[Within ±μm]		0.5
Single axis accuracy specification
Straightness[Withinμm]		1
Option
Ball screw[Lead mm]
Connector specifications
Sensor cover position
Sensor logic
【Controller】
DS102/DS112
Motor option
Cable option
Driver (Amplifier)・Cable option
Sensor option
Grease change
MAX Speed
[mm/sec]
Relevant product

Stepping motor
Controller
:DS102

Stepping motor
Controller
:DS112

Handy terminal
: DT100

DS102/112 series
Control software
:DSCONTROL-WIN

For stepping motor
Driver:DC24V

For stepping motor
Driver:AC100V

Motorized Stage cable
:D214-2-N

Motorized Stage cable
:D214-2-R

Motorized Stage cable
:D214-2-NA

Motorized Stage cable
:D214-2-RA
Spec List
PMZG615M-LA-C 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Without cable 3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-C4 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Without cable 4 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-LA-C4-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Without cable 4 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-LA-C4-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Without cable 4 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-LA-C4-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Without cable 4 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-LA-CA 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_2m 3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-CA-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_2m 3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-CA-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_2m 3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-CA-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_2m 3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-CB 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_2m 3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-CB-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_2m 3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-CB-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_2m 3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-CB-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_2m 3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-CC 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_4m 3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-CC-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_4m 3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-CC-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_4m 3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-CC-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_4m 3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-CD 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_4m 3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-CD-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_4m 3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-CD-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_4m 3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-CD-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_4m 3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-CE 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Connector only (no cable) 3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-CE-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Connector only (no cable) 3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-CE-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Connector only (no cable) 3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-CE-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Connector only (no cable) 3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-CF 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Robot cable
2m Both end connectors 		3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-CF-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Robot cable
2m Both end connectors 		3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-CF-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Robot cable
2m Both end connectors 		3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-CF-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Robot cable
2m Both end connectors 		3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-CG 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
2m One end loose wire 		3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-CG-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
2m One end loose wire 		3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-CG-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
2m One end loose wire 		3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-CG-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
2m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-CH 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Robot cable
4m Both end connectors 		3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-CH-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Robot cable
4m Both end connectors 		3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-CH-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Robot cable
4m Both end connectors 		3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-CH-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Robot cable
4m Both end connectors 		3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-CJ 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
4m One end loose wire 		3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-C-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Without cable 3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-CJ-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
4m One end loose wire 		3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-CJ-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
4m One end loose wire 		3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-CJ-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
4m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-C-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Without cable 3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-C-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Without cable 3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-D 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Without cable 3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-D4 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Without cable 4 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.73 PART Community
PMZG615M-LA-D4-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Without cable 4 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.73 PART Community
PMZG615M-LA-D4-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Without cable 4 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.73 PART Community
PMZG615M-LA-D4-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Without cable 4 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.73 PART Community
PMZG615M-LA-DA 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_2m 3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-DA-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_2m 3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-DA-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_2m 3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-DA-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_2m 3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-DB 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_2m 3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-DB-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_2m 3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-DB-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_2m 3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-DB-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_2m 3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-DC 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_4m 3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-DC-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_4m 3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-DC-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_4m 3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-DC-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_4m 3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-DD 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_4m 3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-DD-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_4m 3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-DD-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_4m 3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-DD-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_4m 3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-DE 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Connector only (no cable) 3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-DE-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Connector only (no cable) 3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-DE-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Connector only (no cable) 3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-DE-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Connector only (no cable) 3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-DF 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
2m Both end connectors 		3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-DF-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
2m Both end connectors 		3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-DF-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
2m Both end connectors 		3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-DF-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
2m Both end connectors 		3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-DG 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
2m One end loose wire 		3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-DG-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
2m One end loose wire 		3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-DG-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
2m One end loose wire 		3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-DG-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
2m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-DH 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
4m Both end connectors 		3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-DH-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
4m Both end connectors 		3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-DH-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
4m Both end connectors 		3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-DH-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
4m Both end connectors 		3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-DJ 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
4m One end loose wire 		3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-D-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Without cable 3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-DJ-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
4m One end loose wire 		3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-DJ-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
4m One end loose wire 		3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-DJ-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
4m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-D-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Without cable 3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-D-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Without cable 3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LA-E 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Without cable 3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-E4 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Without cable 4 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-LA-E4-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Without cable 4 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-LA-E4-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Without cable 4 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-LA-E4-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Without cable 4 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-LA-EA 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_2m 3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-EA-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_2m 3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-EA-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_2m 3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-EA-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_2m 3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-EB 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_2m 3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-EB-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_2m 3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-EB-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_2m 3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-EB-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_2m 3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-EC 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_4m 3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-EC-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_4m 3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-EC-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_4m 3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-EC-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_4m 3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-ED 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_4m 3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-ED-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_4m 3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-ED-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_4m 3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-ED-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_4m 3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-EE 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Connector only (no cable) 3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-EE-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Connector only (no cable) 3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-EE-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Connector only (no cable) 3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-EE-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Connector only (no cable) 3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-EF 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
2m Both end connectors 		3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-EF-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
2m Both end connectors 		3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-EF-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
2m Both end connectors 		3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-EF-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
2m Both end connectors 		3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-EG 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
2m One end loose wire 		3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-EG-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
2m One end loose wire 		3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-EG-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
2m One end loose wire 		3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-EG-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
2m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-EH 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
4m Both end connectors 		3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-EH-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
4m Both end connectors 		3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-EH-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
4m Both end connectors 		3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-EH-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
4m Both end connectors 		3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-EJ 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
4m One end loose wire 		3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-E-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Without cable 3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-EJ-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
4m One end loose wire 		3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-EJ-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
4m One end loose wire 		3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-EJ-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
4m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-E-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Without cable 3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-E-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Without cable 3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-T 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Non-supporting 2 Phase stepping motor Without cable 3 sensor Standard grease 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-TB 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Non-supporting 2 Phase stepping motor One end loose wire_2m 3 sensor Standard grease 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-TB-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Non-supporting 2 Phase stepping motor One end loose wire_2m 3 sensor AFF(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-TB-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Non-supporting 2 Phase stepping motor One end loose wire_2m 3 sensor LG2(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-TB-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Non-supporting 2 Phase stepping motor One end loose wire_2m 3 sensor Fomblin YVAC2
(vacuum grease) 		10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-TD 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Non-supporting 2 Phase stepping motor One end loose wire_4m 3 sensor Standard grease 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-TD-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Non-supporting 2 Phase stepping motor One end loose wire_4m 3 sensor AFF(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-TD-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Non-supporting 2 Phase stepping motor One end loose wire_4m 3 sensor LG2(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-TD-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Non-supporting 2 Phase stepping motor One end loose wire_4m 3 sensor Fomblin YVAC2
(vacuum grease) 		10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-TG 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Non-supporting 2 Phase stepping motor Robot cable
2m One end loose wire 		3 sensor Standard grease 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-TG-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Non-supporting 2 Phase stepping motor Robot cable
2m One end loose wire 		3 sensor AFF(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-TG-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Non-supporting 2 Phase stepping motor Robot cable
2m One end loose wire 		3 sensor LG2(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-TG-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Non-supporting 2 Phase stepping motor Robot cable
2m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-TJ 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Non-supporting 2 Phase stepping motor Robot cable
4m One end loose wire 		3 sensor Standard grease 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-T-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Non-supporting 2 Phase stepping motor Without cable 3 sensor AFF(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-TJ-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Non-supporting 2 Phase stepping motor Robot cable
4m One end loose wire 		3 sensor AFF(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-TJ-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Non-supporting 2 Phase stepping motor Robot cable
4m One end loose wire 		3 sensor LG2(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-TJ-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Non-supporting 2 Phase stepping motor Robot cable
4m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-T-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Non-supporting 2 Phase stepping motor Without cable 3 sensor LG2(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LA-T-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.C. Non-supporting 2 Phase stepping motor Without cable 3 sensor Fomblin YVAC2
(vacuum grease) 		10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-C 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Without cable 3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-C4 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Without cable 4 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-LB-C4-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Without cable 4 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-LB-C4-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Without cable 4 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-LB-C4-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Without cable 4 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-LB-CA 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_2m 3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-CA-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_2m 3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-CA-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_2m 3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-CA-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_2m 3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-CB 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_2m 3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-CB-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_2m 3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-CB-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_2m 3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-CB-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_2m 3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-CC 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_4m 3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-CC-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_4m 3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-CC-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_4m 3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-CC-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_4m 3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-CD 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_4m 3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-CD-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_4m 3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-CD-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_4m 3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-CD-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_4m 3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-CE 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Connector only (no cable) 3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-CE-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Connector only (no cable) 3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-CE-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Connector only (no cable) 3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-CE-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Connector only (no cable) 3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-CF 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Robot cable
2m Both end connectors 		3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-CF-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Robot cable
2m Both end connectors 		3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-CF-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Robot cable
2m Both end connectors 		3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-CF-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Robot cable
2m Both end connectors 		3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-CG 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
2m One end loose wire 		3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-CG-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
2m One end loose wire 		3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-CG-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
2m One end loose wire 		3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-CG-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
2m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-CH 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Robot cable
4m Both end connectors 		3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-CH-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Robot cable
4m Both end connectors 		3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-CH-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Robot cable
4m Both end connectors 		3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-CH-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Robot cable
4m Both end connectors 		3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-CJ 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
4m One end loose wire 		3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-C-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Without cable 3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-CJ-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
4m One end loose wire 		3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-CJ-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
4m One end loose wire 		3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-CJ-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
4m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-C-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Without cable 3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-C-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Without cable 3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-D 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Without cable 3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-D4 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Without cable 4 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.73 PART Community
PMZG615M-LB-D4-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Without cable 4 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.73 PART Community
PMZG615M-LB-D4-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Without cable 4 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.73 PART Community
PMZG615M-LB-D4-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Without cable 4 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.73 PART Community
PMZG615M-LB-DA 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_2m 3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-DA-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_2m 3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-DA-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_2m 3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-DA-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_2m 3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-DB 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_2m 3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-DB-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_2m 3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-DB-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_2m 3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-DB-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_2m 3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-DC 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_4m 3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-DC-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_4m 3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-DC-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_4m 3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-DC-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_4m 3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-DD 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_4m 3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-DD-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_4m 3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-DD-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_4m 3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-DD-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_4m 3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-DE 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Connector only (no cable) 3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-DE-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Connector only (no cable) 3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-DE-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Connector only (no cable) 3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-DE-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Connector only (no cable) 3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-DF 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
2m Both end connectors 		3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-DF-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
2m Both end connectors 		3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-DF-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
2m Both end connectors 		3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-DF-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
2m Both end connectors 		3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-DG 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
2m One end loose wire 		3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-DG-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
2m One end loose wire 		3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-DG-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
2m One end loose wire 		3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-DG-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
2m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-DH 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
4m Both end connectors 		3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-DH-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
4m Both end connectors 		3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-DH-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
4m Both end connectors 		3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-DH-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
4m Both end connectors 		3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-DJ 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
4m One end loose wire 		3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-D-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Without cable 3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-DJ-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
4m One end loose wire 		3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-DJ-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
4m One end loose wire 		3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-DJ-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
4m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-D-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Without cable 3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-D-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Without cable 3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LB-E 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Without cable 3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-E4 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Without cable 4 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-LB-E4-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Without cable 4 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-LB-E4-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Without cable 4 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-LB-E4-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Without cable 4 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-LB-EA 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_2m 3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-EA-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_2m 3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-EA-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_2m 3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-EA-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_2m 3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-EB 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_2m 3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-EB-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_2m 3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-EB-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_2m 3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-EB-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_2m 3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-EC 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_4m 3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-EC-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_4m 3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-EC-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_4m 3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-EC-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_4m 3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-ED 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_4m 3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-ED-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_4m 3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-ED-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_4m 3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-ED-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_4m 3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-EE 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Connector only (no cable) 3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-EE-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Connector only (no cable) 3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-EE-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Connector only (no cable) 3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-EE-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Connector only (no cable) 3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-EF 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
2m Both end connectors 		3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-EF-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
2m Both end connectors 		3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-EF-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
2m Both end connectors 		3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-EF-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
2m Both end connectors 		3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-EG 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
2m One end loose wire 		3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-EG-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
2m One end loose wire 		3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-EG-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
2m One end loose wire 		3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-EG-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
2m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-EH 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
4m Both end connectors 		3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-EH-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
4m Both end connectors 		3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-EH-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
4m Both end connectors 		3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-EH-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
4m Both end connectors 		3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-EJ 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
4m One end loose wire 		3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-E-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Without cable 3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-EJ-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
4m One end loose wire 		3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-EJ-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
4m One end loose wire 		3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-EJ-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
4m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-E-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Without cable 3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-E-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Without cable 3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-T 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Non-supporting 2 Phase stepping motor Without cable 3 sensor Standard grease 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-TB 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Non-supporting 2 Phase stepping motor One end loose wire_2m 3 sensor Standard grease 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-TB-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Non-supporting 2 Phase stepping motor One end loose wire_2m 3 sensor AFF(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-TB-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Non-supporting 2 Phase stepping motor One end loose wire_2m 3 sensor LG2(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-TB-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Non-supporting 2 Phase stepping motor One end loose wire_2m 3 sensor Fomblin YVAC2
(vacuum grease) 		10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-TD 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Non-supporting 2 Phase stepping motor One end loose wire_4m 3 sensor Standard grease 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-TD-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Non-supporting 2 Phase stepping motor One end loose wire_4m 3 sensor AFF(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-TD-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Non-supporting 2 Phase stepping motor One end loose wire_4m 3 sensor LG2(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-TD-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Non-supporting 2 Phase stepping motor One end loose wire_4m 3 sensor Fomblin YVAC2
(vacuum grease) 		10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-TG 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Non-supporting 2 Phase stepping motor Robot cable
2m One end loose wire 		3 sensor Standard grease 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-TG-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Non-supporting 2 Phase stepping motor Robot cable
2m One end loose wire 		3 sensor AFF(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-TG-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Non-supporting 2 Phase stepping motor Robot cable
2m One end loose wire 		3 sensor LG2(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-TG-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Non-supporting 2 Phase stepping motor Robot cable
2m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-TJ 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Non-supporting 2 Phase stepping motor Robot cable
4m One end loose wire 		3 sensor Standard grease 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-T-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Non-supporting 2 Phase stepping motor Without cable 3 sensor AFF(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-TJ-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Non-supporting 2 Phase stepping motor Robot cable
4m One end loose wire 		3 sensor AFF(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-TJ-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Non-supporting 2 Phase stepping motor Robot cable
4m One end loose wire 		3 sensor LG2(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-TJ-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Non-supporting 2 Phase stepping motor Robot cable
4m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-T-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Non-supporting 2 Phase stepping motor Without cable 3 sensor LG2(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LB-T-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		All N.O. Non-supporting 2 Phase stepping motor Without cable 3 sensor Fomblin YVAC2
(vacuum grease) 		10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-C 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(Standard) 		Without cable 3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-C4 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor(ORG1):N.O.
Slit sensor(ORG2):N.O. 		Supporting 5 Phase stepping motor
(Standard) 		Without cable 4 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-LC-C4-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor(ORG1):N.O.
Slit sensor(ORG2):N.O. 		Supporting 5 Phase stepping motor
(Standard) 		Without cable 4 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-LC-C4-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor(ORG1):N.O.
Slit sensor(ORG2):N.O. 		Supporting 5 Phase stepping motor
(Standard) 		Without cable 4 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-LC-C4-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor(ORG1):N.O.
Slit sensor(ORG2):N.O. 		Supporting 5 Phase stepping motor
(Standard) 		Without cable 4 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-LC-CA 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_2m 3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-CA-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_2m 3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-CA-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_2m 3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-CA-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_2m 3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-CB 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_2m 3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-CB-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_2m 3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-CB-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_2m 3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-CB-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_2m 3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-CC 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_4m 3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-CC-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_4m 3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-CC-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_4m 3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-CC-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_4m 3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-CD 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_4m 3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-CD-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_4m 3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-CD-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_4m 3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-CD-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_4m 3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-CE 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Connector only (no cable) 3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-CE-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Connector only (no cable) 3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-CE-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Connector only (no cable) 3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-CE-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Connector only (no cable) 3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-CF 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(Standard) 		Robot cable
2m Both end connectors 		3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-CF-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(Standard) 		Robot cable
2m Both end connectors 		3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-CF-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(Standard) 		Robot cable
2m Both end connectors 		3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-CF-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(Standard) 		Robot cable
2m Both end connectors 		3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-CG 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
2m One end loose wire 		3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-CG-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
2m One end loose wire 		3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-CG-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
2m One end loose wire 		3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-CG-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
2m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-CH 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(Standard) 		Robot cable
4m Both end connectors 		3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-CH-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(Standard) 		Robot cable
4m Both end connectors 		3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-CH-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(Standard) 		Robot cable
4m Both end connectors 		3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-CH-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(Standard) 		Robot cable
4m Both end connectors 		3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-CJ 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
4m One end loose wire 		3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-C-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(Standard) 		Without cable 3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-CJ-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
4m One end loose wire 		3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-CJ-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
4m One end loose wire 		3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-CJ-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
4m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-C-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(Standard) 		Without cable 3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-C-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(Standard) 		Without cable 3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-D 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High-torque) 		Without cable 3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-D4 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor(ORG1):N.O.
Slit sensor(ORG2):N.O. 		Supporting 5 Phase stepping motor
(High-torque) 		Without cable 4 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.73 PART Community
PMZG615M-LC-D4-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor(ORG1):N.O.
Slit sensor(ORG2):N.O. 		Supporting 5 Phase stepping motor
(High-torque) 		Without cable 4 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.73 PART Community
PMZG615M-LC-D4-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor(ORG1):N.O.
Slit sensor(ORG2):N.O. 		Supporting 5 Phase stepping motor
(High-torque) 		Without cable 4 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.73 PART Community
PMZG615M-LC-D4-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor(ORG1):N.O.
Slit sensor(ORG2):N.O. 		Supporting 5 Phase stepping motor
(High-torque) 		Without cable 4 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.73 PART Community
PMZG615M-LC-DA 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_2m 3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-DA-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_2m 3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-DA-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_2m 3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-DA-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_2m 3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-DB 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_2m 3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-DB-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_2m 3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-DB-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_2m 3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-DB-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_2m 3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-DC 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_4m 3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-DC-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_4m 3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-DC-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_4m 3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-DC-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_4m 3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-DD 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_4m 3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-DD-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_4m 3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-DD-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_4m 3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-DD-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_4m 3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-DE 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Connector only (no cable) 3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-DE-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Connector only (no cable) 3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-DE-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Connector only (no cable) 3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-DE-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Connector only (no cable) 3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-DF 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
2m Both end connectors 		3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-DF-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
2m Both end connectors 		3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-DF-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
2m Both end connectors 		3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-DF-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
2m Both end connectors 		3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-DG 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
2m One end loose wire 		3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-DG-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
2m One end loose wire 		3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-DG-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
2m One end loose wire 		3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-DG-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
2m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-DH 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
4m Both end connectors 		3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-DH-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
4m Both end connectors 		3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-DH-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
4m Both end connectors 		3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-DH-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
4m Both end connectors 		3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-DJ 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
4m One end loose wire 		3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-D-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High-torque) 		Without cable 3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-DJ-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
4m One end loose wire 		3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-DJ-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
4m One end loose wire 		3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-DJ-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
4m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-D-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High-torque) 		Without cable 3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-D-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High-torque) 		Without cable 3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-LC-E 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High resolution) 		Without cable 3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-E4 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor(ORG1):N.O.
Slit sensor(ORG2):N.O. 		Supporting 5 Phase stepping motor
(High resolution) 		Without cable 4 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-LC-E4-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor(ORG1):N.O.
Slit sensor(ORG2):N.O. 		Supporting 5 Phase stepping motor
(High resolution) 		Without cable 4 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-LC-E4-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor(ORG1):N.O.
Slit sensor(ORG2):N.O. 		Supporting 5 Phase stepping motor
(High resolution) 		Without cable 4 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-LC-E4-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor(ORG1):N.O.
Slit sensor(ORG2):N.O. 		Supporting 5 Phase stepping motor
(High resolution) 		Without cable 4 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-LC-EA 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_2m 3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-EA-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_2m 3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-EA-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_2m 3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-EA-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_2m 3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-EB 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_2m 3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-EB-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_2m 3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-EB-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_2m 3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-EB-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_2m 3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-EC 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_4m 3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-EC-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_4m 3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-EC-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_4m 3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-EC-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_4m 3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-ED 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_4m 3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-ED-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_4m 3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-ED-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_4m 3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-ED-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_4m 3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-EE 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Connector only (no cable) 3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-EE-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Connector only (no cable) 3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-EE-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Connector only (no cable) 3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-EE-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Connector only (no cable) 3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-EF 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
2m Both end connectors 		3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-EF-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
2m Both end connectors 		3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-EF-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
2m Both end connectors 		3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-EF-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
2m Both end connectors 		3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-EG 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
2m One end loose wire 		3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-EG-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
2m One end loose wire 		3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-EG-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
2m One end loose wire 		3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-EG-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
2m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-EH 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
4m Both end connectors 		3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-EH-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
4m Both end connectors 		3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-EH-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
4m Both end connectors 		3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-EH-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
4m Both end connectors 		3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-EJ 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
4m One end loose wire 		3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-E-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High resolution) 		Without cable 3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-EJ-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
4m One end loose wire 		3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-EJ-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
4m One end loose wire 		3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-EJ-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
4m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-E-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High resolution) 		Without cable 3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-E-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Supporting 5 Phase stepping motor
(High resolution) 		Without cable 3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-T 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Non-supporting 2 Phase stepping motor Without cable 3 sensor Standard grease 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-TB 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Non-supporting 2 Phase stepping motor One end loose wire_2m 3 sensor Standard grease 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-TB-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Non-supporting 2 Phase stepping motor One end loose wire_2m 3 sensor AFF(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-TB-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Non-supporting 2 Phase stepping motor One end loose wire_2m 3 sensor LG2(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-TB-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Non-supporting 2 Phase stepping motor One end loose wire_2m 3 sensor Fomblin YVAC2
(vacuum grease) 		10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-TD 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Non-supporting 2 Phase stepping motor One end loose wire_4m 3 sensor Standard grease 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-TD-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Non-supporting 2 Phase stepping motor One end loose wire_4m 3 sensor AFF(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-TD-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Non-supporting 2 Phase stepping motor One end loose wire_4m 3 sensor LG2(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-TD-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Non-supporting 2 Phase stepping motor One end loose wire_4m 3 sensor Fomblin YVAC2
(vacuum grease) 		10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-TG 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Non-supporting 2 Phase stepping motor Robot cable
2m One end loose wire 		3 sensor Standard grease 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-TG-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Non-supporting 2 Phase stepping motor Robot cable
2m One end loose wire 		3 sensor AFF(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-TG-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Non-supporting 2 Phase stepping motor Robot cable
2m One end loose wire 		3 sensor LG2(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-TG-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Non-supporting 2 Phase stepping motor Robot cable
2m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-TJ 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Non-supporting 2 Phase stepping motor Robot cable
4m One end loose wire 		3 sensor Standard grease 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-T-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Non-supporting 2 Phase stepping motor Without cable 3 sensor AFF(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-TJ-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Non-supporting 2 Phase stepping motor Robot cable
4m One end loose wire 		3 sensor AFF(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-TJ-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Non-supporting 2 Phase stepping motor Robot cable
4m One end loose wire 		3 sensor LG2(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-TJ-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Non-supporting 2 Phase stepping motor Robot cable
4m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-T-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Non-supporting 2 Phase stepping motor Without cable 3 sensor LG2(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-LC-T-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount L position
X-Axis:L
Y-Axis:R
Z-Axis:L 		Limit sensor:N.C.
Origin sensor:N.O. 		Non-supporting 2 Phase stepping motor Without cable 3 sensor Fomblin YVAC2
(vacuum grease) 		10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-C 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Without cable 3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-C4 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Without cable 4 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-RA-C4-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Without cable 4 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-RA-C4-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Without cable 4 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-RA-C4-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Without cable 4 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-RA-CA 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_2m 3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-CA-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_2m 3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-CA-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_2m 3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-CA-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_2m 3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-CB 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_2m 3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-CB-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_2m 3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-CB-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_2m 3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-CB-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_2m 3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-CC 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_4m 3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-CC-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_4m 3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-CC-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_4m 3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-CC-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_4m 3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-CD 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_4m 3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-CD-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_4m 3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-CD-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_4m 3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-CD-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_4m 3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-CE 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Connector only (no cable) 3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-CE-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Connector only (no cable) 3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-CE-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Connector only (no cable) 3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-CE-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Connector only (no cable) 3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-CF 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Robot cable
2m Both end connectors 		3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-CF-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Robot cable
2m Both end connectors 		3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-CF-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Robot cable
2m Both end connectors 		3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-CF-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Robot cable
2m Both end connectors 		3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-CG 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
2m One end loose wire 		3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-CG-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
2m One end loose wire 		3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-CG-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
2m One end loose wire 		3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-CG-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
2m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-CH 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Robot cable
4m Both end connectors 		3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-CH-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Robot cable
4m Both end connectors 		3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-CH-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Robot cable
4m Both end connectors 		3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-CH-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Robot cable
4m Both end connectors 		3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-CJ 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
4m One end loose wire 		3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-C-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Without cable 3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-CJ-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
4m One end loose wire 		3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-CJ-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
4m One end loose wire 		3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-CJ-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
4m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-C-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Without cable 3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-C-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(Standard) 		Without cable 3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-D 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Without cable 3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-D4 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Without cable 4 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.73 PART Community
PMZG615M-RA-D4-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Without cable 4 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.73 PART Community
PMZG615M-RA-D4-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Without cable 4 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.73 PART Community
PMZG615M-RA-D4-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Without cable 4 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.73 PART Community
PMZG615M-RA-DA 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_2m 3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-DA-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_2m 3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-DA-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_2m 3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-DA-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_2m 3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-DB 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_2m 3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-DB-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_2m 3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-DB-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_2m 3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-DB-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_2m 3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-DC 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_4m 3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-DC-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_4m 3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-DC-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_4m 3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-DC-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_4m 3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-DD 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_4m 3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-DD-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_4m 3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-DD-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_4m 3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-DD-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_4m 3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-DE 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Connector only (no cable) 3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-DE-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Connector only (no cable) 3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-DE-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Connector only (no cable) 3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-DE-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Connector only (no cable) 3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-DF 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
2m Both end connectors 		3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-DF-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
2m Both end connectors 		3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-DF-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
2m Both end connectors 		3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-DF-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
2m Both end connectors 		3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-DG 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
2m One end loose wire 		3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-DG-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
2m One end loose wire 		3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-DG-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
2m One end loose wire 		3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-DG-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
2m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-DH 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
4m Both end connectors 		3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-DH-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
4m Both end connectors 		3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-DH-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
4m Both end connectors 		3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-DH-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
4m Both end connectors 		3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-DJ 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
4m One end loose wire 		3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-D-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Without cable 3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-DJ-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
4m One end loose wire 		3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-DJ-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
4m One end loose wire 		3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-DJ-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
4m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-D-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Without cable 3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-D-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High-torque) 		Without cable 3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RA-E 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Without cable 3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-E4 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Without cable 4 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-RA-E4-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Without cable 4 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-RA-E4-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Without cable 4 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-RA-E4-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Without cable 4 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-RA-EA 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_2m 3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-EA-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_2m 3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-EA-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_2m 3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-EA-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_2m 3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-EB 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_2m 3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-EB-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_2m 3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-EB-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_2m 3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-EB-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_2m 3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-EC 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_4m 3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-EC-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_4m 3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-EC-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_4m 3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-EC-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_4m 3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-ED 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_4m 3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-ED-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_4m 3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-ED-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_4m 3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-ED-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_4m 3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-EE 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Connector only (no cable) 3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-EE-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Connector only (no cable) 3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-EE-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Connector only (no cable) 3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-EE-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Connector only (no cable) 3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-EF 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
2m Both end connectors 		3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-EF-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
2m Both end connectors 		3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-EF-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
2m Both end connectors 		3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-EF-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
2m Both end connectors 		3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-EG 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
2m One end loose wire 		3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-EG-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
2m One end loose wire 		3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-EG-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
2m One end loose wire 		3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-EG-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
2m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-EH 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
4m Both end connectors 		3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-EH-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
4m Both end connectors 		3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-EH-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
4m Both end connectors 		3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-EH-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
4m Both end connectors 		3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-EJ 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
4m One end loose wire 		3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-E-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Without cable 3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-EJ-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
4m One end loose wire 		3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-EJ-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
4m One end loose wire 		3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-EJ-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
4m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-E-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Without cable 3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-E-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Supporting 5 Phase stepping motor
(High resolution) 		Without cable 3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-T 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Non-supporting 2 Phase stepping motor Without cable 3 sensor Standard grease 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-TB 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Non-supporting 2 Phase stepping motor One end loose wire_2m 3 sensor Standard grease 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-TB-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Non-supporting 2 Phase stepping motor One end loose wire_2m 3 sensor AFF(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-TB-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Non-supporting 2 Phase stepping motor One end loose wire_2m 3 sensor LG2(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-TB-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Non-supporting 2 Phase stepping motor One end loose wire_2m 3 sensor Fomblin YVAC2
(vacuum grease) 		10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-TD 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Non-supporting 2 Phase stepping motor One end loose wire_4m 3 sensor Standard grease 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-TD-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Non-supporting 2 Phase stepping motor One end loose wire_4m 3 sensor AFF(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-TD-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Non-supporting 2 Phase stepping motor One end loose wire_4m 3 sensor LG2(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-TD-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Non-supporting 2 Phase stepping motor One end loose wire_4m 3 sensor Fomblin YVAC2
(vacuum grease) 		10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-TG 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Non-supporting 2 Phase stepping motor Robot cable
2m One end loose wire 		3 sensor Standard grease 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-TG-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Non-supporting 2 Phase stepping motor Robot cable
2m One end loose wire 		3 sensor AFF(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-TG-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Non-supporting 2 Phase stepping motor Robot cable
2m One end loose wire 		3 sensor LG2(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-TG-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Non-supporting 2 Phase stepping motor Robot cable
2m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-TJ 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Non-supporting 2 Phase stepping motor Robot cable
4m One end loose wire 		3 sensor Standard grease 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-T-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Non-supporting 2 Phase stepping motor Without cable 3 sensor AFF(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-TJ-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Non-supporting 2 Phase stepping motor Robot cable
4m One end loose wire 		3 sensor AFF(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-TJ-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Non-supporting 2 Phase stepping motor Robot cable
4m One end loose wire 		3 sensor LG2(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-TJ-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Non-supporting 2 Phase stepping motor Robot cable
4m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-T-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Non-supporting 2 Phase stepping motor Without cable 3 sensor LG2(Clean grease) 10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RA-T-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.C. Non-supporting 2 Phase stepping motor Without cable 3 sensor Fomblin YVAC2
(vacuum grease) 		10 5μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-C 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Without cable 3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-C4 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Without cable 4 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-RB-C4-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Without cable 4 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-RB-C4-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Without cable 4 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-RB-C4-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Without cable 4 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-RB-CA 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_2m 3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-CA-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_2m 3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-CA-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_2m 3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-CA-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_2m 3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-CB 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_2m 3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-CB-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_2m 3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-CB-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_2m 3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-CB-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_2m 3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-CC 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_4m 3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-CC-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_4m 3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-CC-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_4m 3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-CC-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Both end connectors_4m 3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-CD 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_4m 3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-CD-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_4m 3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-CD-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_4m 3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-CD-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		One end loose wire_4m 3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-CE 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Connector only (no cable) 3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-CE-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Connector only (no cable) 3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-CE-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Connector only (no cable) 3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-CE-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Connector only (no cable) 3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-CF 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Robot cable
2m Both end connectors 		3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-CF-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Robot cable
2m Both end connectors 		3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-CF-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Robot cable
2m Both end connectors 		3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-CF-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Robot cable
2m Both end connectors 		3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-CG 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
2m One end loose wire 		3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-CG-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
2m One end loose wire 		3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-CG-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
2m One end loose wire 		3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-CG-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
2m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-CH 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Robot cable
4m Both end connectors 		3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-CH-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Robot cable
4m Both end connectors 		3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-CH-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Robot cable
4m Both end connectors 		3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-CH-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Robot cable
4m Both end connectors 		3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-CJ 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
4m One end loose wire 		3 sensor Standard grease 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-C-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Without cable 3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-CJ-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
4m One end loose wire 		3 sensor AFF(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-CJ-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
4m One end loose wire 		3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-CJ-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
4m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-C-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Without cable 3 sensor LG2(Clean grease) 10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-C-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(Standard) 		Without cable 3 sensor Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-D 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Without cable 3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-D4 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Without cable 4 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.73 PART Community
PMZG615M-RB-D4-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Without cable 4 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.73 PART Community
PMZG615M-RB-D4-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Without cable 4 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.73 PART Community
PMZG615M-RB-D4-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Without cable 4 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.73 PART Community
PMZG615M-RB-DA 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_2m 3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-DA-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_2m 3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-DA-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_2m 3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-DA-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_2m 3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-DB 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_2m 3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-DB-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_2m 3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-DB-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_2m 3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-DB-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_2m 3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-DC 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_4m 3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-DC-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_4m 3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-DC-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_4m 3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-DC-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Both end connectors_4m 3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-DD 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_4m 3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-DD-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_4m 3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-DD-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_4m 3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-DD-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		One end loose wire_4m 3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-DE 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Connector only (no cable) 3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-DE-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Connector only (no cable) 3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-DE-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Connector only (no cable) 3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-DE-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Connector only (no cable) 3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-DF 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
2m Both end connectors 		3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-DF-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
2m Both end connectors 		3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-DF-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
2m Both end connectors 		3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-DF-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
2m Both end connectors 		3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-DG 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
2m One end loose wire 		3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-DG-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
2m One end loose wire 		3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-DG-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
2m One end loose wire 		3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-DG-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
2m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-DH 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
4m Both end connectors 		3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-DH-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
4m Both end connectors 		3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-DH-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
4m Both end connectors 		3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-DH-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Robot cable
4m Both end connectors 		3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-DJ 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
4m One end loose wire 		3 sensor Standard grease 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-D-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Without cable 3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-DJ-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
4m One end loose wire 		3 sensor AFF(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-DJ-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
4m One end loose wire 		3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-DJ-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High-torque) 		Robot cable
4m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-D-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Without cable 3 sensor LG2(Clean grease) 30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-D-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High-torque) 		Without cable 3 sensor Fomblin YVAC2
(vacuum grease) 		30 2μm/Pulse(Full-step) 6 0.5 1 1 15 10 5 2.61 PART Community
PMZG615M-RB-E 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Without cable 3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-E4 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Without cable 4 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-RB-E4-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Without cable 4 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-RB-E4-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Without cable 4 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-RB-E4-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Without cable 4 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.46 PART Community
PMZG615M-RB-EA 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_2m 3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-EA-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_2m 3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-EA-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_2m 3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-EA-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_2m 3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-EB 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_2m 3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-EB-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_2m 3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-EB-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_2m 3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-EB-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_2m 3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-EC 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_4m 3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-EC-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_4m 3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-EC-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_4m 3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-EC-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Both end connectors_4m 3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-ED 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_4m 3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-ED-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_4m 3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-ED-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_4m 3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-ED-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		One end loose wire_4m 3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-EE 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Connector only (no cable) 3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-EE-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Connector only (no cable) 3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-EE-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Connector only (no cable) 3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-EE-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Connector only (no cable) 3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-EF 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
2m Both end connectors 		3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-EF-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
2m Both end connectors 		3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-EF-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
2m Both end connectors 		3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-EF-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
2m Both end connectors 		3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-EG 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
2m One end loose wire 		3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-EG-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
2m One end loose wire 		3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-EG-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
2m One end loose wire 		3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-EG-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
2m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-EH 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
4m Both end connectors 		3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-EH-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
4m Both end connectors 		3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-EH-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
4m Both end connectors 		3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-EH-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Robot cable
4m Both end connectors 		3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-EJ 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
4m One end loose wire 		3 sensor Standard grease 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-E-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Without cable 3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-EJ-J 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
4m One end loose wire 		3 sensor AFF(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-EJ-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
4m One end loose wire 		3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-EJ-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(High resolution) 		Robot cable
4m One end loose wire 		3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-E-K 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Without cable 3 sensor LG2(Clean grease) 25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-E-L 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Supporting 5 Phase stepping motor
(High resolution) 		Without cable 3 sensor Fomblin YVAC2
(vacuum grease) 		25 1μm/pulse(Full-step) 6 0.5 1 1 15 10 5 2.34 PART Community
PMZG615M-RB-T 60×60mm 15 5 φ6 Lead 1 Linear Ball Guide Stainless steel
-Electroless nickel plating 		Panel mount R
X-Axis:R
Y-Axis:L
Z-Axis:R 		All N.O. Non-supporting 2 Phase stepping motor Without cable 3 sensor Standard grease 10 5μm/Pulse(Full-step) 6
