Motorized Stage
X-Axis Motorized Stage
XY-Axis Motorized Stage
Z-Axis Motorized Stage
XYZ-Axis Motorized Stage
Horizonal Z-Axis Stage
XY-Axis Motorized Stage
XY-Axis Cross Roller Guide
:KYC06020

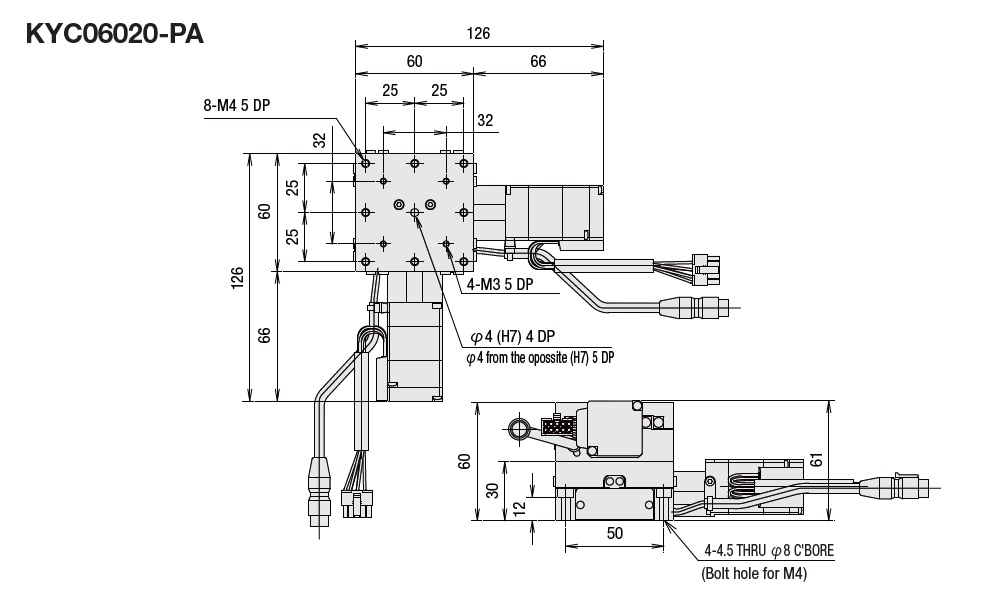

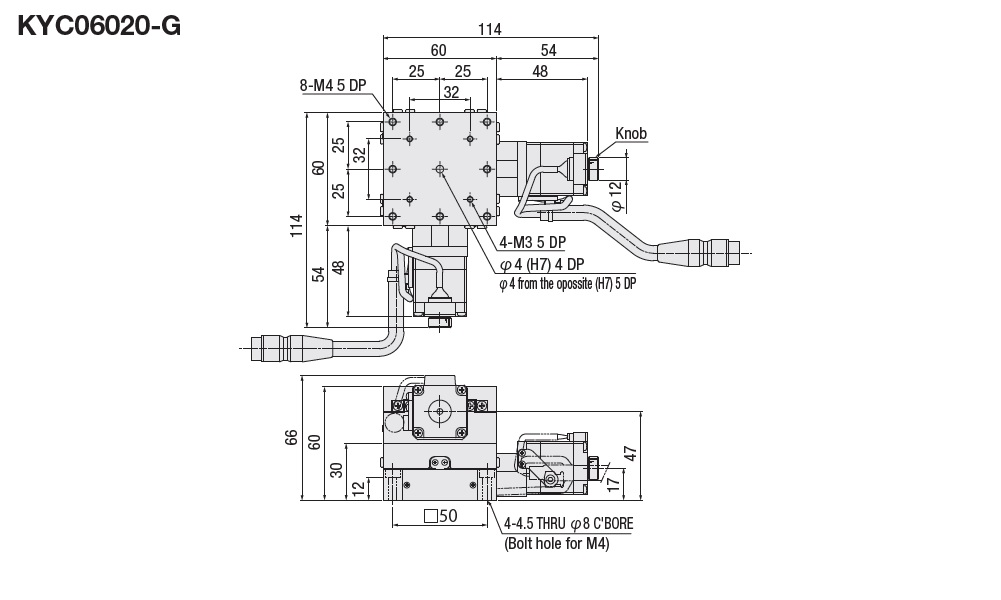

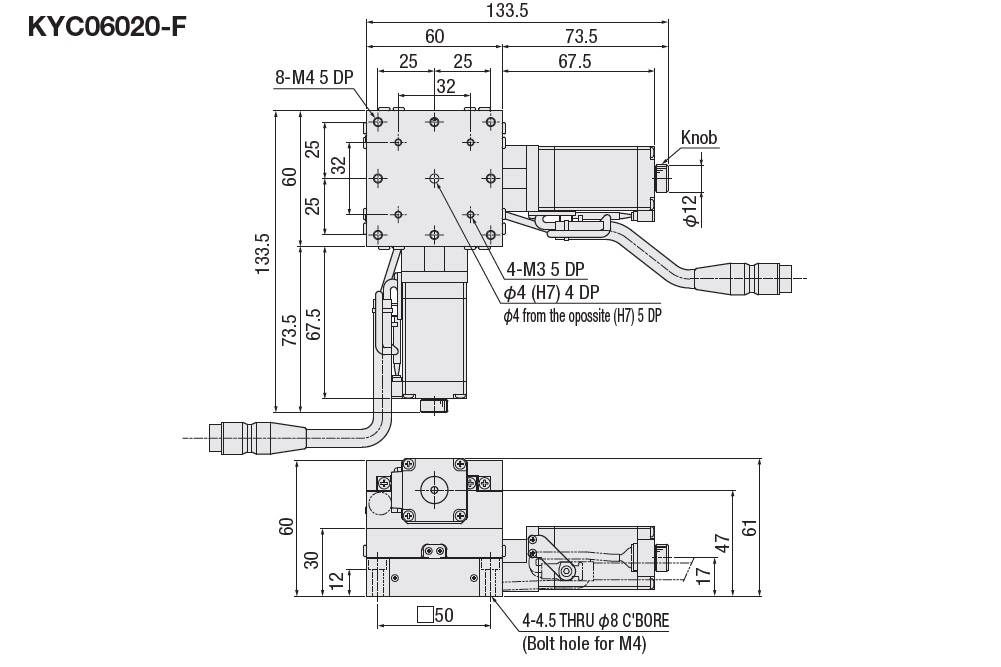

Dimensions

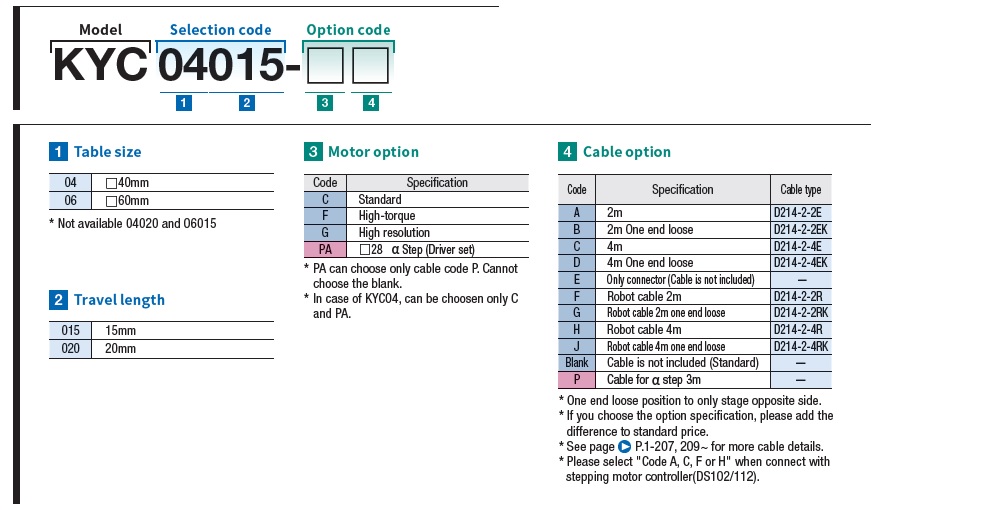

Model configuration/Option code

Stage surface size:60×60mm, the model number will be 「KYC06～」
Electrical specifications/cable connection diagram
Grease change

【Accuracy Guarantee】
＜Grease for Clean room＞
・Since viscous resistance of grease increases, it becomes difficult for this grease to fulfill the same specification of standard grease type described on catalog.
・Furthermore, it tends to have bad tracking of micro-step feeding.
・The guaranteed accuracy value is 1.5 times the stopping performance of the standard grease type.
・Since the CAVE-X series, KXT series, and KXS series are standard for clean environments (AFF), we guarantee the accuracy of the specifications listed on each product page.

【Accuracy Guarantee】
＜Grease for Vacuum＞
・Shipping accuracy may vary due to grease viscous resistance, etc.
・Specs posted on each product introduction page are not guaranteed.

【Grease change spot】
・Guides and bearings (excluding bearings with seals and support units)
・Ball screw

※Ball screw, guide and bearing (bearing without seals only) are processed with coating after cleansing in plant.
※Grease change of stepping motor is not available.
Spec
Stage surface size60×60mm
Travel distance[mm]20
Load capacity[kgf]4.5
GuideCross Roller Guide
Main material Aluminum
-Black alumite finishing
MAX Speed (Horizontal)
[mm/sec]		20
Single axis accuracy specification
Repeatability positioning accuracy
[Within ±μm]		0.2
Single axis accuracy specification
Straightness[Withinμm]		3
Option
Ball screw[Lead mm]
【Controller】
DS102/DS112
Motor option
Cable option
Cable option
For Driver/Amplifier set
Cable kinds
Cable length
Grease change
MAX Speed (Horizontal)
[mm/sec]
Relevant product

Stepping motor
Controller
:DS102

Stepping motor
Controller
:DS112

Handy terminal
: DT100

DS102/112 series
Control software
:DSCONTROL-WIN

For stepping motor
Driver:DC24V

For stepping motor
Driver:AC100V

Motorized Stage cable
:D214-2-N

Motorized Stage cable
:D214-2-R
Spec List
KYC06020-C 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(Standard) Without cable Standard grease 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-CA 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(Standard) Standard
2m Both end connectors 		Standard grease 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-CA-J 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(Standard) Standard
2m Both end connectors 		AFF(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-CA-K 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(Standard) Standard
2m Both end connectors 		LG2(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-CA-L 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(Standard) Standard
2m Both end connectors 		Fomblin YVAC2
(vacuum grease) 		20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-CB 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(Standard) Standard cable
2m One end loose wire 		Standard grease 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-CB-J 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(Standard) Standard cable
2m One end loose wire 		AFF(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-CB-K 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(Standard) Standard cable
2m One end loose wire 		LG2(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-CB-L 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(Standard) Standard cable
2m One end loose wire 		Fomblin YVAC2
(vacuum grease) 		20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-CC 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(Standard) Standard
4m Both end connectors 		Standard grease 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-CC-J 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(Standard) Standard
4m Both end connectors 		AFF(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-CC-K 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(Standard) Standard
4m Both end connectors 		LG2(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-CC-L 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(Standard) Standard
4m Both end connectors 		Fomblin YVAC2
(vacuum grease) 		20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-CD 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(Standard) Standard cable
4m One end loose wire 		Standard grease 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-CD-J 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(Standard) Standard cable
4m One end loose wire 		AFF(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-CD-K 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(Standard) Standard cable
4m One end loose wire 		LG2(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-CD-L 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(Standard) Standard cable
4m One end loose wire 		Fomblin YVAC2
(vacuum grease) 		20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-CE 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(Standard) Connector only (no cable) Standard grease 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-CE-J 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(Standard) Connector only (no cable) AFF(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-CE-K 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(Standard) Connector only (no cable) LG2(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-CE-L 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(Standard) Connector only (no cable) Fomblin YVAC2
(vacuum grease) 		20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-CF 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(Standard) Robot cable
2m Both end connectors 		Standard grease 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-CF-J 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(Standard) Robot cable
2m Both end connectors 		AFF(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-CF-K 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(Standard) Robot cable
2m Both end connectors 		LG2(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-CF-L 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(Standard) Robot cable
2m Both end connectors 		Fomblin YVAC2
(vacuum grease) 		20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-CG 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(Standard) Robot cable
2m One end loose wire 		Standard grease 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-CG-J 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(Standard) Robot cable
2m One end loose wire 		AFF(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-CG-K 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(Standard) Robot cable
2m One end loose wire 		LG2(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-CG-L 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(Standard) Robot cable
2m One end loose wire 		Fomblin YVAC2
(vacuum grease) 		20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-CH 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(Standard) Robot cable
4m Both end connectors 		Standard grease 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-CH-J 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(Standard) Robot cable
4m Both end connectors 		AFF(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-CH-K 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(Standard) Robot cable
4m Both end connectors 		LG2(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-CH-L 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(Standard) Robot cable
4m Both end connectors 		Fomblin YVAC2
(vacuum grease) 		20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-CJ 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(Standard) Robot cable
4m One end loose wire 		Standard grease 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-C-J 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(Standard) Without cable AFF(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-CJ-J 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(Standard) Robot cable
4m One end loose wire 		AFF(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-CJ-K 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(Standard) Robot cable
4m One end loose wire 		LG2(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-CJ-L 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(Standard) Robot cable
4m One end loose wire 		Fomblin YVAC2
(vacuum grease) 		20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-C-K 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(Standard) Without cable LG2(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-C-L 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(Standard) Without cable Fomblin YVAC2
(vacuum grease) 		20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-F 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High-torque) Without cable Standard grease 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-FA 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(High-torque) Standard
2m Both end connectors 		Standard grease 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-FA-J 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(High-torque) Standard
2m Both end connectors 		AFF(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-FA-K 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(High-torque) Standard
2m Both end connectors 		LG2(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-FA-L 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(High-torque) Standard
2m Both end connectors 		Fomblin YVAC2
(vacuum grease) 		20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-FB 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High-torque) Standard cable
2m One end loose wire 		Standard grease 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-FB-J 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High-torque) Standard cable
2m One end loose wire 		AFF(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-FB-K 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High-torque) Standard cable
2m One end loose wire 		LG2(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-FB-L 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High-torque) Standard cable
2m One end loose wire 		Fomblin YVAC2
(vacuum grease) 		20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-FC 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(High-torque) Standard
4m Both end connectors 		Standard grease 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-FC-J 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(High-torque) Standard
4m Both end connectors 		AFF(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-FC-K 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(High-torque) Standard
4m Both end connectors 		LG2(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-FC-L 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(High-torque) Standard
4m Both end connectors 		Fomblin YVAC2
(vacuum grease) 		20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-FD 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High-torque) Standard cable
4m One end loose wire 		Standard grease 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-FD-J 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High-torque) Standard cable
4m One end loose wire 		AFF(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-FD-K 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High-torque) Standard cable
4m One end loose wire 		LG2(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-FD-L 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High-torque) Standard cable
4m One end loose wire 		Fomblin YVAC2
(vacuum grease) 		20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-FE 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High-torque) Connector only (no cable) Standard grease 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-FE-J 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High-torque) Connector only (no cable) AFF(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-FE-K 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High-torque) Connector only (no cable) LG2(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-FE-L 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High-torque) Connector only (no cable) Fomblin YVAC2
(vacuum grease) 		20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-FF 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(High-torque) Robot cable
2m Both end connectors 		Standard grease 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-FF-J 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(High-torque) Robot cable
2m Both end connectors 		AFF(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-FF-K 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(High-torque) Robot cable
2m Both end connectors 		LG2(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-FF-L 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(High-torque) Robot cable
2m Both end connectors 		Fomblin YVAC2
(vacuum grease) 		20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-FG 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High-torque) Robot cable
2m One end loose wire 		Standard grease 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-FG-J 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High-torque) Robot cable
2m One end loose wire 		AFF(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-FG-K 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High-torque) Robot cable
2m One end loose wire 		LG2(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-FG-L 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High-torque) Robot cable
2m One end loose wire 		Fomblin YVAC2
(vacuum grease) 		20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-FH 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(High-torque) Robot cable
4m Both end connectors 		Standard grease 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-FH-J 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(High-torque) Robot cable
4m Both end connectors 		AFF(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-FH-K 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(High-torque) Robot cable
4m Both end connectors 		LG2(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-FH-L 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(High-torque) Robot cable
4m Both end connectors 		Fomblin YVAC2
(vacuum grease) 		20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-FJ 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High-torque) Robot cable
4m One end loose wire 		Standard grease 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-F-J 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High-torque) Without cable AFF(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-FJ-J 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High-torque) Robot cable
4m One end loose wire 		AFF(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-FJ-K 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High-torque) Robot cable
4m One end loose wire 		LG2(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-FJ-L 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High-torque) Robot cable
4m One end loose wire 		Fomblin YVAC2
(vacuum grease) 		20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-F-K 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High-torque) Without cable LG2(Clean grease) 20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-F-L 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High-torque) Without cable Fomblin YVAC2
(vacuum grease) 		20 2μm/Pulse(Full-step) 5 0.2 1 3 20 15 10 1.1 PART Community
KYC06020-G 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High resolution) Without cable Standard grease 20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-GA 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(High resolution) Standard
2m Both end connectors 		Standard grease 20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-GA-J 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(High resolution) Standard
2m Both end connectors 		AFF(Clean grease) 20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-GA-K 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(High resolution) Standard
2m Both end connectors 		LG2(Clean grease) 20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-GA-L 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(High resolution) Standard
2m Both end connectors 		Fomblin YVAC2
(vacuum grease) 		20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-GB 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High resolution) Standard cable
2m One end loose wire 		Standard grease 20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-GB-J 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High resolution) Standard cable
2m One end loose wire 		AFF(Clean grease) 20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-GB-K 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High resolution) Standard cable
2m One end loose wire 		LG2(Clean grease) 20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-GB-L 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High resolution) Standard cable
2m One end loose wire 		Fomblin YVAC2
(vacuum grease) 		20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-GC 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(High resolution) Standard
4m Both end connectors 		Standard grease 20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-GC-J 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(High resolution) Standard
4m Both end connectors 		AFF(Clean grease) 20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-GC-K 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(High resolution) Standard
4m Both end connectors 		LG2(Clean grease) 20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-GC-L 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(High resolution) Standard
4m Both end connectors 		Fomblin YVAC2
(vacuum grease) 		20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-GD 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High resolution) Standard cable
4m One end loose wire 		Standard grease 20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-GD-J 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High resolution) Standard cable
4m One end loose wire 		AFF(Clean grease) 20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-GD-K 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High resolution) Standard cable
4m One end loose wire 		LG2(Clean grease) 20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-GD-L 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High resolution) Standard cable
4m One end loose wire 		Fomblin YVAC2
(vacuum grease) 		20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-GE 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High resolution) Connector only (no cable) Standard grease 20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-GE-J 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High resolution) Connector only (no cable) AFF(Clean grease) 20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-GE-K 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High resolution) Connector only (no cable) LG2(Clean grease) 20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-GE-L 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High resolution) Connector only (no cable) Fomblin YVAC2
(vacuum grease) 		20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-GF 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(High resolution) Robot cable
2m Both end connectors 		Standard grease 20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-GF-J 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(High resolution) Robot cable
2m Both end connectors 		AFF(Clean grease) 20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-GF-K 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(High resolution) Robot cable
2m Both end connectors 		LG2(Clean grease) 20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-GF-L 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(High resolution) Robot cable
2m Both end connectors 		Fomblin YVAC2
(vacuum grease) 		20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-GG 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High resolution) Robot cable
2m One end loose wire 		Standard grease 20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-GG-J 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High resolution) Robot cable
2m One end loose wire 		AFF(Clean grease) 20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-GG-K 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High resolution) Robot cable
2m One end loose wire 		LG2(Clean grease) 20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-GG-L 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High resolution) Robot cable
2m One end loose wire 		Fomblin YVAC2
(vacuum grease) 		20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-GH 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(High resolution) Robot cable
4m Both end connectors 		Standard grease 20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-GH-J 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(High resolution) Robot cable
4m Both end connectors 		AFF(Clean grease) 20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-GH-K 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(High resolution) Robot cable
4m Both end connectors 		LG2(Clean grease) 20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-GH-L 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting 5 Phase Step(High resolution) Robot cable
4m Both end connectors 		Fomblin YVAC2
(vacuum grease) 		20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-GJ 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High resolution) Robot cable
4m One end loose wire 		Standard grease 20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-G-J 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High resolution) Without cable AFF(Clean grease) 20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-GJ-J 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High resolution) Robot cable
4m One end loose wire 		AFF(Clean grease) 20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-GJ-K 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High resolution) Robot cable
4m One end loose wire 		LG2(Clean grease) 20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-GJ-L 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High resolution) Robot cable
4m One end loose wire 		Fomblin YVAC2
(vacuum grease) 		20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-G-K 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High resolution) Without cable LG2(Clean grease) 20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-G-L 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Supporting
(requires cable with attached connectors on both ends) 		5 Phase Step(High resolution) Without cable Fomblin YVAC2
(vacuum grease) 		20 1μm/pulse(Full-step) 5 0.2 1 3 20 15 10 0.9 PART Community
KYC06020-PAP 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Non-supporting α step_□28mm Cable for α step Standard grease 20 1μm
1000P/R setting 		5 0.2 1 3 20 15 10 1 PART Community
KYC06020-PAP-J 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Non-supporting α step_□28mm Cable for α step AFF(Clean grease) 20 1μm
1000P/R setting 		5 0.2 1 3 20 15 10 1 PART Community
KYC06020-PAP-K 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Non-supporting α step_□28mm Cable for α step LG2(Clean grease) 20 1μm
1000P/R setting 		5 0.2 1 3 20 15 10 1 PART Community
KYC06020-PAP-L 60×60mm 20 4.5 φ8 Lead 1 Cross Roller Guide Aluminum
-Black alumite finishing 		Non-supporting α step_□28mm Cable for α step Fomblin YVAC2
(vacuum grease) 		20 1μm
1000P/R setting 		5 0.2 1 3 20 15 10 1 PART Community
PAGETOP
