X-Axis Motorized Stage
【New】
X-Axis Linear Ball Guide
:KXT04015

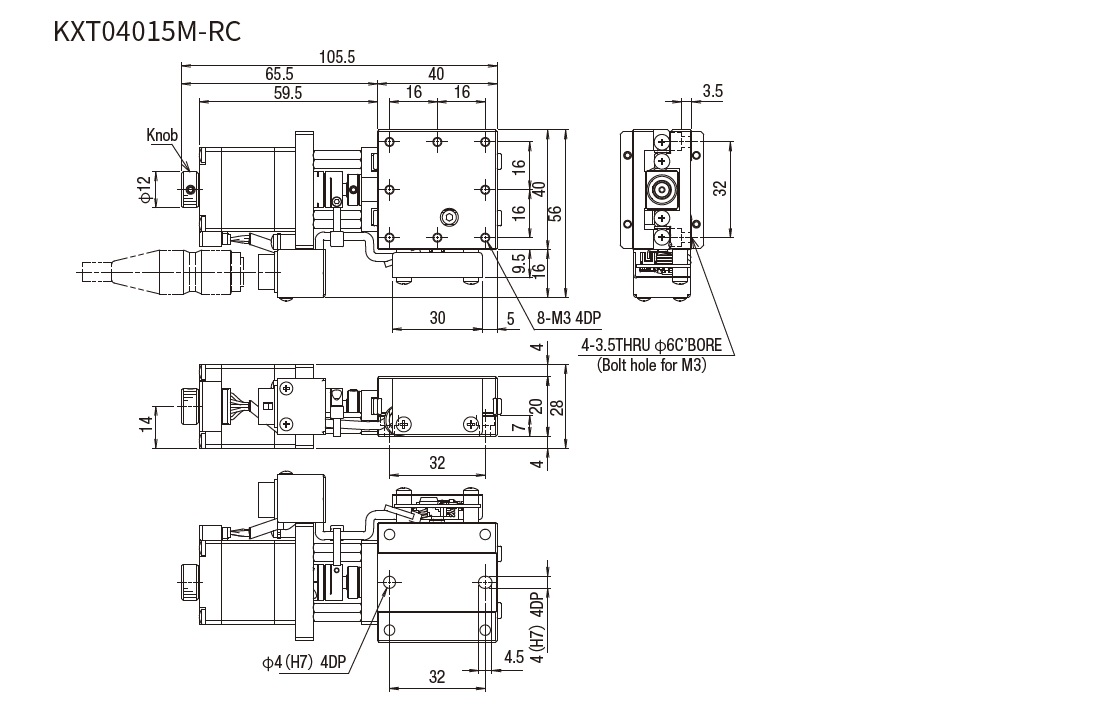

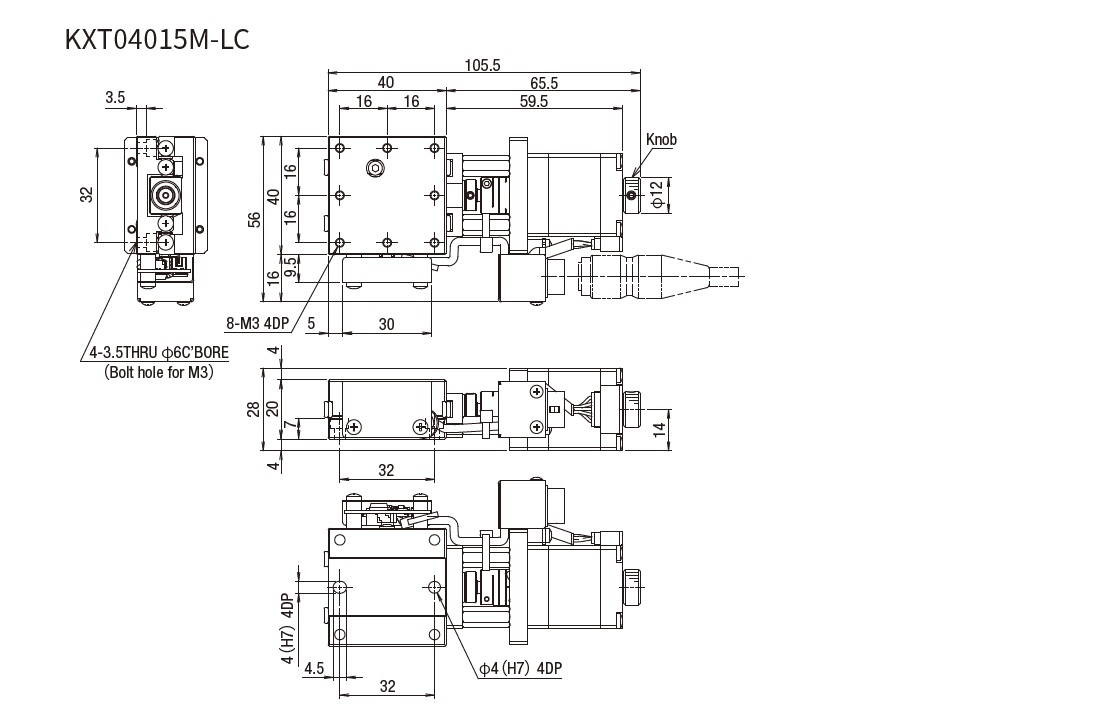

Dimensions (Standard motor)

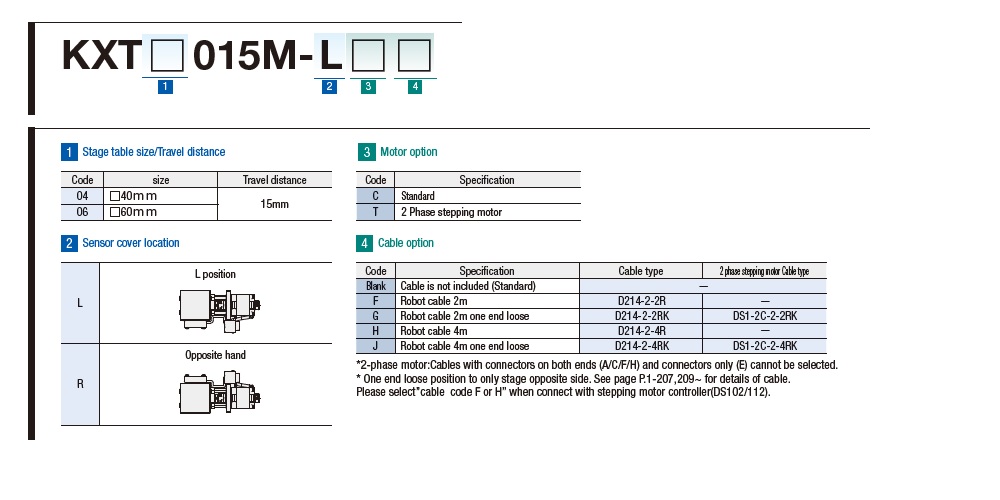

Model configuration/Option code
Grease change

【Accuracy Guarantee】
＜Grease for Clean room＞
・Since viscous resistance of grease increases, it becomes difficult for this grease to fulfill the same specification of standard grease type described on catalog.
・Furthermore, it tends to have bad tracking of micro-step feeding.
・The guaranteed accuracy value is 1.5 times the stopping performance of the standard grease type.
・Since the CAVE-X series, KXT series, and KXS series are standard for clean environments (AFF), we guarantee the accuracy of the specifications listed on each product page.

【Accuracy Guarantee】
＜Grease for Vacuum＞
Shipping accuracy may vary due to grease viscous resistance, etc.
Specs posted on each product introduction page are not guaranteed.

【Grease change spot】
・Guides and bearings (excluding bearings with seals and support units)
・Ball screw

※Ball screw, guide and bearing (bearing without seals only) are processed with coating after cleansing in plant.
※Grease change of stepping motor is not available.
Spec
Stage surface size40×40mmm
Travel distance[mm]15
Load capacity(Horizontal use)[kgf]10
GuideLinear Ball Guide
Main material Steel
- electroless nickel plating
MAX Speed (Horizontal)
[mm/sec]		10
Repeatability positioning accuracy
[Within±μm]		1
Straightness[Withinμm]10
Option
Ball screw[Lead mm]
Sensor cover position
【Controller】
DS102/DS112
Motor option
Cable option
Grease change
MAX Speed (Horizontal)
[mm/sec]
Relevant product

Stepping motor
Controller
:DS102

Stepping motor
Controller
:DS112

Handy terminal
: DT100

DS102/112 series
Control software
:DSCONTROL-WIN

For stepping motor
Driver:DC24V

For stepping motor
Driver:AC100V

Motorized Stage cable
:D214-2-N

Motorized Stage cable
:D214-2-R
Spec List
KXT04015M-LC 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Without cable Standard grease (AFF standard) 10 2μm/Pulse(Full-step) 10 1 2.5 10 30 25 0.38 PART Community
KXT04015M-LCF 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		L position Supporting 5 Phase stepping motor
(Standard) 		Robot cable
2m Both end connectors 		Standard grease (AFF standard) 10 2μm/Pulse(Full-step) 10 1 2.5 10 30 25 0.38 PART Community
KXT04015M-LCF-K 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		L position Supporting 5 Phase stepping motor
(Standard) 		Robot cable
2m Both end connectors 		LG2(Clean grease) 10 2μm/Pulse(Full-step) 10 1 2.5 10 30 25 0.38 PART Community
KXT04015M-LCF-L 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		L position Supporting 5 Phase stepping motor
(Standard) 		Robot cable
2m Both end connectors 		Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 10 1 2.5 10 30 25 0.38 PART Community
KXT04015M-LCG 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
2m One end loose wire 		Standard grease (AFF standard) 10 2μm/Pulse(Full-step) 10 1 2.5 10 30 25 0.38 PART Community
KXT04015M-LCG-K 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
2m One end loose wire 		LG2(Clean grease) 10 2μm/Pulse(Full-step) 10 1 2.5 10 30 25 0.38 PART Community
KXT04015M-LCG-L 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
2m One end loose wire 		Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 10 1 2.5 10 30 25 0.38 PART Community
KXT04015M-LCH 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		L position Supporting 5 Phase stepping motor
(Standard) 		Robot cable
4m Both end connectors 		Standard grease (AFF standard) 10 2μm/Pulse(Full-step) 10 1 2.5 10 30 25 0.38 PART Community
KXT04015M-LCH-K 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		L position Supporting 5 Phase stepping motor
(Standard) 		Robot cable
4m Both end connectors 		LG2(Clean grease) 10 2μm/Pulse(Full-step) 10 1 2.5 10 30 25 0.38 PART Community
KXT04015M-LCH-L 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		L position Supporting 5 Phase stepping motor
(Standard) 		Robot cable
4m Both end connectors 		Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 10 1 2.5 10 30 25 0.38 PART Community
KXT04015M-LCJ 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
4m One end loose wire 		Standard grease (AFF standard) 10 2μm/Pulse(Full-step) 10 1 2.5 10 30 25 0.38 PART Community
KXT04015M-LCJ-K 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
4m One end loose wire 		LG2(Clean grease) 10 2μm/Pulse(Full-step) 10 1 2.5 10 30 25 0.38 PART Community
KXT04015M-LCJ-L 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
4m One end loose wire 		Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 10 1 2.5 10 30 25 0.38 PART Community
KXT04015M-LC-K 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Without cable LG2(Clean grease) 10 2μm/Pulse(Full-step) 10 1 2.5 10 30 25 0.38 PART Community
KXT04015M-LC-L 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Without cable Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 10 1 2.5 10 30 25 0.38 PART Community
KXT04015M-LT 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		L position Non-supporting 2 Phase stepping motor Without cable Standard grease (AFF standard) 10 5μm/Pulse(Full-step) 10 1 5 10 30 25 0.38 PART Community
KXT04015M-LTG 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		L position Non-supporting 2 Phase stepping motor Robot cable
2m One end loose wire 		Standard grease (AFF standard) 10 5μm/Pulse(Full-step) 10 1 5 10 30 25 0.38 PART Community
KXT04015M-LTG-K 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		L position Non-supporting 2 Phase stepping motor Robot cable
2m One end loose wire 		LG2(Clean grease) 10 5μm/Pulse(Full-step) 10 1 5 10 30 25 0.38 PART Community
KXT04015M-LTG-L 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		L position Non-supporting 2 Phase stepping motor Robot cable
2m One end loose wire 		Fomblin YVAC2
(vacuum grease) 		10 5μm/Pulse(Full-step) 10 1 5 10 30 25 0.38 PART Community
KXT04015M-LTJ 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		L position Non-supporting 2 Phase stepping motor Robot cable
4m One end loose wire 		Standard grease (AFF standard) 10 5μm/Pulse(Full-step) 10 1 5 10 30 25 0.38 PART Community
KXT04015M-LTJ-K 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		L position Non-supporting 2 Phase stepping motor Robot cable
4m One end loose wire 		LG2(Clean grease) 10 5μm/Pulse(Full-step) 10 1 5 10 30 25 0.38 PART Community
KXT04015M-LTJ-L 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		L position Non-supporting 2 Phase stepping motor Robot cable
4m One end loose wire 		Fomblin YVAC2
(vacuum grease) 		10 5μm/Pulse(Full-step) 10 1 5 10 30 25 0.38 PART Community
KXT04015M-LT-K 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		L position Non-supporting 2 Phase stepping motor Without cable LG2(Clean grease) 10 5μm/Pulse(Full-step) 10 1 5 10 30 25 0.38 PART Community
KXT04015M-LT-L 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		L position Non-supporting 2 Phase stepping motor Without cable Fomblin YVAC2
(vacuum grease) 		10 5μm/Pulse(Full-step) 10 1 5 10 30 25 0.38 PART Community
KXT04015M-RC 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Without cable Standard grease (AFF standard) 10 2μm/Pulse(Full-step) 10 1 2.5 10 30 25 0.38 PART Community
KXT04015M-RCF 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		Opposite attached Supporting 5 Phase stepping motor
(Standard) 		Robot cable
2m Both end connectors 		Standard grease (AFF standard) 10 2μm/Pulse(Full-step) 10 1 2.5 10 30 25 0.38 PART Community
KXT04015M-RCF-K 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		Opposite attached Supporting 5 Phase stepping motor
(Standard) 		Robot cable
2m Both end connectors 		LG2(Clean grease) 10 2μm/Pulse(Full-step) 10 1 2.5 10 30 25 0.38 PART Community
KXT04015M-RCF-L 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		Opposite attached Supporting 5 Phase stepping motor
(Standard) 		Robot cable
2m Both end connectors 		Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 10 1 2.5 10 30 25 0.38 PART Community
KXT04015M-RCG 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
2m One end loose wire 		Standard grease (AFF standard) 10 2μm/Pulse(Full-step) 10 1 2.5 10 30 25 0.38 PART Community
KXT04015M-RCG-K 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
2m One end loose wire 		LG2(Clean grease) 10 2μm/Pulse(Full-step) 10 1 2.5 10 30 25 0.38 PART Community
KXT04015M-RCG-L 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
2m One end loose wire 		Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 10 1 2.5 10 30 25 0.38 PART Community
KXT04015M-RCH 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		Opposite attached Supporting 5 Phase stepping motor
(Standard) 		Robot cable
4m Both end connectors 		Standard grease (AFF standard) 10 2μm/Pulse(Full-step) 10 1 2.5 10 30 25 0.38 PART Community
KXT04015M-RCH-K 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		Opposite attached Supporting 5 Phase stepping motor
(Standard) 		Robot cable
4m Both end connectors 		LG2(Clean grease) 10 2μm/Pulse(Full-step) 10 1 2.5 10 30 25 0.38 PART Community
KXT04015M-RCH-L 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		Opposite attached Supporting 5 Phase stepping motor
(Standard) 		Robot cable
4m Both end connectors 		Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 10 1 2.5 10 30 25 0.38 PART Community
KXT04015M-RCJ 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
4m One end loose wire 		Standard grease (AFF standard) 10 2μm/Pulse(Full-step) 10 1 2.5 10 30 25 0.38 PART Community
KXT04015M-RCJ-K 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
4m One end loose wire 		LG2(Clean grease) 10 2μm/Pulse(Full-step) 10 1 2.5 10 30 25 0.38 PART Community
KXT04015M-RCJ-L 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Robot cable
4m One end loose wire 		Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 10 1 2.5 10 30 25 0.38 PART Community
KXT04015M-RC-K 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Without cable LG2(Clean grease) 10 2μm/Pulse(Full-step) 10 1 2.5 10 30 25 0.38 PART Community
KXT04015M-RC-L 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
(Standard) 		Without cable Fomblin YVAC2
(vacuum grease) 		10 2μm/Pulse(Full-step) 10 1 2.5 10 30 25 0.38 PART Community
KXT04015M-RT 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		Opposite attached Non-supporting 2 Phase stepping motor Without cable Standard grease (AFF standard) 10 5μm/Pulse(Full-step) 10 1 5 10 30 25 0.38 PART Community
KXT04015M-RTG 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		Opposite attached Non-supporting 2 Phase stepping motor Robot cable
2m One end loose wire 		Standard grease (AFF standard) 10 5μm/Pulse(Full-step) 10 1 5 10 30 25 0.38 PART Community
KXT04015M-RTG-K 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		Opposite attached Non-supporting 2 Phase stepping motor Robot cable
2m One end loose wire 		LG2(Clean grease) 10 5μm/Pulse(Full-step) 10 1 5 10 30 25 0.38 PART Community
KXT04015M-RTG-L 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		Opposite attached Non-supporting 2 Phase stepping motor Robot cable
2m One end loose wire 		Fomblin YVAC2
(vacuum grease) 		10 5μm/Pulse(Full-step) 10 1 5 10 30 25 0.38 PART Community
KXT04015M-RTJ 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		Opposite attached Non-supporting 2 Phase stepping motor Robot cable
4m One end loose wire 		Standard grease (AFF standard) 10 5μm/Pulse(Full-step) 10 1 5 10 30 25 0.38 PART Community
KXT04015M-RTJ-K 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		Opposite attached Non-supporting 2 Phase stepping motor Robot cable
4m One end loose wire 		LG2(Clean grease) 10 5μm/Pulse(Full-step) 10 1 5 10 30 25 0.38 PART Community
KXT04015M-RTJ-L 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		Opposite attached Non-supporting 2 Phase stepping motor Robot cable
4m One end loose wire 		Fomblin YVAC2
(vacuum grease) 		10 5μm/Pulse(Full-step) 10 1 5 10 30 25 0.38 PART Community
KXT04015M-RT-K 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		Opposite attached Non-supporting 2 Phase stepping motor Without cable LG2(Clean grease) 10 5μm/Pulse(Full-step) 10 1 5 10 30 25 0.38 PART Community
KXT04015M-RT-L 40×40mmm 15 10 φ6 Lead 1 Linear Ball Guide Steel
- electroless nickel plating 		Opposite attached Non-supporting 2 Phase stepping motor Without cable Fomblin YVAC2
(vacuum grease) 		10 5μm/Pulse(Full-step) 10 1 5 10 30 25 0.38 PART Community
PAGETOP
