Motorized Stage
1-Axis Motorized Goniometer Stage
2-axis motorized goniometer stage
1-Axis Motorized Goniometer Stage
Goniometer Stage
Worm gear:KG05

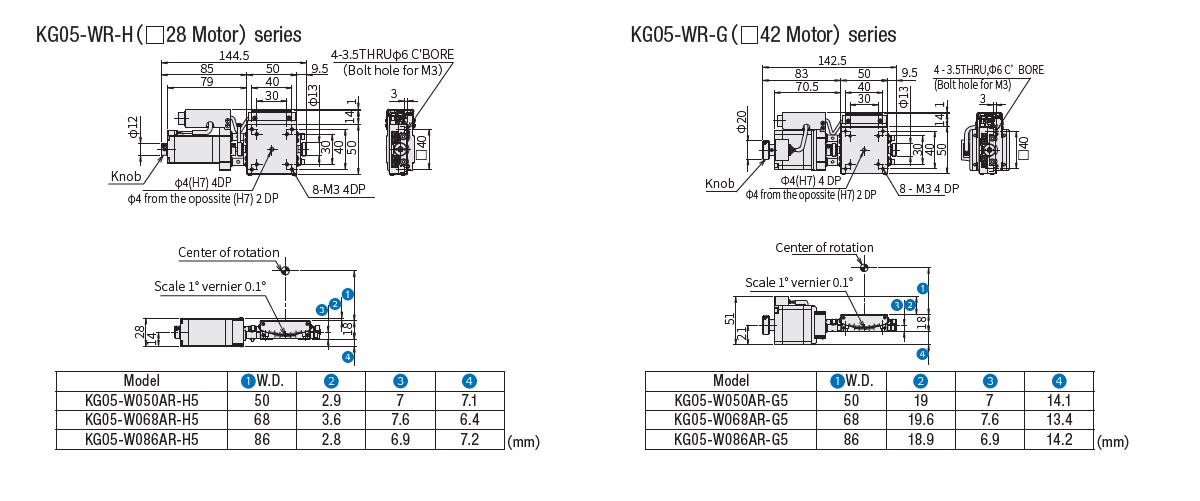

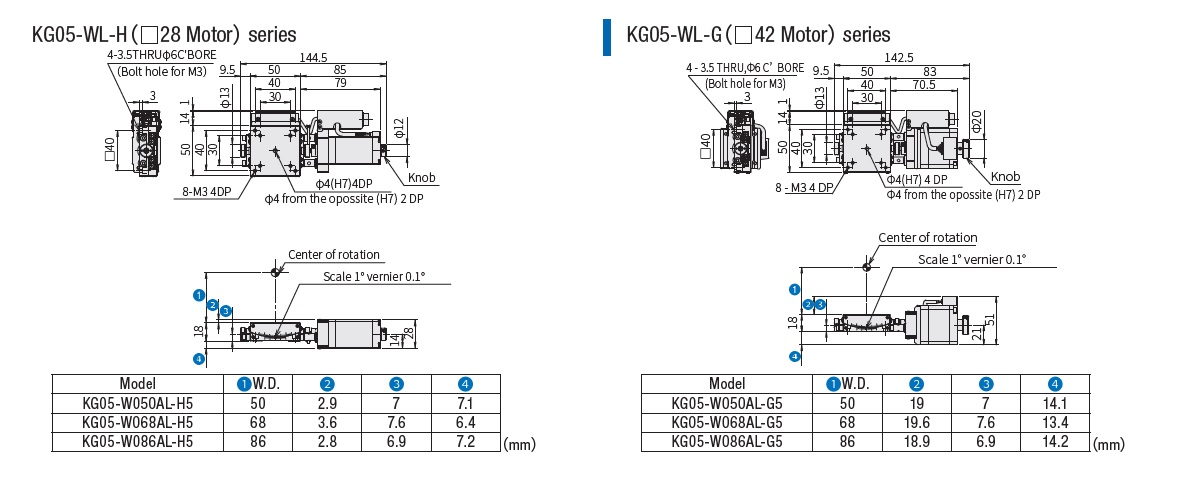

Dimensions
Model configuration/Option code
Electrical specifications/cable connection diagram
Spec
Stage surface size50×50mm
Travel distance[±°]10|6|8
Load capacity[kgf]3
Travel mechanismWorm gear
Main material Brass/Phosphor bronze
Nickel chrome plating
Height of center rotation50±0.2mm|68±0.2mm|86±0.2mm
Motor option5 Phase stepping motor
□28mm|5 Phase stepping motor
□42mm
Repeatability positioning accuracy
[Within±°]		0.005
Option
Height of center rotation[mm]
Sensor logic
Sensor cover position
【Controller】
DS102/DS112
Motor option
Cable option
Cable kinds
Cable length
MAX Speed[°/sec]
Relevant product

Stepping motor
Controller
:DS102

Stepping motor
Controller
:DS112

Handy terminal
: DT100

DS102/112 series
Control software
:DSCONTROL-WIN

For stepping motor
Driver:DC24V

For stepping motor
Driver:AC100V

Motorized Stage cable
:D214-2-N

Motorized Stage cable
:D214-2-R

Motorized Stage cable
:D214-2-NA

Motorized Stage cable
:D214-2-RA
Spec List
KG05-W050AL-G 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. L position Supporting 5 Phase stepping motor
□42mm 		Standard
2m Both end connectors 		7.8 0.001559° 0.005 0.01 0.01 0.76 PART Community
KG05-W050AL-G1 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□42mm 		Standard cable
2m One end loose wire 		7.8 0.001559° 0.005 0.01 0.01 0.76 PART Community
KG05-W050AL-G2 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. L position Supporting 5 Phase stepping motor
□42mm 		Standard
4m Both end connectors 		7.8 0.001559° 0.005 0.01 0.01 0.76 PART Community
KG05-W050AL-G3 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□42mm 		Standard cable
4m One end loose wire 		7.8 0.001559° 0.005 0.01 0.01 0.76 PART Community
KG05-W050AL-G4 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□42mm 		Connector only (no cable) 7.8 0.001559° 0.005 0.01 0.01 0.76 PART Community
KG05-W050AL-G5 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□42mm 		Without cable 7.8 0.001559° 0.005 0.01 0.01 0.76 PART Community
KG05-W050AL-G6 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. L position Supporting 5 Phase stepping motor
□42mm 		Robot cable
2m Both end connectors 		7.8 0.001559° 0.005 0.01 0.01 0.76 PART Community
KG05-W050AL-G7 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. L position Supporting 5 Phase stepping motor
□42mm 		Robot cable
4m Both end connectors 		7.8 0.001559° 0.005 0.01 0.01 0.76 PART Community
KG05-W050AL-G8 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□42mm 		Robot cable
4m One end loose wire 		7.8 0.001559° 0.005 0.01 0.01 0.76 PART Community
KG05-W050AL-G9 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□42mm 		Robot cable
2m One end loose wire 		7.8 0.001559° 0.005 0.01 0.01 0.76 PART Community
KG05-W050AL-H 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. L position Supporting 5 Phase stepping motor
□28mm 		Standard
2m Both end connectors 		7.8 0.001559° 0.005 0.01 0.01 0.63 PART Community
KG05-W050AL-H1 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□28mm 		Standard cable
2m One end loose wire 		7.8 0.001559° 0.005 0.01 0.01 0.63 PART Community
KG05-W050AL-H2 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. L position Supporting 5 Phase stepping motor
□28mm 		Standard
4m Both end connectors 		7.8 0.001559° 0.005 0.01 0.01 0.63 PART Community
KG05-W050AL-H3 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□28mm 		Standard cable
4m One end loose wire 		7.8 0.001559° 0.005 0.01 0.01 0.63 PART Community
KG05-W050AL-H4 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□28mm 		Connector only (no cable) 7.8 0.001559° 0.005 0.01 0.01 0.63 PART Community
KG05-W050AL-H5 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□28mm 		Without cable 7.8 0.001559° 0.005 0.01 0.01 0.63 PART Community
KG05-W050AL-H6 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. L position Supporting 5 Phase stepping motor
□28mm 		Robot cable
2m Both end connectors 		7.8 0.001559° 0.005 0.01 0.01 0.63 PART Community
KG05-W050AL-H7 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. L position Supporting 5 Phase stepping motor
□28mm 		Robot cable
4m Both end connectors 		7.8 0.001559° 0.005 0.01 0.01 0.63 PART Community
KG05-W050AL-H8 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□28mm 		Robot cable
4m One end loose wire 		7.8 0.001559° 0.005 0.01 0.01 0.63 PART Community
KG05-W050AL-H9 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□28mm 		Robot cable
2m One end loose wire 		7.8 0.001559° 0.005 0.01 0.01 0.63 PART Community
KG05-W050AR-G 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. Opposite attached Supporting 5 Phase stepping motor
□42mm 		Standard
2m Both end connectors 		7.8 0.001559° 0.005 0.01 0.01 0.76 PART Community
KG05-W050AR-G1 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□42mm 		Standard cable
2m One end loose wire 		7.8 0.001559° 0.005 0.01 0.01 0.76 PART Community
KG05-W050AR-G2 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. Opposite attached Supporting 5 Phase stepping motor
□42mm 		Standard
4m Both end connectors 		7.8 0.001559° 0.005 0.01 0.01 0.76 PART Community
KG05-W050AR-G3 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□42mm 		Standard cable
4m One end loose wire 		7.8 0.001559° 0.005 0.01 0.01 0.76 PART Community
KG05-W050AR-G4 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□42mm 		Connector only (no cable) 7.8 0.001559° 0.005 0.01 0.01 0.76 PART Community
KG05-W050AR-G5 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□42mm 		Without cable 7.8 0.001559° 0.005 0.01 0.01 0.76 PART Community
KG05-W050AR-G6 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. Opposite attached Supporting 5 Phase stepping motor
□42mm 		Robot cable
2m Both end connectors 		7.8 0.001559° 0.005 0.01 0.01 0.76 PART Community
KG05-W050AR-G7 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. Opposite attached Supporting 5 Phase stepping motor
□42mm 		Robot cable
4m Both end connectors 		7.8 0.001559° 0.005 0.01 0.01 0.76 PART Community
KG05-W050AR-G8 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□42mm 		Robot cable
4m One end loose wire 		7.8 0.001559° 0.005 0.01 0.01 0.76 PART Community
KG05-W050AR-G9 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□42mm 		Robot cable
2m One end loose wire 		7.8 0.001559° 0.005 0.01 0.01 0.76 PART Community
KG05-W050AR-H 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. Opposite attached Supporting 5 Phase stepping motor
□28mm 		Standard
2m Both end connectors 		7.8 0.001559° 0.005 0.01 0.01 0.63 PART Community
KG05-W050AR-H1 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□28mm 		Standard cable
2m One end loose wire 		7.8 0.001559° 0.005 0.01 0.01 0.63 PART Community
KG05-W050AR-H2 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. Opposite attached Supporting 5 Phase stepping motor
□28mm 		Standard
4m Both end connectors 		7.8 0.001559° 0.005 0.01 0.01 0.63 PART Community
KG05-W050AR-H3 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□28mm 		Standard cable
4m One end loose wire 		7.8 0.001559° 0.005 0.01 0.01 0.63 PART Community
KG05-W050AR-H4 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□28mm 		Connector only (no cable) 7.8 0.001559° 0.005 0.01 0.01 0.63 PART Community
KG05-W050AR-H5 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□28mm 		Without cable 7.8 0.001559° 0.005 0.01 0.01 0.63 PART Community
KG05-W050AR-H6 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. Opposite attached Supporting 5 Phase stepping motor
□28mm 		Robot cable
2m Both end connectors 		7.8 0.001559° 0.005 0.01 0.01 0.63 PART Community
KG05-W050AR-H7 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. Opposite attached Supporting 5 Phase stepping motor
□28mm 		Robot cable
4m Both end connectors 		7.8 0.001559° 0.005 0.01 0.01 0.63 PART Community
KG05-W050AR-H8 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□28mm 		Robot cable
4m One end loose wire 		7.8 0.001559° 0.005 0.01 0.01 0.63 PART Community
KG05-W050AR-H9 50×50mm 10 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		50±0.2mm All N.C. Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□28mm 		Robot cable
2m One end loose wire 		7.8 0.001559° 0.005 0.01 0.01 0.63 PART Community
KG05-W068AL-G 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. L position Supporting 5 Phase stepping motor
□42mm 		Standard
2m Both end connectors 		6 0.0012° 0.005 0.01 0.01 0.76 PART Community
KG05-W068AL-G1 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□42mm 		Standard cable
2m One end loose wire 		6 0.0012° 0.005 0.01 0.01 0.76 PART Community
KG05-W068AL-G2 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. L position Supporting 5 Phase stepping motor
□42mm 		Standard
4m Both end connectors 		6 0.0012° 0.005 0.01 0.01 0.76 PART Community
KG05-W068AL-G3 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□42mm 		Standard cable
4m One end loose wire 		6 0.0012° 0.005 0.01 0.01 0.76 PART Community
KG05-W068AL-G4 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□42mm 		Connector only (no cable) 6 0.0012° 0.005 0.01 0.01 0.76 PART Community
KG05-W068AL-G5 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□42mm 		Without cable 6 0.0012° 0.005 0.01 0.01 0.76 PART Community
KG05-W068AL-G6 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. L position Supporting 5 Phase stepping motor
□42mm 		Robot cable
2m Both end connectors 		6 0.0012° 0.005 0.01 0.01 0.76 PART Community
KG05-W068AL-G7 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. L position Supporting 5 Phase stepping motor
□42mm 		Robot cable
4m Both end connectors 		6 0.0012° 0.005 0.01 0.01 0.76 PART Community
KG05-W068AL-G8 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□42mm 		Robot cable
4m One end loose wire 		6 0.0012° 0.005 0.01 0.01 0.76 PART Community
KG05-W068AL-G9 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□42mm 		Robot cable
2m One end loose wire 		6 0.0012° 0.005 0.01 0.01 0.76 PART Community
KG05-W068AL-H 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. L position Supporting 5 Phase stepping motor
□28mm 		Standard
2m Both end connectors 		6 0.0012° 0.005 0.01 0.01 0.63 PART Community
KG05-W068AL-H1 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□28mm 		Standard cable
2m One end loose wire 		6 0.0012° 0.005 0.01 0.01 0.63 PART Community
KG05-W068AL-H2 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. L position Supporting 5 Phase stepping motor
□28mm 		Standard
4m Both end connectors 		6 0.0012° 0.005 0.01 0.01 0.63 PART Community
KG05-W068AL-H3 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□28mm 		Standard cable
4m One end loose wire 		6 0.0012° 0.005 0.01 0.01 0.63 PART Community
KG05-W068AL-H4 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□28mm 		Connector only (no cable) 6 0.0012° 0.005 0.01 0.01 0.63 PART Community
KG05-W068AL-H5 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□28mm 		Without cable 6 0.0012° 0.005 0.01 0.01 0.63 PART Community
KG05-W068AL-H6 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. L position Supporting 5 Phase stepping motor
□28mm 		Robot cable
2m Both end connectors 		6 0.0012° 0.005 0.01 0.01 0.63 PART Community
KG05-W068AL-H7 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. L position Supporting 5 Phase stepping motor
□28mm 		Robot cable
4m Both end connectors 		6 0.0012° 0.005 0.01 0.01 0.63 PART Community
KG05-W068AL-H8 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□28mm 		Robot cable
4m One end loose wire 		6 0.0012° 0.005 0.01 0.01 0.63 PART Community
KG05-W068AL-H9 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□28mm 		Robot cable
2m One end loose wire 		6 0.0012° 0.005 0.01 0.01 0.63 PART Community
KG05-W068AR-G 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. Opposite attached Supporting 5 Phase stepping motor
□42mm 		Standard
2m Both end connectors 		6 0.0012° 0.005 0.01 0.01 0.76 PART Community
KG05-W068AR-G1 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□42mm 		Standard cable
2m One end loose wire 		6 0.0012° 0.005 0.01 0.01 0.76 PART Community
KG05-W068AR-G2 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. Opposite attached Supporting 5 Phase stepping motor
□42mm 		Standard
4m Both end connectors 		6 0.0012° 0.005 0.01 0.01 0.76 PART Community
KG05-W068AR-G3 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□42mm 		Standard cable
4m One end loose wire 		6 0.0012° 0.005 0.01 0.01 0.76 PART Community
KG05-W068AR-G4 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□42mm 		Connector only (no cable) 6 0.0012° 0.005 0.01 0.01 0.76 PART Community
KG05-W068AR-G5 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□42mm 		Without cable 6 0.0012° 0.005 0.01 0.01 0.76 PART Community
KG05-W068AR-G6 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. Opposite attached Supporting 5 Phase stepping motor
□42mm 		Robot cable
2m Both end connectors 		6 0.0012° 0.005 0.01 0.01 0.76 PART Community
KG05-W068AR-G7 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. Opposite attached Supporting 5 Phase stepping motor
□42mm 		Robot cable
4m Both end connectors 		6 0.0012° 0.005 0.01 0.01 0.76 PART Community
KG05-W068AR-G8 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□42mm 		Robot cable
4m One end loose wire 		6 0.0012° 0.005 0.01 0.01 0.76 PART Community
KG05-W068AR-G9 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□42mm 		Robot cable
2m One end loose wire 		6 0.0012° 0.005 0.01 0.01 0.76 PART Community
KG05-W068AR-H 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. Opposite attached Supporting 5 Phase stepping motor
□28mm 		Standard
2m Both end connectors 		6 0.0012° 0.005 0.01 0.01 0.63 PART Community
KG05-W068AR-H1 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□28mm 		Standard cable
2m One end loose wire 		6 0.0012° 0.005 0.01 0.01 0.63 PART Community
KG05-W068AR-H2 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. Opposite attached Supporting 5 Phase stepping motor
□28mm 		Standard
4m Both end connectors 		6 0.0012° 0.005 0.01 0.01 0.63 PART Community
KG05-W068AR-H3 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□28mm 		Standard cable
4m One end loose wire 		6 0.0012° 0.005 0.01 0.01 0.63 PART Community
KG05-W068AR-H4 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□28mm 		Connector only (no cable) 6 0.0012° 0.005 0.01 0.01 0.63 PART Community
KG05-W068AR-H5 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□28mm 		Without cable 6 0.0012° 0.005 0.01 0.01 0.63 PART Community
KG05-W068AR-H6 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. Opposite attached Supporting 5 Phase stepping motor
□28mm 		Robot cable
2m Both end connectors 		6 0.0012° 0.005 0.01 0.01 0.63 PART Community
KG05-W068AR-H7 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. Opposite attached Supporting 5 Phase stepping motor
□28mm 		Robot cable
4m Both end connectors 		6 0.0012° 0.005 0.01 0.01 0.63 PART Community
KG05-W068AR-H8 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□28mm 		Robot cable
4m One end loose wire 		6 0.0012° 0.005 0.01 0.01 0.63 PART Community
KG05-W068AR-H9 50×50mm 8 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		68±0.2mm All N.C. Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□28mm 		Robot cable
2m One end loose wire 		6 0.0012° 0.005 0.01 0.01 0.63 PART Community
KG05-W086AL-G 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. L position Supporting 5 Phase stepping motor
□42mm 		Standard
2m Both end connectors 		4.8 0.00096° 0.005 0.01 0.01 0.76 PART Community
KG05-W086AL-G1 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□42mm 		Standard cable
2m One end loose wire 		4.8 0.00096° 0.005 0.01 0.01 0.76 PART Community
KG05-W086AL-G2 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. L position Supporting 5 Phase stepping motor
□42mm 		Standard
4m Both end connectors 		4.8 0.00096° 0.005 0.01 0.01 0.76 PART Community
KG05-W086AL-G3 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□42mm 		Standard cable
4m One end loose wire 		4.8 0.00096° 0.005 0.01 0.01 0.76 PART Community
KG05-W086AL-G4 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□42mm 		Connector only (no cable) 4.8 0.00096° 0.005 0.01 0.01 0.76 PART Community
KG05-W086AL-G5 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□42mm 		Without cable 4.8 0.00096° 0.005 0.01 0.01 0.76 PART Community
KG05-W086AL-G6 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. L position Supporting 5 Phase stepping motor
□42mm 		Robot cable
2m Both end connectors 		4.8 0.00096° 0.005 0.01 0.01 0.76 PART Community
KG05-W086AL-G7 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. L position Supporting 5 Phase stepping motor
□42mm 		Robot cable
4m Both end connectors 		4.8 0.00096° 0.005 0.01 0.01 0.76 PART Community
KG05-W086AL-G8 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□42mm 		Robot cable
4m One end loose wire 		4.8 0.00096° 0.005 0.01 0.01 0.76 PART Community
KG05-W086AL-G9 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□42mm 		Robot cable
2m One end loose wire 		4.8 0.00096° 0.005 0.01 0.01 0.76 PART Community
KG05-W086AL-H 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. L position Supporting 5 Phase stepping motor
□28mm 		Standard
2m Both end connectors 		4.8 0.00096° 0.005 0.01 0.01 0.63 PART Community
KG05-W086AL-H1 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□28mm 		Standard cable
2m One end loose wire 		4.8 0.00096° 0.005 0.01 0.01 0.63 PART Community
KG05-W086AL-H2 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. L position Supporting 5 Phase stepping motor
□28mm 		Standard
4m Both end connectors 		4.8 0.00096° 0.005 0.01 0.01 0.63 PART Community
KG05-W086AL-H3 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□28mm 		Standard cable
4m One end loose wire 		4.8 0.00096° 0.005 0.01 0.01 0.63 PART Community
KG05-W086AL-H4 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□28mm 		Connector only (no cable) 4.8 0.00096° 0.005 0.01 0.01 0.63 PART Community
KG05-W086AL-H5 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□28mm 		Without cable 4.8 0.00096° 0.005 0.01 0.01 0.63 PART Community
KG05-W086AL-H6 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. L position Supporting 5 Phase stepping motor
□28mm 		Robot cable
2m Both end connectors 		4.8 0.00096° 0.005 0.01 0.01 0.63 PART Community
KG05-W086AL-H7 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. L position Supporting 5 Phase stepping motor
□28mm 		Robot cable
4m Both end connectors 		4.8 0.00096° 0.005 0.01 0.01 0.63 PART Community
KG05-W086AL-H8 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□28mm 		Robot cable
4m One end loose wire 		4.8 0.00096° 0.005 0.01 0.01 0.63 PART Community
KG05-W086AL-H9 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. L position Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□28mm 		Robot cable
2m One end loose wire 		4.8 0.00096° 0.005 0.01 0.01 0.63 PART Community
KG05-W086AR-G 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. Opposite attached Supporting 5 Phase stepping motor
□42mm 		Standard
2m Both end connectors 		4.8 0.00096° 0.005 0.01 0.01 0.76 PART Community
KG05-W086AR-G1 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□42mm 		Standard cable
2m One end loose wire 		4.8 0.00096° 0.005 0.01 0.01 0.76 PART Community
KG05-W086AR-G2 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. Opposite attached Supporting 5 Phase stepping motor
□42mm 		Standard
4m Both end connectors 		4.8 0.00096° 0.005 0.01 0.01 0.76 PART Community
KG05-W086AR-G3 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□42mm 		Standard cable
4m One end loose wire 		4.8 0.00096° 0.005 0.01 0.01 0.76 PART Community
KG05-W086AR-G4 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□42mm 		Connector only (no cable) 4.8 0.00096° 0.005 0.01 0.01 0.76 PART Community
KG05-W086AR-G5 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□42mm 		Without cable 4.8 0.00096° 0.005 0.01 0.01 0.76 PART Community
KG05-W086AR-G6 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. Opposite attached Supporting 5 Phase stepping motor
□42mm 		Robot cable
2m Both end connectors 		4.8 0.00096° 0.005 0.01 0.01 0.76 PART Community
KG05-W086AR-G7 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. Opposite attached Supporting 5 Phase stepping motor
□42mm 		Robot cable
4m Both end connectors 		4.8 0.00096° 0.005 0.01 0.01 0.76 PART Community
KG05-W086AR-G8 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□42mm 		Robot cable
4m One end loose wire 		4.8 0.00096° 0.005 0.01 0.01 0.76 PART Community
KG05-W086AR-G9 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□42mm 		Robot cable
2m One end loose wire 		4.8 0.00096° 0.005 0.01 0.01 0.76 PART Community
KG05-W086AR-H 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. Opposite attached Supporting 5 Phase stepping motor
□28mm 		Standard
2m Both end connectors 		4.8 0.00096° 0.005 0.01 0.01 0.63 PART Community
KG05-W086AR-H1 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□28mm 		Standard cable
2m One end loose wire 		4.8 0.00096° 0.005 0.01 0.01 0.63 PART Community
KG05-W086AR-H2 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. Opposite attached Supporting 5 Phase stepping motor
□28mm 		Standard
4m Both end connectors 		4.8 0.00096° 0.005 0.01 0.01 0.63 PART Community
KG05-W086AR-H3 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□28mm 		Standard cable
4m One end loose wire 		4.8 0.00096° 0.005 0.01 0.01 0.63 PART Community
KG05-W086AR-H4 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□28mm 		Connector only (no cable) 4.8 0.00096° 0.005 0.01 0.01 0.63 PART Community
KG05-W086AR-H5 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□28mm 		Without cable 4.8 0.00096° 0.005 0.01 0.01 0.63 PART Community
KG05-W086AR-H6 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. Opposite attached Supporting 5 Phase stepping motor
□28mm 		Robot cable
2m Both end connectors 		4.8 0.00096° 0.005 0.01 0.01 0.63 PART Community
KG05-W086AR-H7 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. Opposite attached Supporting 5 Phase stepping motor
□28mm 		Robot cable
4m Both end connectors 		4.8 0.00096° 0.005 0.01 0.01 0.63 PART Community
KG05-W086AR-H8 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□28mm 		Robot cable
4m One end loose wire 		4.8 0.00096° 0.005 0.01 0.01 0.63 PART Community
KG05-W086AR-H9 50×50mm 6 3 Cross Roller Guide Brass/Phosphor bronze
Nickel chrome plating 		86±0.2mm All N.C. Opposite attached Supporting
(requires cable with attached connectors on both ends) 		5 Phase stepping motor
□28mm 		Robot cable
2m One end loose wire 		4.8 0.00096° 0.005 0.01 0.01 0.63 PART Community
PAGETOP
