Spec

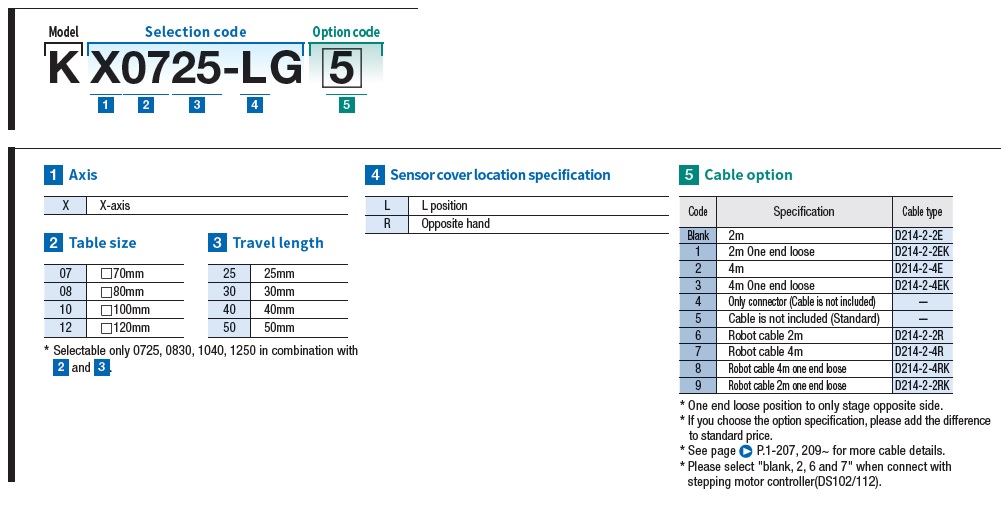

Add to List| Basic items | Model | KX1250-LG8 |
|---|---|---|

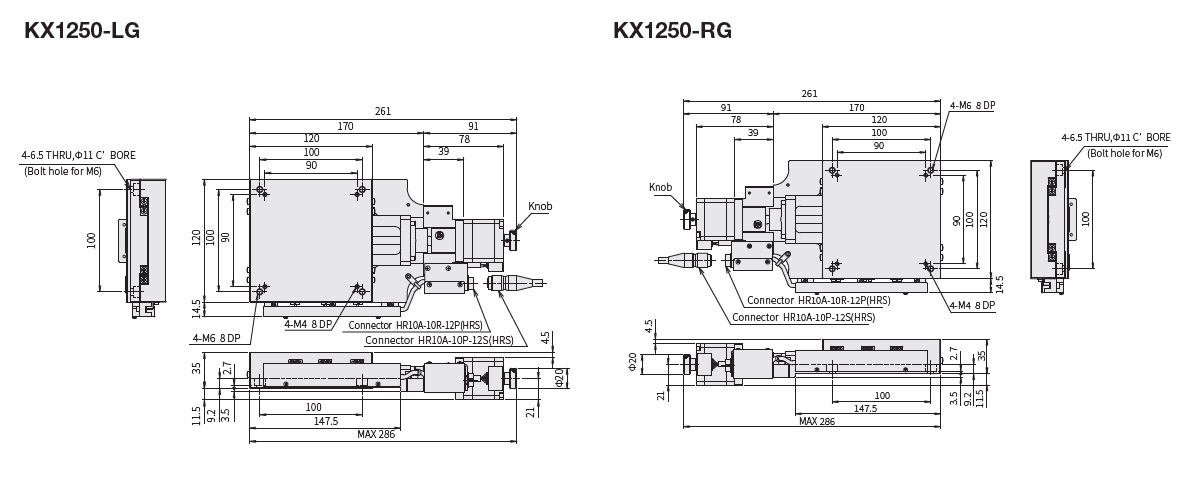

| CAD |
|
|
| List Price (1Qty) | INQUIRY | |
| RoHS | Supporting RoHS 10 substance | |
| Basic specification I | Stage surface size | 120×120mm |
| Travel distance[mm] | 50 | |
| Load capacity(Horizontal use)[kgf] | 25 | |
| Load capacity(Vertical use)[kgf] | 7.5 | |
| Load capacity(Horizontal use)[N] | 245 | |
| Load capacity(Vertical use)[N] | 73.5 | |
| Ball screw φ diameter -Lead [mm] |
φ8 Lead 1 | |
| Guide | Cross Roller Guide | |
| Main material | Aluminum-Black alumite finishing | |
| Basic specification II | Sensor cover position | L position |
| 【Controller】 DS102/DS112 |
Supporting (requires cable with attached connectors on both ends) |
|
| Motor option | 5 Phase stepping motor (High resolution) |
|
| Accessory cable | Robot cable 4m One end loose wire |
|
| Grease change | Standard grease | |
| MAX Speed (Horizontal) [mm/sec] |
10 | |
| Resolution | 1μm/pulse(Full-step) | |
| Resolution: Half(Pulse) | 0.5μm/Pulse(Half-step) | |
| Stopping accuracy | Uni-directional positioning accuracy [Withinμm] |
5 |
| Repeatability positioning accuracy [Within±μm] |
0.2 | |
| Lost motion [Within μm] | 1 | |
| Travel accuracy | Straightness[Withinμm] | 1 |
| Pitching[Within″] | 20 | |
| Yawing[Within″] | 15 | |
| Motion parallelism[Within μm] | 15 | |
| Stiffness | Moment stiffness: Pitch [″/N・cm] |
0.03 |
| Moment stiffness: Yaw [″/N・cm] |
0.02 | |
| Moment stiffness: Roll [″/N・cm] |
0.02 | |
| Tolerance | Parallelism of travel[within μm] | 30 |
| Backlash[Within μm] | 0.5 | |
| Sensor | Limit sensor | Available |
| Origin sensor | Available | |
| Slit origin sensor | - | |
| Weight | Weight[kg] | 2.19 |
| Accessory | Hexagon socket bolt | M6-10[4pcs] |
