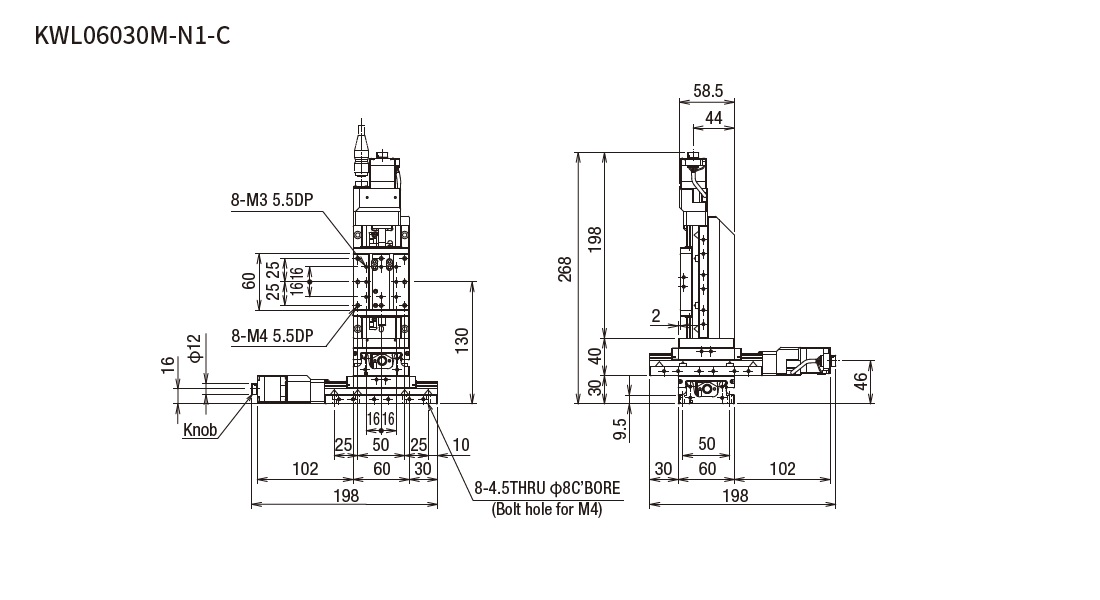

Dimensions (Standard motor)

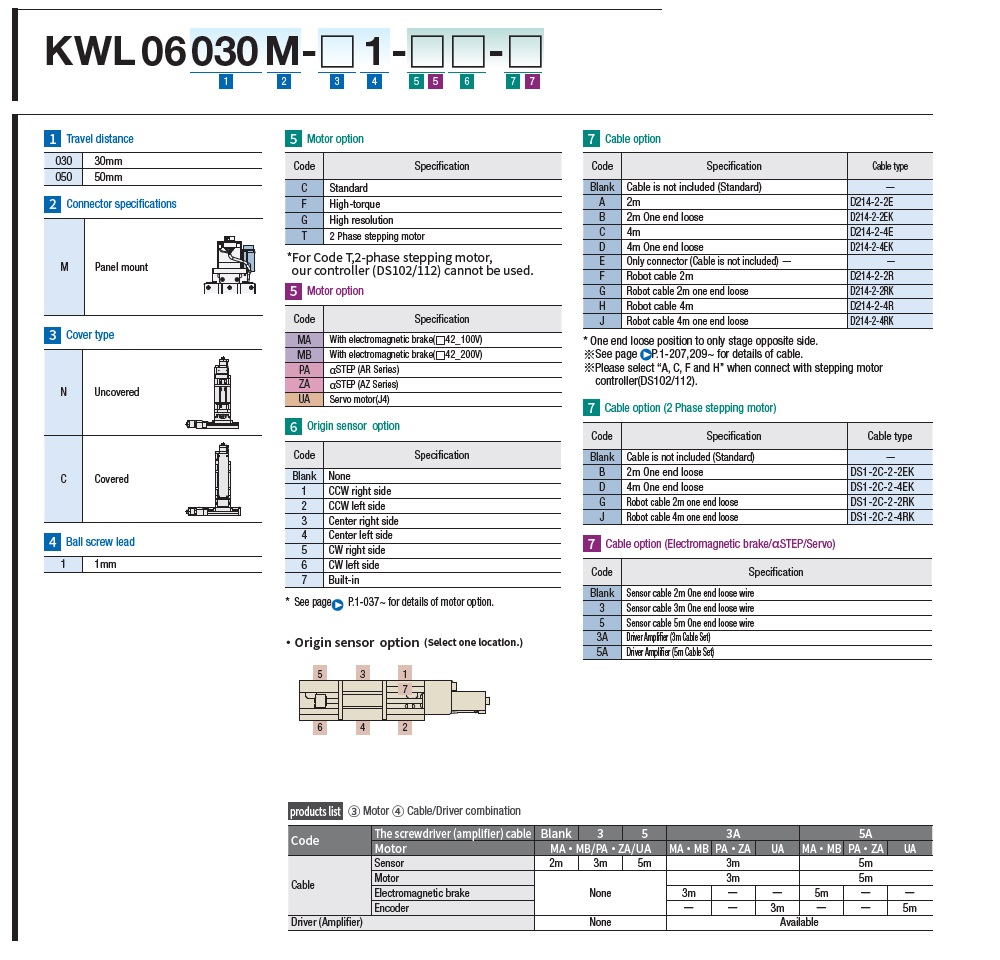

Model configuration/Option code
Grease change
【Accuracy Guarantee】
＜Grease for Clean room＞
・Since viscous resistance of grease increases, it becomes difficult for this grease to fulfill the same specification of standard grease type described on catalog.
・Furthermore, it tends to have bad tracking of micro-step feeding.
・The guaranteed accuracy value is 1.5 times the stopping performance of the standard grease type.
・Since the CAVE-X series, KXT series, and KXS series are standard for clean environments (AFF), we guarantee the accuracy of the specifications listed on each product page.
＜Grease for Clean room＞
・Since viscous resistance of grease increases, it becomes difficult for this grease to fulfill the same specification of standard grease type described on catalog.
・Furthermore, it tends to have bad tracking of micro-step feeding.
・The guaranteed accuracy value is 1.5 times the stopping performance of the standard grease type.
・Since the CAVE-X series, KXT series, and KXS series are standard for clean environments (AFF), we guarantee the accuracy of the specifications listed on each product page.
【Accuracy Guarantee】
＜Grease for Vacuum＞
・Shipping accuracy may vary due to grease viscous resistance, etc.
・Specs posted on each product introduction page are not guaranteed.
＜Grease for Vacuum＞
・Shipping accuracy may vary due to grease viscous resistance, etc.
・Specs posted on each product introduction page are not guaranteed.
