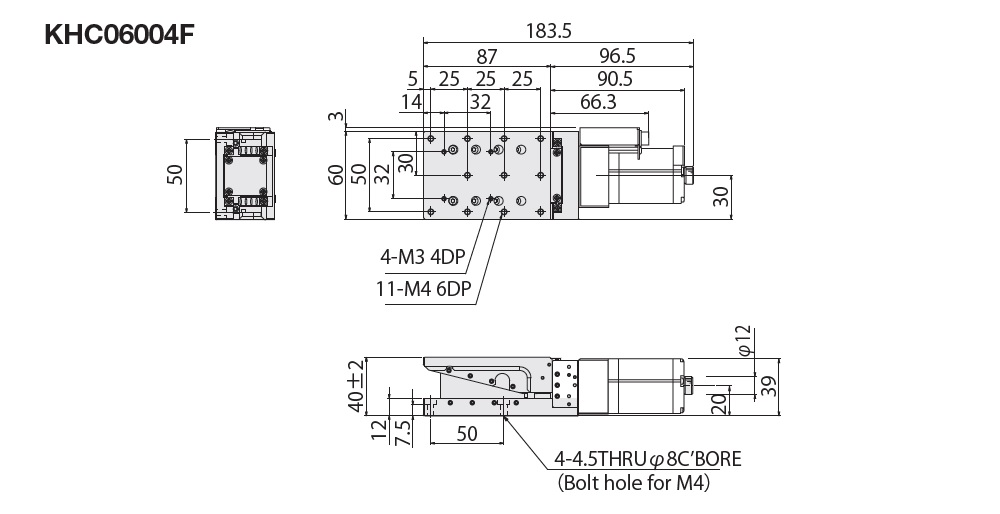

Dimensions

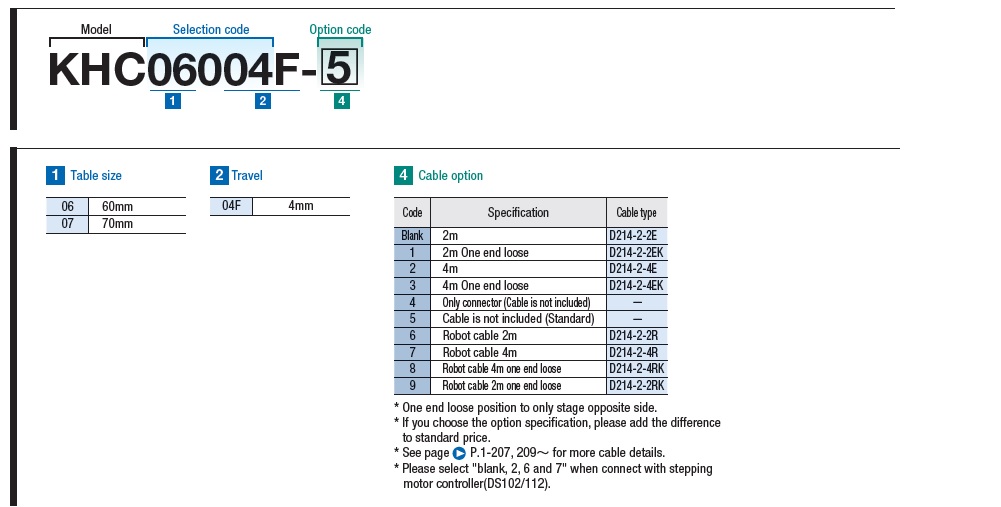

Model configuration/Option code

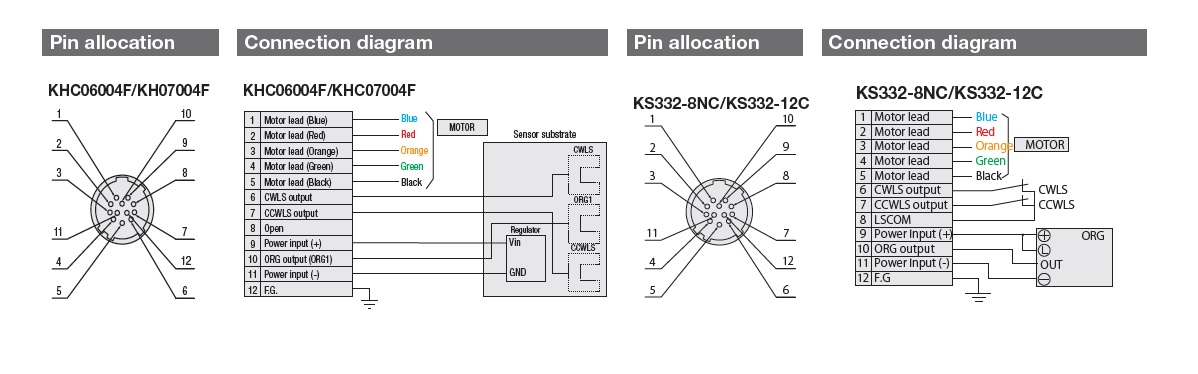

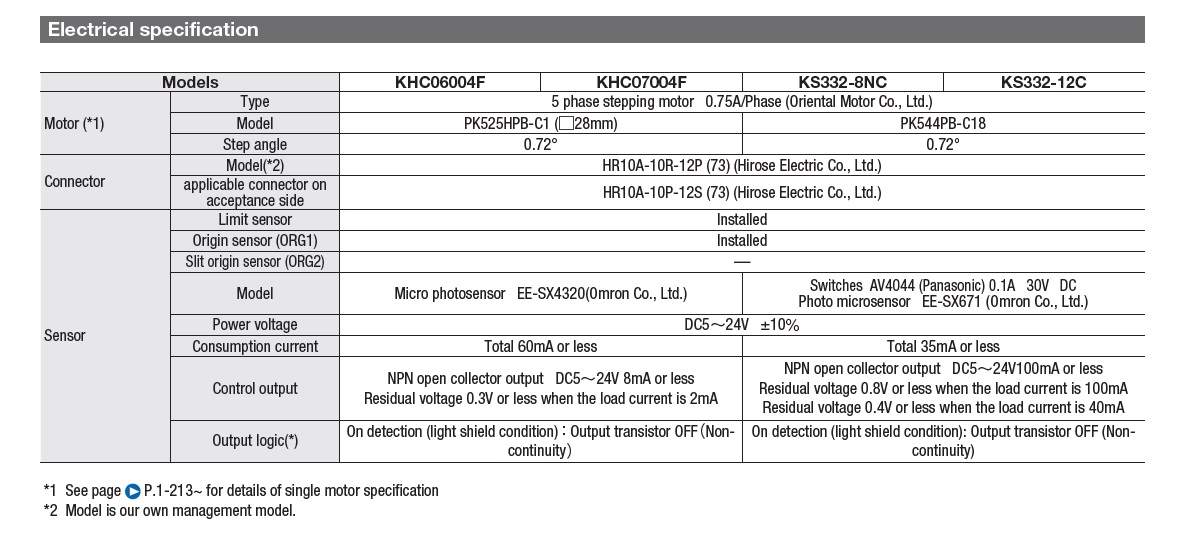

Electrical specifications/cable connection diagram
To request a quotation, please specify the size below and click the "Add to Quotation Request List" button.
Membership registration is required to generate and download CAD data.
