Notes for external light source incident measurement
What is external light source incident measurement…
\r\nSmart LAC H410 can measure the angle of the light source prepared by the user.
If you select External in the image processing section, the light source inside the sensor head is turned off, enabling measurement of an external light source.
\r\nSmart LAC H410 can measure the angle of the light source prepared by the user.
If you select External in the image processing section, the light source inside the sensor head is turned off, enabling measurement of an external light source.

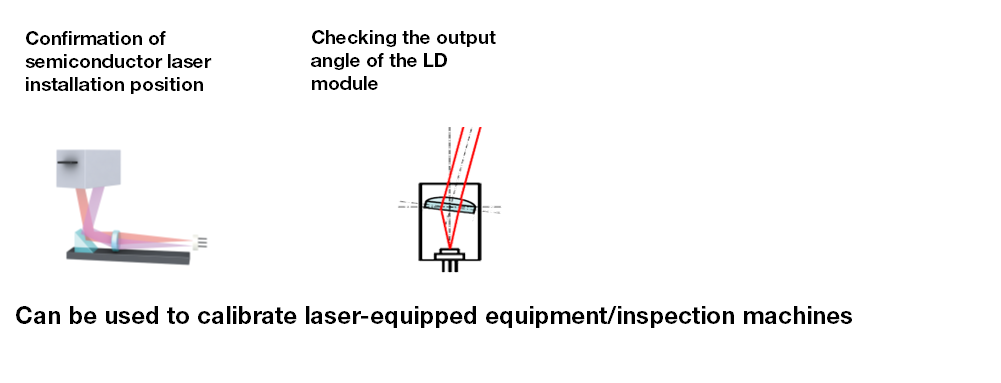

Usage example
Notes
The H410 series can measure wavelengths from 450 to 940 nm.
When shipped from our company, it is calibrated according to the wavelength of the light source inside the sensor head.
Therefore, when measuring at a wavelength different from the light source wavelength, an error occurs in the angle of the measurement result due to the effect of chromatic aberration.
Regarding the angle error, we will prepare the data as a reference value.
Please contact us to request the wavelength and angle error data you are considering using.
When shipped from our company, it is calibrated according to the wavelength of the light source inside the sensor head.
Therefore, when measuring at a wavelength different from the light source wavelength, an error occurs in the angle of the measurement result due to the effect of chromatic aberration.
Regarding the angle error, we will prepare the data as a reference value.
Please contact us to request the wavelength and angle error data you are considering using.
