Spec
Add to List| Basic items | Model | BSS73-40AR |
|---|---|---|

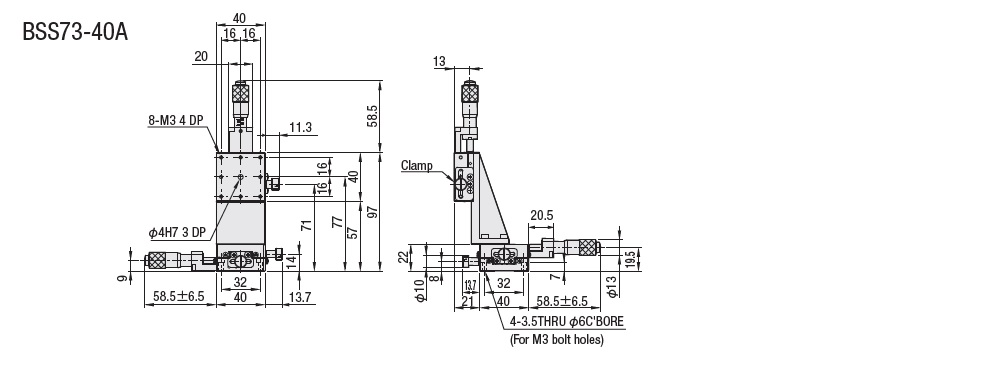

| CAD |

|
|
| List Price (1Qty) | INQUIRY | |
| RoHS | Supporting RoHS 10 substance | |
| Basic specification I | Guide | Linear Ball Guide |
| Stage surface size | 40×40mm | |
| Travel distance[mm] | 13 | |
| Travel distance | XYZ:±6.5mm | |
| Load capacity[kgf] | 5 | |
| Load capacity[N] | 49 | |
| body color | Silver | |
| Main material | Stainless steel | |
| Surface finishing | Electroless nickel plating | |
| Basic specification II | Feeding type : Micrometer head |
Micrometer(Standard) (P=0.5mm) |
| Feeding position | Center | |
| Operating position | Opposite attached | |
| Clamp method | Standard | |
| Grease specification | Standard grease | |
| Resolution | Micrometer minimum reading [μm/scale] |
10 |
| Travel accuracy | Travel accuracy: Straightness[Withinμm] | 3 |
| Travel accuracy: Pitching [Within″] |
40 | |
| Travel accuracy: Yawing [Within″] |
20 | |
| Motion vertical degree[Within μm] | 35 | |
| Stiffness | Allowable load for moment: Pitch[N・m] | 4.5 |
| Allowable load for moment: Yaw [N・m] | 5 | |
| Allowable load for moment: Yaw[N・m] | 4.5 | |
| Moment stiffness: Pitch[″/N・cm] | 1.15 | |
| Moment stiffness: Yaw [″/N・cm] | 0.89 | |
| Moment stiffness: Roll[″/N・cm] | 1.27 | |
| Tolerance | Vertical degree[Withinμm] | 95 |
| Weight | Weight[kg] | 0.66 |
| Accessory | Hexagon socket bolt | M3-10[4pcs] |
