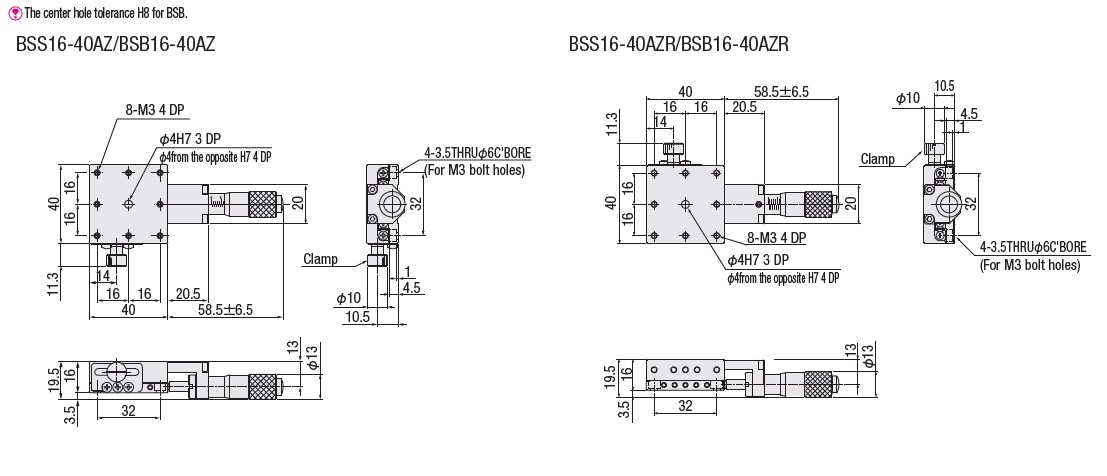

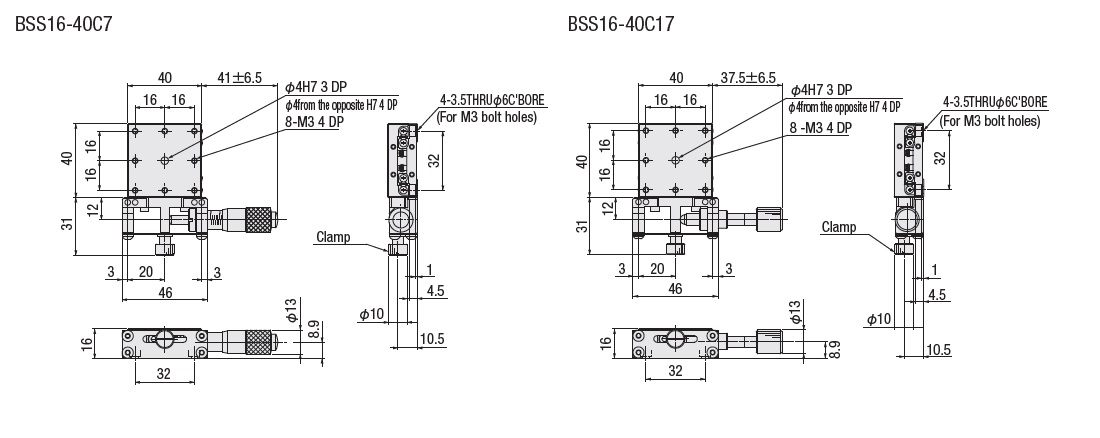

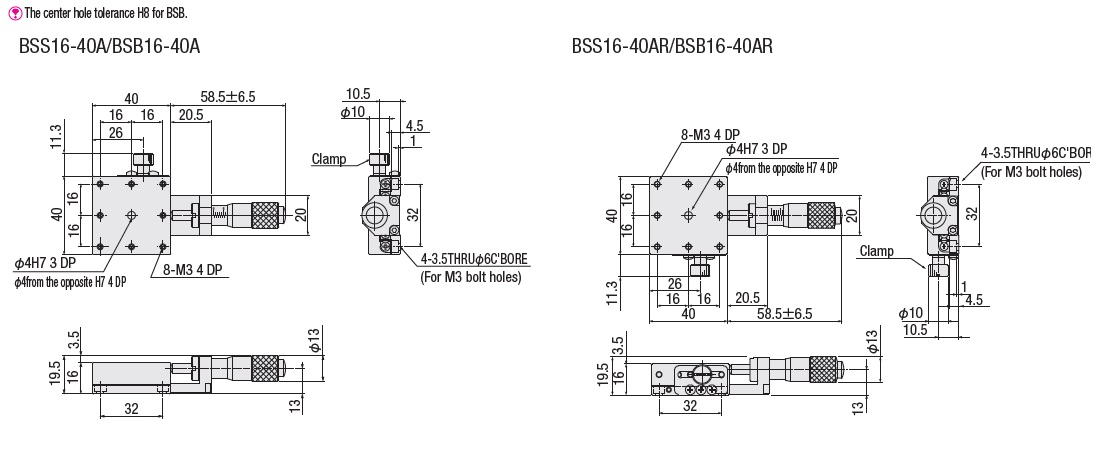

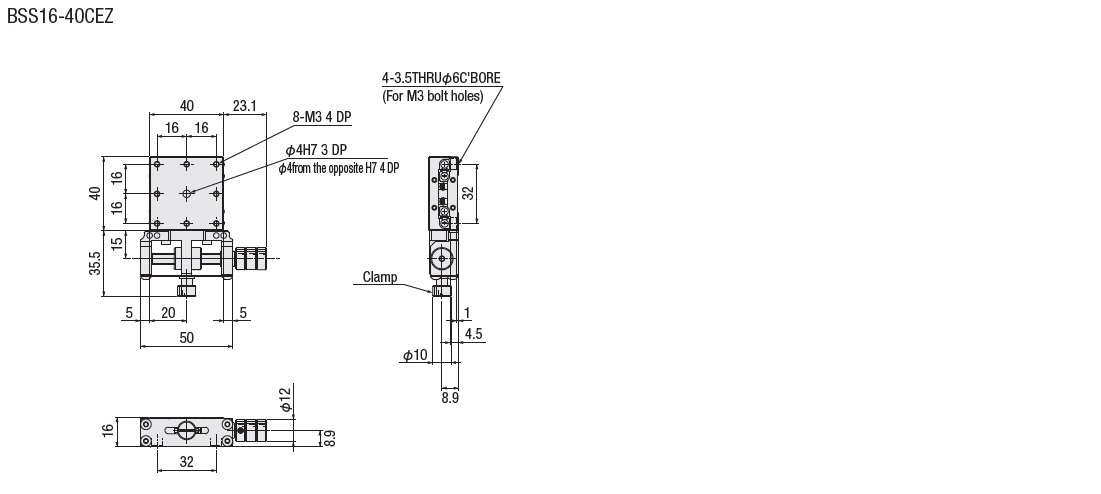

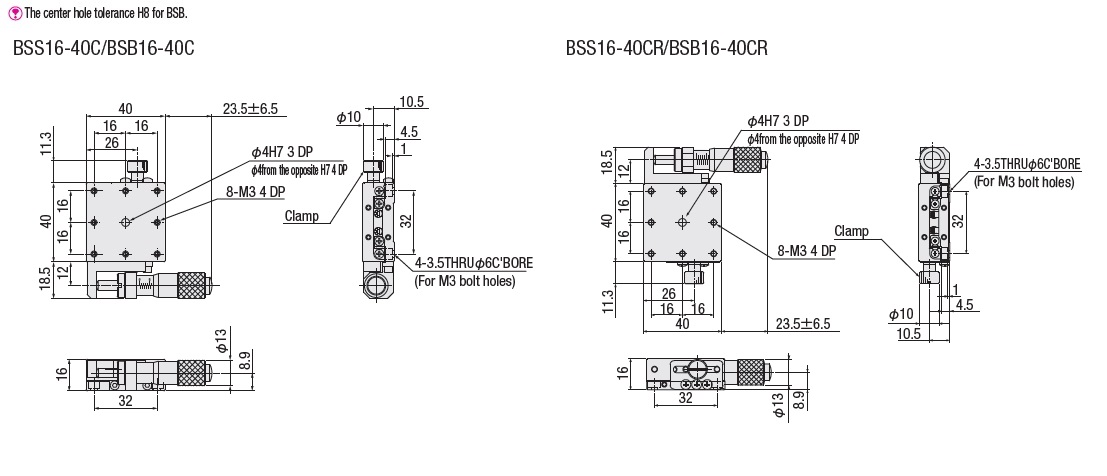

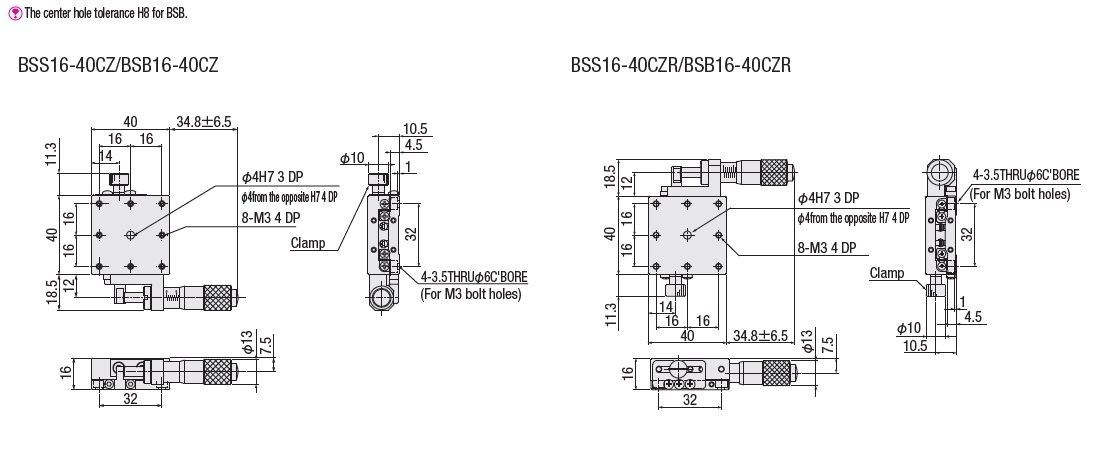

Add to List| Basic items | Model | BSB16-40AZ |
|---|---|---|
| CAD |
|
|
| List Price (1Qty) | INQUIRY | |
| RoHS | Supporting RoHS 10 substance | |
| Basic specification I | Guide | Linear Ball Guide |
| Stage surface size | 40×40mm | |
| Travel distance[mm] | 13 | |
| Travel distance | ±6.5mm | |
| Load capacity(Horizontal use)[kgf] | 10 | |
| Load capacity(Vertical use)[kgf] | 5 | |
| Load capacity(Horizontal use)[N] | 98 | |
| Load capacity(Vertical use)[N] | 49 | |
| body color | Black | |
| Main material | Stainless Steel | |
| Surface finishing | Low Temperature Black Chrome Plating | |
| Basic specification II | Feeding type : Micrometer head |
Micrometer(Standard) (P=0.5mm) |

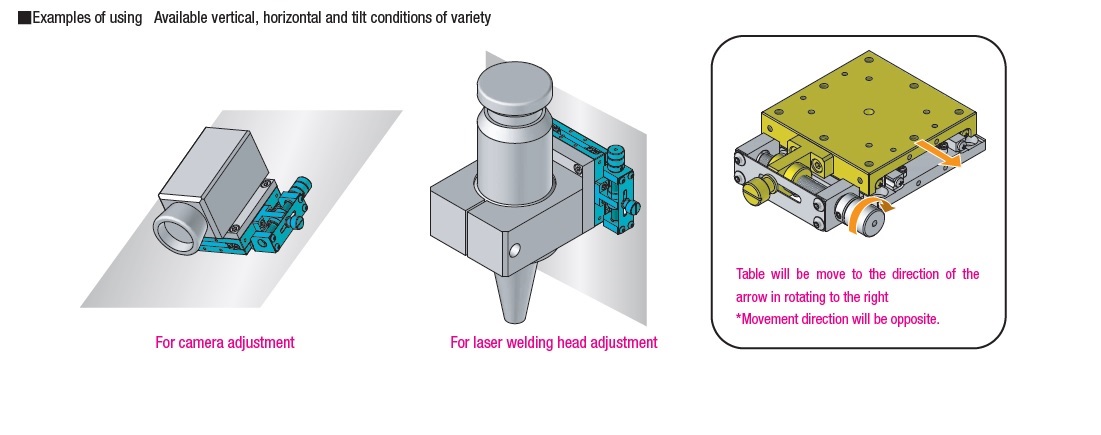

| Feeding position | Center | |
| Operating position | Vertically attached | |

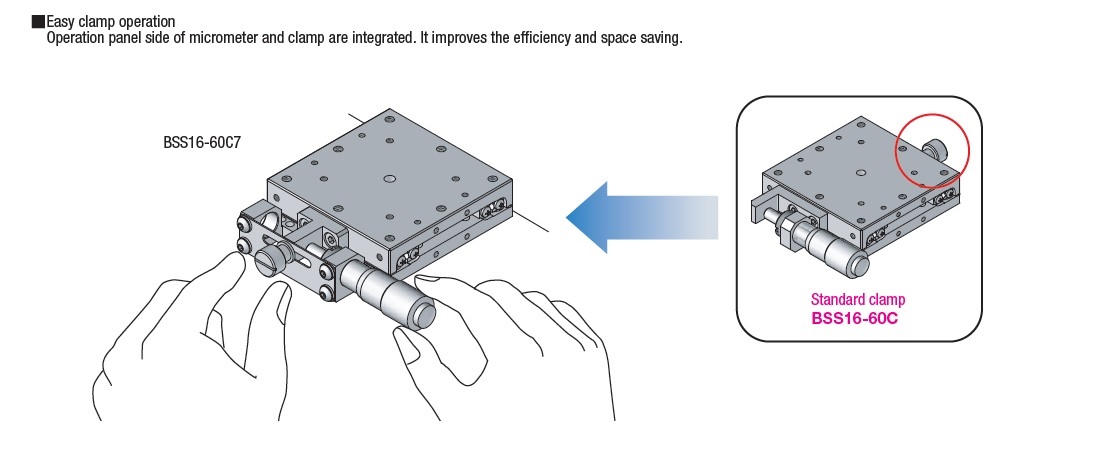

| Clamp method | Standard | |
| Grease specification | Standard grease | |
| Resolution | Micrometer minimum reading [μm/scale] |
10 |
| Travel accuracy | Travel accuracy: Straightness[Withinμm] | 3 |
| Travel accuracy: Pitching [Within″] |
25 | |
| Travel accuracy: Yawing [Within″] |
15 | |
| Motion parallelism[Within μm] | 7 | |
| Stiffness | Allowable load for moment: Pitch[N・m] | 5 |
| Allowable load for moment: Yaw [N・m] | 5 | |
| Allowable load for moment: Yaw[N・m] | 5 | |
| Moment stiffness: Pitch[″/N・cm] | 0.42 | |
| Moment stiffness: Yaw [″/N・cm] | 0.35 | |
| Moment stiffness: Roll[″/N・cm] | 0.21 | |
| Tolerance | Parallelism of travel[within μm] | 15 |
| Weight | Weight[kg] | 0.23 |
| Accessory | Hexagon socket bolt | M3-6[4pcs] |
