Table surface height | 15mm(Without cover) 21mm(With cover) |
Cover | Available|None |
Accuracy | Advanced|Precision Grade |
Ball screw φ diameter-lead [mm] | φ5 Lead 2 |
Grease: Type | Low dust generation|Standard |
Grease: lubrication unit | Available|None |

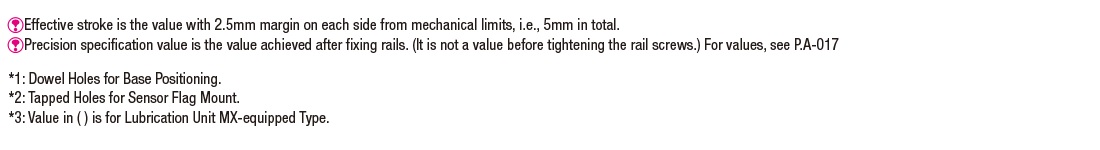

Effective stroke[mm] | 26.9~151.9 |

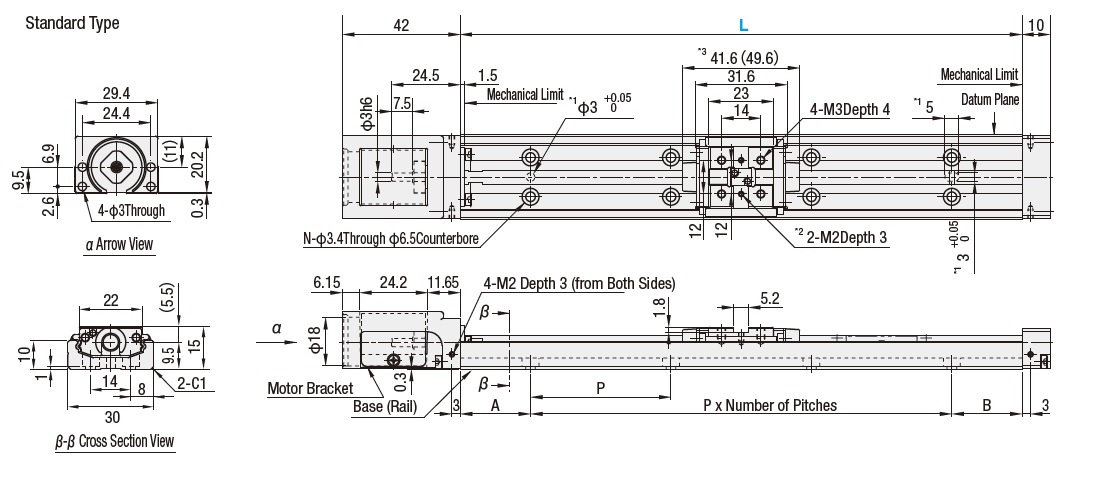

Base Length[mm] | 75~200 |
Base width [mm] | 30 |
