Spec List

preview

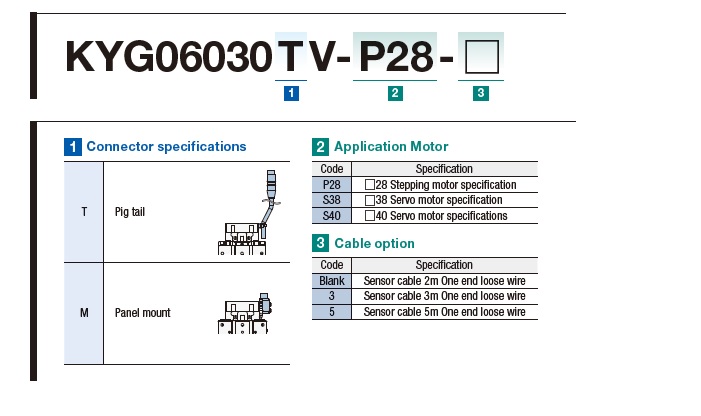

Model	Stage surface size	Travel distance[mm]	Load capacity(Horizontal use)[kgf]	Guide	Cover	Connector specifications	Ball screw φ diameter -Lead [mm]	Motorless: Applicable size	MAX Speed[mm/sec] ※ Standard motor spec	Grease change	Main material	Accessory cable	Resolution Standard motor spec	Single axis accuracy specification Uni-directional positioning accuracy [Within μm]	Single axis accuracy specification Repeatability positioning accuracy [Within ±μm]	Single axis accuracy specification Lost motion [μm]	Single axis accuracy specification Straightness[Withinμm]	Single axis accuracy specification Pitching[Within ″]	Single axis accuracy specification Yawing[Within ″]	Perpendicularity(Full stroke) [Within μm]	Weight[kg]	CAD	Qty	Estimate
KYG06030MV-P28	60×70mm	30	9	Linear Ball Guide	None	Panel mount	φ8 Lead 1	□28 Stepping motor specification	20	Standard grease (AFF standard)	Special Steel Electroless nickel plating	Sensor cable 2m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.4			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030MV-P28">
KYG06030MV-P28-3	60×70mm	30	9	Linear Ball Guide	None	Panel mount	φ8 Lead 1	□28 Stepping motor specification	20	Standard grease (AFF standard)	Special Steel Electroless nickel plating	Sensor cable 3m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.4			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030MV-P28-3">
KYG06030MV-P28-3-K	60×70mm	30	9	Linear Ball Guide	None	Panel mount	φ8 Lead 1	□28 Stepping motor specification	20	LG2(Clean grease)	Special Steel Electroless nickel plating	Sensor cable 3m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.4			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030MV-P28-3-K">
KYG06030MV-P28-3-L	60×70mm	30	9	Linear Ball Guide	None	Panel mount	φ8 Lead 1	□28 Stepping motor specification	20	Fomblin YVAC2 (vacuum grease)	Special Steel Electroless nickel plating	Sensor cable 3m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.4			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030MV-P28-3-L">
KYG06030MV-P28-5	60×70mm	30	9	Linear Ball Guide	None	Panel mount	φ8 Lead 1	□28 Stepping motor specification	20	Standard grease (AFF standard)	Special Steel Electroless nickel plating	Sensor cable 5m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.4			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030MV-P28-5">
KYG06030MV-P28-5-K	60×70mm	30	9	Linear Ball Guide	None	Panel mount	φ8 Lead 1	□28 Stepping motor specification	20	LG2(Clean grease)	Special Steel Electroless nickel plating	Sensor cable 5m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.4			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030MV-P28-5-K">
KYG06030MV-P28-5-L	60×70mm	30	9	Linear Ball Guide	None	Panel mount	φ8 Lead 1	□28 Stepping motor specification	20	Fomblin YVAC2 (vacuum grease)	Special Steel Electroless nickel plating	Sensor cable 5m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.4			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030MV-P28-5-L">
KYG06030MV-P28-K	60×70mm	30	9	Linear Ball Guide	None	Panel mount	φ8 Lead 1	□28 Stepping motor specification	20	LG2(Clean grease)	Special Steel Electroless nickel plating	Sensor cable 2m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.4			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030MV-P28-K">
KYG06030MV-P28-L	60×70mm	30	9	Linear Ball Guide	None	Panel mount	φ8 Lead 1	□28 Stepping motor specification	20	Fomblin YVAC2 (vacuum grease)	Special Steel Electroless nickel plating	Sensor cable 2m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.4			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030MV-P28-L">
KYG06030MV-S38	60×70mm	30	9	Linear Ball Guide	None	Panel mount	φ8 Lead 1	□38 Servo motor specification	20	Standard grease (AFF standard)	Special Steel Electroless nickel plating	Sensor cable 2m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.48			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030MV-S38">
KYG06030MV-S38-3	60×70mm	30	9	Linear Ball Guide	None	Panel mount	φ8 Lead 1	□38 Servo motor specification	20	Standard grease (AFF standard)	Special Steel Electroless nickel plating	Sensor cable 3m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.48			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030MV-S38-3">
KYG06030MV-S38-3-K	60×70mm	30	9	Linear Ball Guide	None	Panel mount	φ8 Lead 1	□38 Servo motor specification	20	LG2(Clean grease)	Special Steel Electroless nickel plating	Sensor cable 3m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.48			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030MV-S38-3-K">
KYG06030MV-S38-3-L	60×70mm	30	9	Linear Ball Guide	None	Panel mount	φ8 Lead 1	□38 Servo motor specification	20	Fomblin YVAC2 (vacuum grease)	Special Steel Electroless nickel plating	Sensor cable 3m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.48			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030MV-S38-3-L">
KYG06030MV-S38-5	60×70mm	30	9	Linear Ball Guide	None	Panel mount	φ8 Lead 1	□38 Servo motor specification	20	Standard grease (AFF standard)	Special Steel Electroless nickel plating	Sensor cable 5m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.48			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030MV-S38-5">
KYG06030MV-S38-5-K	60×70mm	30	9	Linear Ball Guide	None	Panel mount	φ8 Lead 1	□38 Servo motor specification	20	LG2(Clean grease)	Special Steel Electroless nickel plating	Sensor cable 5m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.48			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030MV-S38-5-K">
KYG06030MV-S38-5-L	60×70mm	30	9	Linear Ball Guide	None	Panel mount	φ8 Lead 1	□38 Servo motor specification	20	Fomblin YVAC2 (vacuum grease)	Special Steel Electroless nickel plating	Sensor cable 5m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.48			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030MV-S38-5-L">
KYG06030MV-S38-K	60×70mm	30	9	Linear Ball Guide	None	Panel mount	φ8 Lead 1	□38 Servo motor specification	20	LG2(Clean grease)	Special Steel Electroless nickel plating	Sensor cable 2m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.48			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030MV-S38-K">
KYG06030MV-S38-L	60×70mm	30	9	Linear Ball Guide	None	Panel mount	φ8 Lead 1	□38 Servo motor specification	20	Fomblin YVAC2 (vacuum grease)	Special Steel Electroless nickel plating	Sensor cable 2m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.48			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030MV-S38-L">
KYG06030MV-S40	60×70mm	30	9	Linear Ball Guide	None	Panel mount	φ8 Lead 1	□40 Servo motor specifications	20	Standard grease (AFF standard)	Special Steel Electroless nickel plating	Sensor cable 2m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.48			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030MV-S40">
KYG06030MV-S40-3	60×70mm	30	9	Linear Ball Guide	None	Panel mount	φ8 Lead 1	□40 Servo motor specifications	20	Standard grease (AFF standard)	Special Steel Electroless nickel plating	Sensor cable 3m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.48			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030MV-S40-3">
KYG06030MV-S40-3-K	60×70mm	30	9	Linear Ball Guide	None	Panel mount	φ8 Lead 1	□40 Servo motor specifications	20	LG2(Clean grease)	Special Steel Electroless nickel plating	Sensor cable 3m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.48			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030MV-S40-3-K">
KYG06030MV-S40-3-L	60×70mm	30	9	Linear Ball Guide	None	Panel mount	φ8 Lead 1	□40 Servo motor specifications	20	Fomblin YVAC2 (vacuum grease)	Special Steel Electroless nickel plating	Sensor cable 3m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.48			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030MV-S40-3-L">
KYG06030MV-S40-5	60×70mm	30	9	Linear Ball Guide	None	Panel mount	φ8 Lead 1	□40 Servo motor specifications	20	Standard grease (AFF standard)	Special Steel Electroless nickel plating	Sensor cable 5m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.48			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030MV-S40-5">
KYG06030MV-S40-5-K	60×70mm	30	9	Linear Ball Guide	None	Panel mount	φ8 Lead 1	□40 Servo motor specifications	20	LG2(Clean grease)	Special Steel Electroless nickel plating	Sensor cable 5m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.48			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030MV-S40-5-K">
KYG06030MV-S40-5-L	60×70mm	30	9	Linear Ball Guide	None	Panel mount	φ8 Lead 1	□40 Servo motor specifications	20	Fomblin YVAC2 (vacuum grease)	Special Steel Electroless nickel plating	Sensor cable 5m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.48			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030MV-S40-5-L">
KYG06030MV-S40-K	60×70mm	30	9	Linear Ball Guide	None	Panel mount	φ8 Lead 1	□40 Servo motor specifications	20	LG2(Clean grease)	Special Steel Electroless nickel plating	Sensor cable 2m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.48			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030MV-S40-K">
KYG06030MV-S40-L	60×70mm	30	9	Linear Ball Guide	None	Panel mount	φ8 Lead 1	□40 Servo motor specifications	20	Fomblin YVAC2 (vacuum grease)	Special Steel Electroless nickel plating	Sensor cable 2m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.48			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030MV-S40-L">

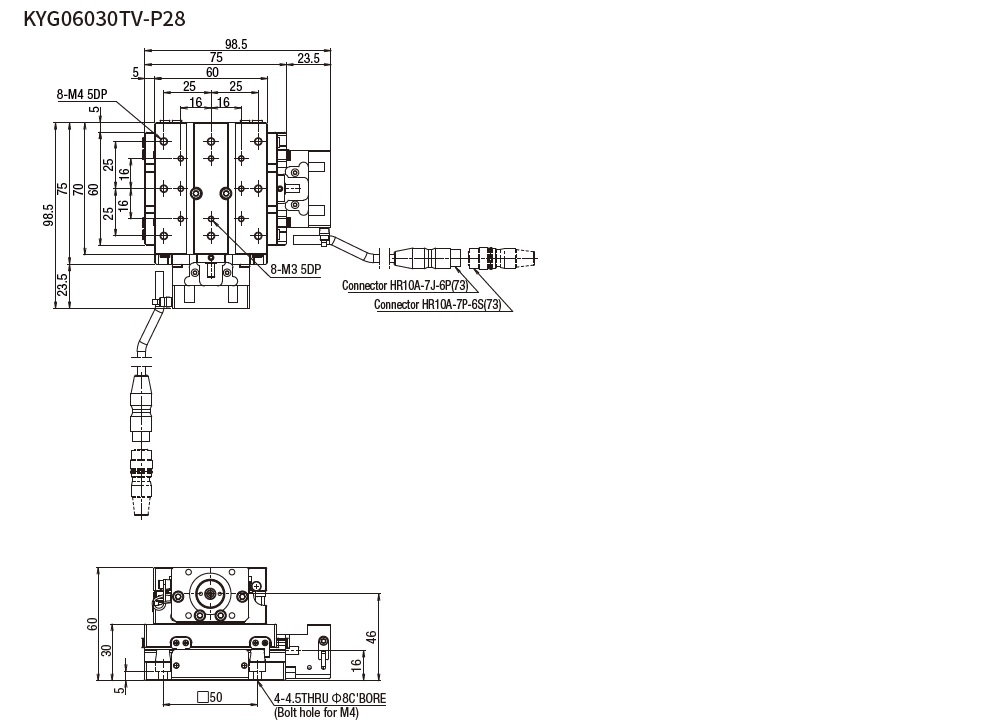

KYG06030TV-P28	60×70mm	30	9	Linear Ball Guide	None	Pig tail	φ8 Lead 1	□28 Stepping motor specification	20	Standard grease (AFF standard)	Special Steel Electroless nickel plating	Sensor cable 2m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.4			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030TV-P28">
KYG06030TV-P28-3	60×70mm	30	9	Linear Ball Guide	None	Pig tail	φ8 Lead 1	□28 Stepping motor specification	20	Standard grease (AFF standard)	Special Steel Electroless nickel plating	Sensor cable 3m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.4			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030TV-P28-3">
KYG06030TV-P28-3-K	60×70mm	30	9	Linear Ball Guide	None	Pig tail	φ8 Lead 1	□28 Stepping motor specification	20	LG2(Clean grease)	Special Steel Electroless nickel plating	Sensor cable 3m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.4			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030TV-P28-3-K">
KYG06030TV-P28-3-L	60×70mm	30	9	Linear Ball Guide	None	Pig tail	φ8 Lead 1	□28 Stepping motor specification	20	Fomblin YVAC2 (vacuum grease)	Special Steel Electroless nickel plating	Sensor cable 3m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.4			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030TV-P28-3-L">
KYG06030TV-P28-5	60×70mm	30	9	Linear Ball Guide	None	Pig tail	φ8 Lead 1	□28 Stepping motor specification	20	Standard grease (AFF standard)	Special Steel Electroless nickel plating	Sensor cable 5m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.4			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030TV-P28-5">
KYG06030TV-P28-5-K	60×70mm	30	9	Linear Ball Guide	None	Pig tail	φ8 Lead 1	□28 Stepping motor specification	20	LG2(Clean grease)	Special Steel Electroless nickel plating	Sensor cable 5m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.4			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030TV-P28-5-K">
KYG06030TV-P28-5-L	60×70mm	30	9	Linear Ball Guide	None	Pig tail	φ8 Lead 1	□28 Stepping motor specification	20	Fomblin YVAC2 (vacuum grease)	Special Steel Electroless nickel plating	Sensor cable 5m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.4			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030TV-P28-5-L">
KYG06030TV-P28-K	60×70mm	30	9	Linear Ball Guide	None	Pig tail	φ8 Lead 1	□28 Stepping motor specification	20	LG2(Clean grease)	Special Steel Electroless nickel plating	Sensor cable 2m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.4			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030TV-P28-K">
KYG06030TV-P28-L	60×70mm	30	9	Linear Ball Guide	None	Pig tail	φ8 Lead 1	□28 Stepping motor specification	20	Fomblin YVAC2 (vacuum grease)	Special Steel Electroless nickel plating	Sensor cable 2m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.4			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030TV-P28-L">
KYG06030TV-S38	60×70mm	30	9	Linear Ball Guide	None	Pig tail	φ8 Lead 1	□38 Servo motor specification	20	Standard grease (AFF standard)	Special Steel Electroless nickel plating	Sensor cable 2m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.48			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030TV-S38">
KYG06030TV-S38-3	60×70mm	30	9	Linear Ball Guide	None	Pig tail	φ8 Lead 1	□38 Servo motor specification	20	Standard grease (AFF standard)	Special Steel Electroless nickel plating	Sensor cable 3m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.48			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030TV-S38-3">
KYG06030TV-S38-3-K	60×70mm	30	9	Linear Ball Guide	None	Pig tail	φ8 Lead 1	□38 Servo motor specification	20	LG2(Clean grease)	Special Steel Electroless nickel plating	Sensor cable 3m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.48			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030TV-S38-3-K">
KYG06030TV-S38-3-L	60×70mm	30	9	Linear Ball Guide	None	Pig tail	φ8 Lead 1	□38 Servo motor specification	20	Fomblin YVAC2 (vacuum grease)	Special Steel Electroless nickel plating	Sensor cable 3m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.48			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030TV-S38-3-L">
KYG06030TV-S38-5	60×70mm	30	9	Linear Ball Guide	None	Pig tail	φ8 Lead 1	□38 Servo motor specification	20	Standard grease (AFF standard)	Special Steel Electroless nickel plating	Sensor cable 5m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.48			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030TV-S38-5">
KYG06030TV-S38-5-K	60×70mm	30	9	Linear Ball Guide	None	Pig tail	φ8 Lead 1	□38 Servo motor specification	20	LG2(Clean grease)	Special Steel Electroless nickel plating	Sensor cable 5m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.48			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030TV-S38-5-K">
KYG06030TV-S38-5-L	60×70mm	30	9	Linear Ball Guide	None	Pig tail	φ8 Lead 1	□38 Servo motor specification	20	Fomblin YVAC2 (vacuum grease)	Special Steel Electroless nickel plating	Sensor cable 5m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.48			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030TV-S38-5-L">
KYG06030TV-S38-K	60×70mm	30	9	Linear Ball Guide	None	Pig tail	φ8 Lead 1	□38 Servo motor specification	20	LG2(Clean grease)	Special Steel Electroless nickel plating	Sensor cable 2m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.48			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030TV-S38-K">
KYG06030TV-S38-L	60×70mm	30	9	Linear Ball Guide	None	Pig tail	φ8 Lead 1	□38 Servo motor specification	20	Fomblin YVAC2 (vacuum grease)	Special Steel Electroless nickel plating	Sensor cable 2m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.48			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030TV-S38-L">

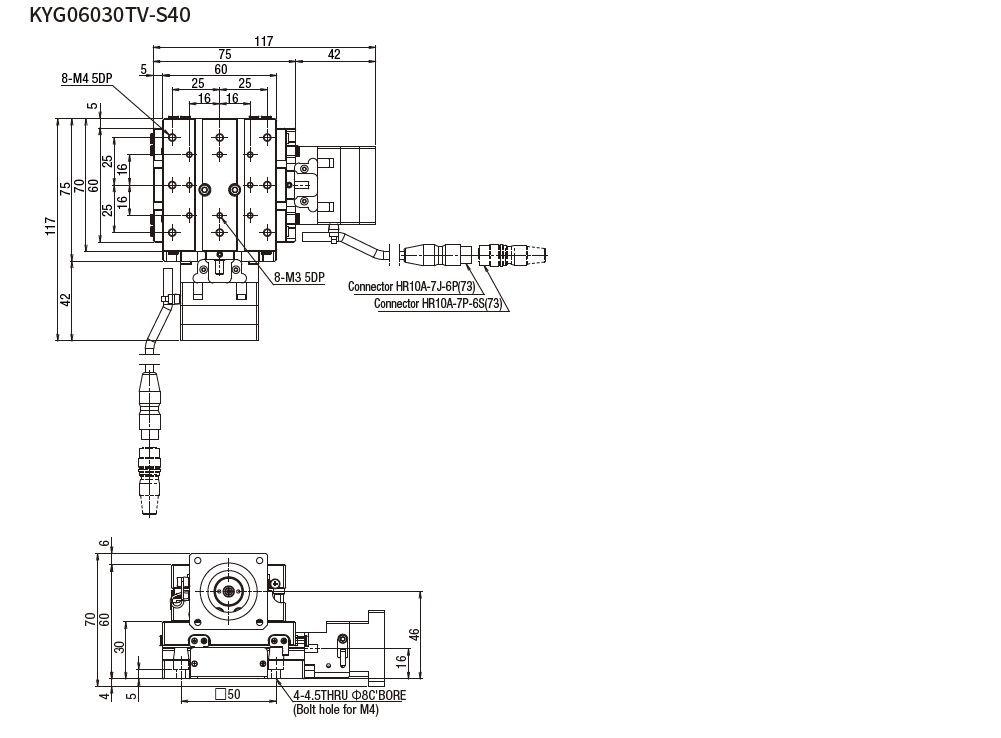

KYG06030TV-S40	60×70mm	30	9	Linear Ball Guide	None	Pig tail	φ8 Lead 1	□40 Servo motor specifications	20	Standard grease (AFF standard)	Special Steel Electroless nickel plating	Sensor cable 2m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.48			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030TV-S40">
KYG06030TV-S40-3	60×70mm	30	9	Linear Ball Guide	None	Pig tail	φ8 Lead 1	□40 Servo motor specifications	20	Standard grease (AFF standard)	Special Steel Electroless nickel plating	Sensor cable 3m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.48			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030TV-S40-3">
KYG06030TV-S40-3-K	60×70mm	30	9	Linear Ball Guide	None	Pig tail	φ8 Lead 1	□40 Servo motor specifications	20	LG2(Clean grease)	Special Steel Electroless nickel plating	Sensor cable 3m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.48			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030TV-S40-3-K">
KYG06030TV-S40-3-L	60×70mm	30	9	Linear Ball Guide	None	Pig tail	φ8 Lead 1	□40 Servo motor specifications	20	Fomblin YVAC2 (vacuum grease)	Special Steel Electroless nickel plating	Sensor cable 3m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.48			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030TV-S40-3-L">
KYG06030TV-S40-5	60×70mm	30	9	Linear Ball Guide	None	Pig tail	φ8 Lead 1	□40 Servo motor specifications	20	Standard grease (AFF standard)	Special Steel Electroless nickel plating	Sensor cable 5m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.48			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030TV-S40-5">
KYG06030TV-S40-5-K	60×70mm	30	9	Linear Ball Guide	None	Pig tail	φ8 Lead 1	□40 Servo motor specifications	20	LG2(Clean grease)	Special Steel Electroless nickel plating	Sensor cable 5m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.48			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030TV-S40-5-K">
KYG06030TV-S40-5-L	60×70mm	30	9	Linear Ball Guide	None	Pig tail	φ8 Lead 1	□40 Servo motor specifications	20	Fomblin YVAC2 (vacuum grease)	Special Steel Electroless nickel plating	Sensor cable 5m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.48			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030TV-S40-5-L">
KYG06030TV-S40-K	60×70mm	30	9	Linear Ball Guide	None	Pig tail	φ8 Lead 1	□40 Servo motor specifications	20	LG2(Clean grease)	Special Steel Electroless nickel plating	Sensor cable 2m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.48			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030TV-S40-K">
KYG06030TV-S40-L	60×70mm	30	9	Linear Ball Guide	None	Pig tail	φ8 Lead 1	□40 Servo motor specifications	20	Fomblin YVAC2 (vacuum grease)	Special Steel Electroless nickel plating	Sensor cable 2m One end loose wire	2μm/Pulse(Full-step)	5	0.5	1	3	20	15	15	1.48			【New】 Motorless XY-Axis Linear Ball Guide :KYG06030V" id="KYG06030TV-S40-L">
