Motorized Stage
Motorless X-Axis Stage
Motorless XY-Axis Stage
Motorless Z-Axis Stage
Motorless XYZ-Axis Stage
Motorless Horizontal Z-Axis Stage
Motorless X-Axis Stage
Motorless X-Axis
Linear Ball Guide
:KXL06V-C

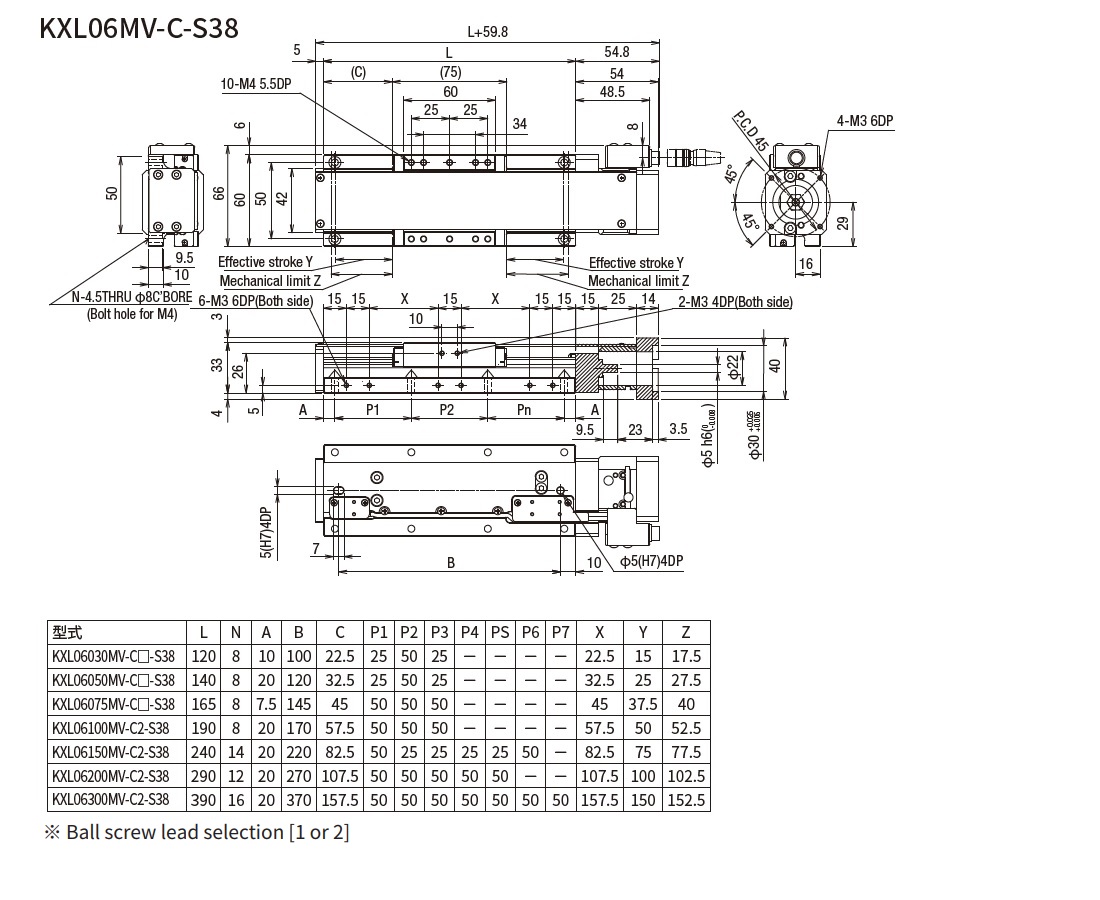

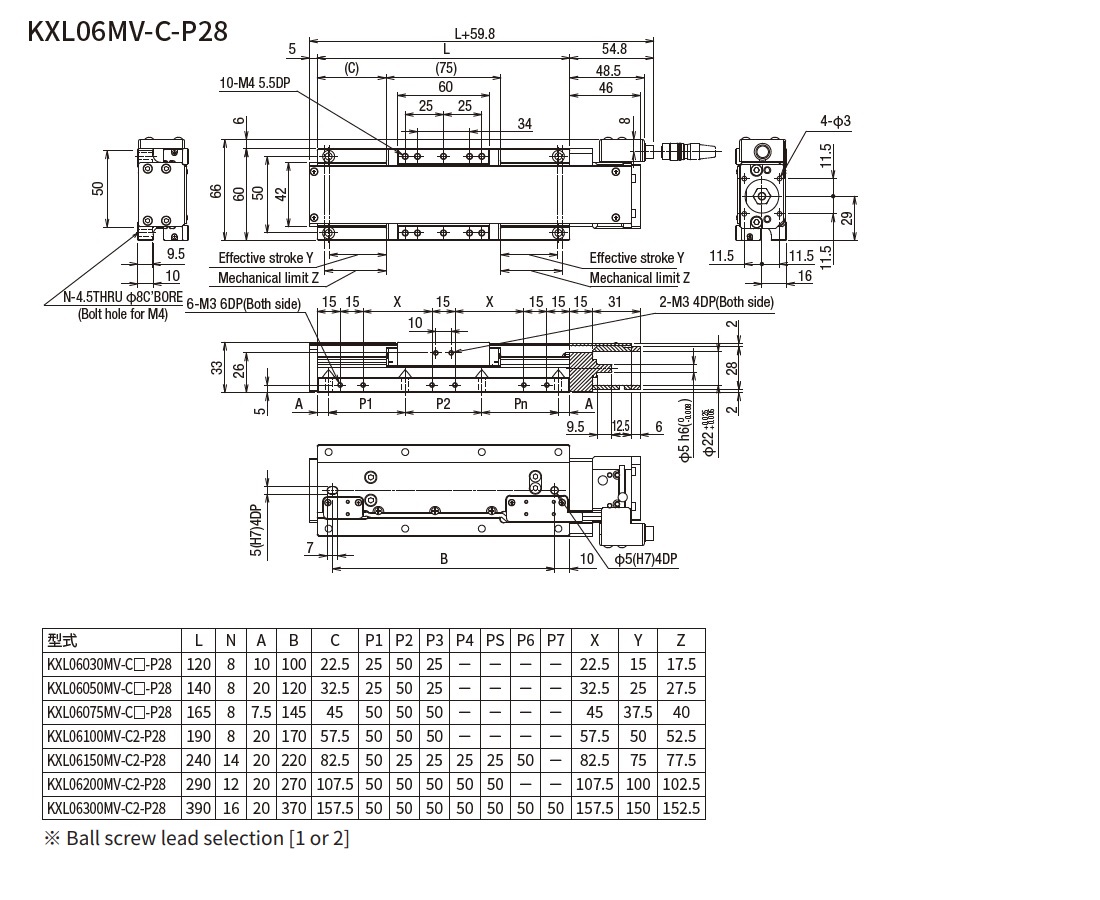

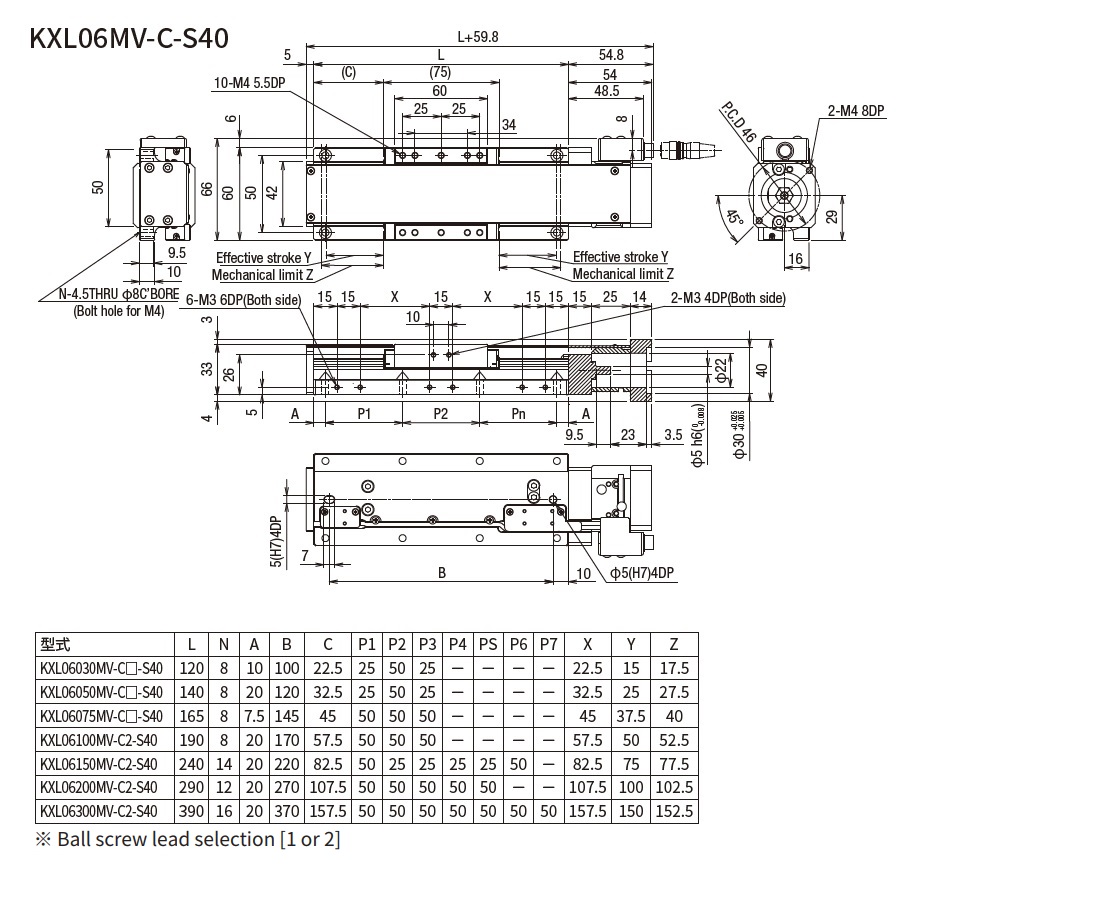

Dimensions

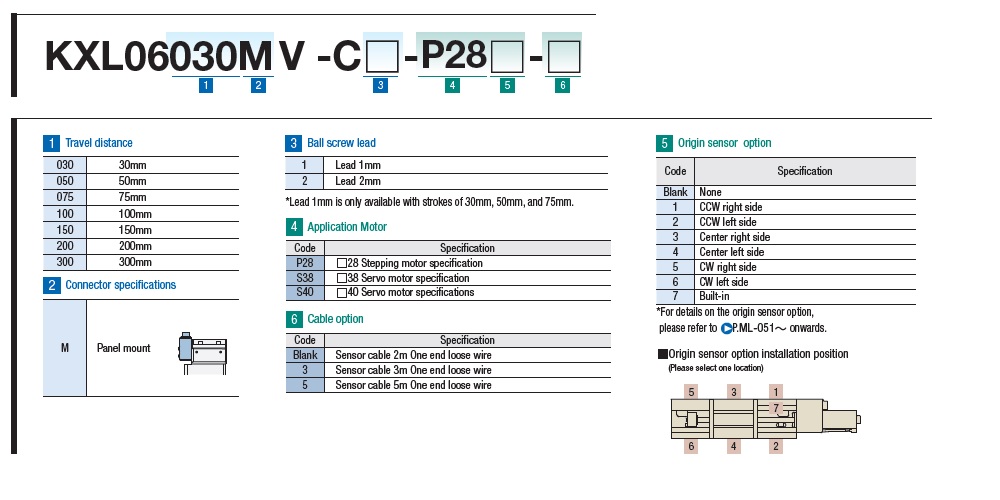

Model configuration/Option code
Electrical specifications
Precautions for handling motorless products
Spec
Stage surface size60×60mm
Travel distance[mm]30～300
Load capacity(Horizontal use)[kgf]12
GuideLinear Ball Guide
CoverAvailable
Ball screw φ diameter
-Lead [mm]		φ8 Lead 1|φ8 Lead 2
Motorless: Applicable size□28 Stepping motor specification |□38 Servo motor specification|□40 Servo motor specifications
Main material Stainless
(Electroless nickel plating)
Repeatability positioning accuracy
[Within±μm]		0.5
Straightness[Withinμm]3～7
Option
Ball screw[Lead mm]
Motorless: Applicable size
MAX Speed[mm/sec]
※ Standard motor spec
Grease change
Relevant product
Spec List
KXL06030V-C1-P28 60×60mm 30 12 Linear Ball Guide Available φ8 Lead 1 □28 Stepping motor specification 30 Standard grease (AFF standard) Stainless
(Electroless nickel plating) 		Sensor cable
(2m One end loose wire) 		2μm/Pulse(Full-step) 5 0.5 1 3 20 15 1.12 3D
KXL06030V-C1-S38 60×60mm 30 12 Linear Ball Guide Available φ8 Lead 1 □38 Servo motor specification 30 Standard grease (AFF standard) Stainless
(Electroless nickel plating) 		Sensor cable
(2m One end loose wire) 		2μm/Pulse(Full-step) 5 0.5 1 3 20 15 1.16 3D
KXL06030V-C1-S40 60×60mm 30 12 Linear Ball Guide Available φ8 Lead 1 □40 Servo motor specifications 30 Standard grease (AFF standard) Stainless
(Electroless nickel plating) 		Sensor cable
(2m One end loose wire) 		2μm/Pulse(Full-step) 5 0.5 1 3 20 15 1.16 3D
KXL06030V-C2-P28 60×60mm 30 12 Linear Ball Guide Available φ8 Lead 2 □28 Stepping motor specification 35 Standard grease (AFF standard) Stainless
(Electroless nickel plating) 		Sensor cable
(2m One end loose wire) 		4μm/Pulse(Full-step) 5 0.5 1 3 20 15 1.12 3D
KXL06030V-C2-S38 60×60mm 30 12 Linear Ball Guide Available φ8 Lead 2 □38 Servo motor specification 35 Standard grease (AFF standard) Stainless
(Electroless nickel plating) 		Sensor cable
(2m One end loose wire) 		4μm/Pulse(Full-step) 5 0.5 1 3 20 15 1.16 3D
KXL06030V-C2-S40 60×60mm 30 12 Linear Ball Guide Available φ8 Lead 2 □40 Servo motor specifications 35 Standard grease (AFF standard) Stainless
(Electroless nickel plating) 		Sensor cable
(2m One end loose wire) 		4μm/Pulse(Full-step) 5 0.5 1 3 20 15 1.16 3D
KXL06050V-C1-P28 60×60mm 50 12 Linear Ball Guide Available φ8 Lead 1 □28 Stepping motor specification 30 Standard grease (AFF standard) Stainless
(Electroless nickel plating) 		Sensor cable
(2m One end loose wire) 		2μm/Pulse(Full-step) 5 0.5 1 3 20 15 1.22 3D
KXL06050V-C1-S38 60×60mm 50 12 Linear Ball Guide Available φ8 Lead 1 □38 Servo motor specification 30 Standard grease (AFF standard) Stainless
(Electroless nickel plating) 		Sensor cable
(2m One end loose wire) 		2μm/Pulse(Full-step) 5 0.5 1 3 20 15 1.26 3D
KXL06050V-C1-S40 60×60mm 50 12 Linear Ball Guide Available φ8 Lead 1 □40 Servo motor specifications 30 Standard grease (AFF standard) Stainless
(Electroless nickel plating) 		Sensor cable
(2m One end loose wire) 		2μm/Pulse(Full-step) 5 0.5 1 3 20 15 1.26 3D
KXL06050V-C2-P28 60×60mm 50 12 Linear Ball Guide Available φ8 Lead 2 □28 Stepping motor specification 35 Standard grease (AFF standard) Stainless
(Electroless nickel plating) 		Sensor cable
(2m One end loose wire) 		4μm/Pulse(Full-step) 5 0.5 1 3 20 15 1.22 3D
KXL06050V-C2-S38 60×60mm 50 12 Linear Ball Guide Available φ8 Lead 2 □38 Servo motor specification 35 Standard grease (AFF standard) Stainless
(Electroless nickel plating) 		Sensor cable
(2m One end loose wire) 		4μm/Pulse(Full-step) 5 0.5 1 3 20 15 1.26 3D
KXL06050V-C2-S40 60×60mm 50 12 Linear Ball Guide Available φ8 Lead 2 □40 Servo motor specifications 35 Standard grease (AFF standard) Stainless
(Electroless nickel plating) 		Sensor cable
(2m One end loose wire) 		4μm/Pulse(Full-step) 5 0.5 1 3 20 15 1.26 3D
KXL06075V-C1-P28 60×60mm 75 12 Linear Ball Guide Available φ8 Lead 1 □28 Stepping motor specification 30 Standard grease (AFF standard) Stainless
(Electroless nickel plating) 		Sensor cable
(2m One end loose wire) 		2μm/Pulse(Full-step) 7 0.5 1 3 20 15 1.38 3D
KXL06075V-C1-S38 60×60mm 75 12 Linear Ball Guide Available φ8 Lead 1 □38 Servo motor specification 30 Standard grease (AFF standard) Stainless
(Electroless nickel plating) 		Sensor cable
(2m One end loose wire) 		2μm/Pulse(Full-step) 7 0.5 1 3 20 15 1.42 3D
KXL06075V-C1-S40 60×60mm 75 12 Linear Ball Guide Available φ8 Lead 1 □40 Servo motor specifications 30 Standard grease (AFF standard) Stainless
(Electroless nickel plating) 		Sensor cable
(2m One end loose wire) 		2μm/Pulse(Full-step) 7 0.5 1 3 20 15 1.42 3D
KXL06075V-C2-P28 60×60mm 75 12 Linear Ball Guide Available φ8 Lead 2 □28 Stepping motor specification 35 Standard grease (AFF standard) Stainless
(Electroless nickel plating) 		Sensor cable
(2m One end loose wire) 		4μm/Pulse(Full-step) 7 0.5 1 3 20 15 1.38 3D
KXL06075V-C2-S38 60×60mm 75 12 Linear Ball Guide Available φ8 Lead 2 □38 Servo motor specification 35 Standard grease (AFF standard) Stainless
(Electroless nickel plating) 		Sensor cable
(2m One end loose wire) 		4μm/Pulse(Full-step) 7 0.5 1 3 20 15 1.42 3D
KXL06075V-C2-S40 60×60mm 75 12 Linear Ball Guide Available φ8 Lead 2 □40 Servo motor specifications 35 Standard grease (AFF standard) Stainless
(Electroless nickel plating) 		Sensor cable
(2m One end loose wire) 		4μm/Pulse(Full-step) 7 0.5 1 3 20 15 1.42 3D
KXL06100V-C2-P28 60×60mm 100 12 Linear Ball Guide Available φ8 Lead 2 □28 Stepping motor specification 45 Standard grease (AFF standard) Stainless
(Electroless nickel plating) 		Sensor cable
(2m One end loose wire) 		4μm/Pulse(Full-step) 10 0.5 1 5 25 20 1.64 3D
KXL06100V-C2-S38 60×60mm 100 12 Linear Ball Guide Available φ8 Lead 2 □38 Servo motor specification 45 Standard grease (AFF standard) Stainless
(Electroless nickel plating) 		Sensor cable
(2m One end loose wire) 		4μm/Pulse(Full-step) 10 0.5 1 5 25 20 1.68 3D
KXL06100V-C2-S40 60×60mm 100 12 Linear Ball Guide Available φ8 Lead 2 □40 Servo motor specifications 45 Standard grease (AFF standard) Stainless
(Electroless nickel plating) 		Sensor cable
(2m One end loose wire) 		4μm/Pulse(Full-step) 10 0.5 1 5 25 20 1.68 3D
KXL06150V-C2-P28 60×60mm 150 12 Linear Ball Guide Available φ8 Lead 2 □28 Stepping motor specification 45 Standard grease (AFF standard) Stainless
(Electroless nickel plating) 		Sensor cable
(2m One end loose wire) 		4μm/Pulse(Full-step) 15 0.5 1 5 25 20 1.94 3D
KXL06150V-C2-S38 60×60mm 150 12 Linear Ball Guide Available φ8 Lead 2 □38 Servo motor specification 45 Standard grease (AFF standard) Stainless
(Electroless nickel plating) 		Sensor cable
(2m One end loose wire) 		4μm/Pulse(Full-step) 15 0.5 1 5 25 20 1.98 3D
KXL06150V-C2-S40 60×60mm 150 12 Linear Ball Guide Available φ8 Lead 2 □40 Servo motor specifications 45 Standard grease (AFF standard) Stainless
(Electroless nickel plating) 		Sensor cable
(2m One end loose wire) 		4μm/Pulse(Full-step) 15 0.5 1 5 25 20 1.98 3D
KXL06200V-C2-P28 60×60mm 200 12 Linear Ball Guide Available φ8 Lead 2 □28 Stepping motor specification 45 Standard grease (AFF standard) Stainless
(Electroless nickel plating) 		Sensor cable
(2m One end loose wire) 		4μm/Pulse(Full-step) 15 0.5 1 7 30 20 2.26 3D
KXL06200V-C2-S38 60×60mm 200 12 Linear Ball Guide Available φ8 Lead 2 □38 Servo motor specification 45 Standard grease (AFF standard) Stainless
(Electroless nickel plating) 		Sensor cable
(2m One end loose wire) 		4μm/Pulse(Full-step) 15 0.5 1 7 30 20 2.3 3D
KXL06200V-C2-S40 60×60mm 200 12 Linear Ball Guide Available φ8 Lead 2 □40 Servo motor specifications 45 Standard grease (AFF standard) Stainless
(Electroless nickel plating) 		Sensor cable
(2m One end loose wire) 		4μm/Pulse(Full-step) 15 0.5 1 7 30 20 2.3 3D
KXL06300V-C2-P28 60×60mm 300 12 Linear Ball Guide Available φ8 Lead 2 □28 Stepping motor specification 45 Standard grease (AFF standard) Stainless
(Electroless nickel plating) 		Sensor cable
(2m One end loose wire) 		4μm/Pulse(Full-step) 25 0.5 1 7 35 20 2.86 3D
KXL06300V-C2-S38 60×60mm 300 12 Linear Ball Guide Available φ8 Lead 2 □38 Servo motor specification 45 Standard grease (AFF standard) Stainless
(Electroless nickel plating) 		Sensor cable
(2m One end loose wire) 		4μm/Pulse(Full-step) 25 0.5 1 7 35 20 2.9 3D
KXL06300V-C2-S40 60×60mm 300 12 Linear Ball Guide Available φ8 Lead 2 □40 Servo motor specifications 45 Standard grease (AFF standard) Stainless
(Electroless nickel plating) 		Sensor cable
(2m One end loose wire) 		4μm/Pulse(Full-step) 25 0.5 1 7 35 20 2.9 3D
