Motorless X-Axis Stage
Motorless X-Axis
Cross Roller Guide
:KXC04015V

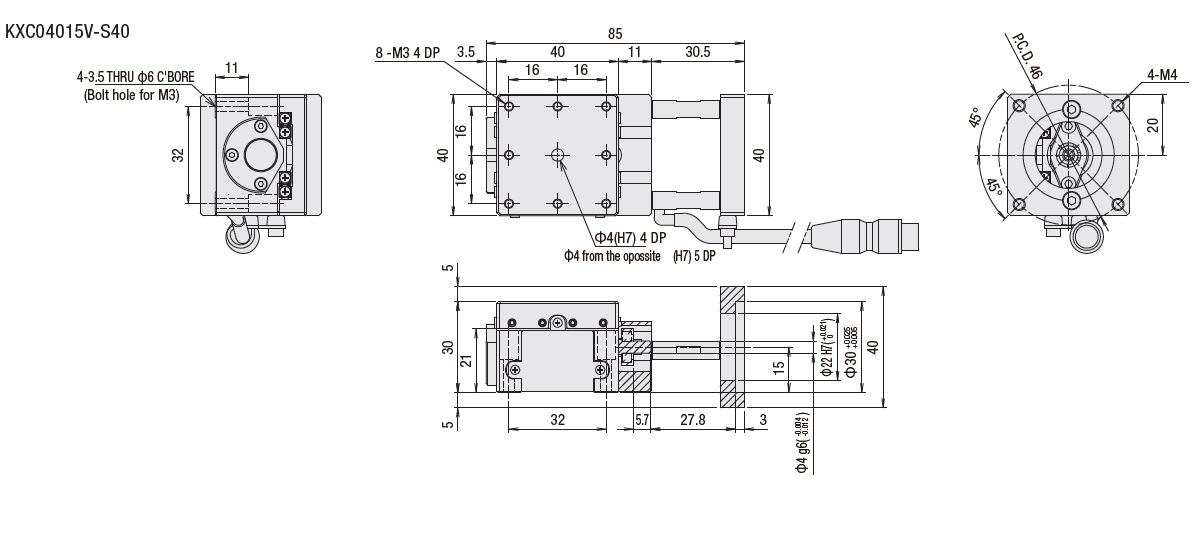

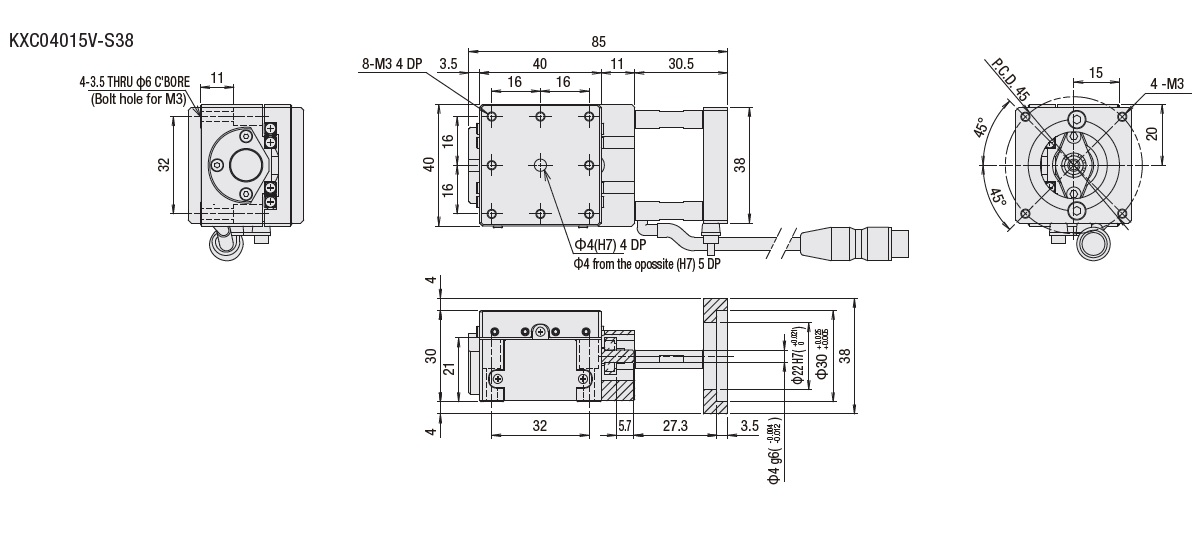

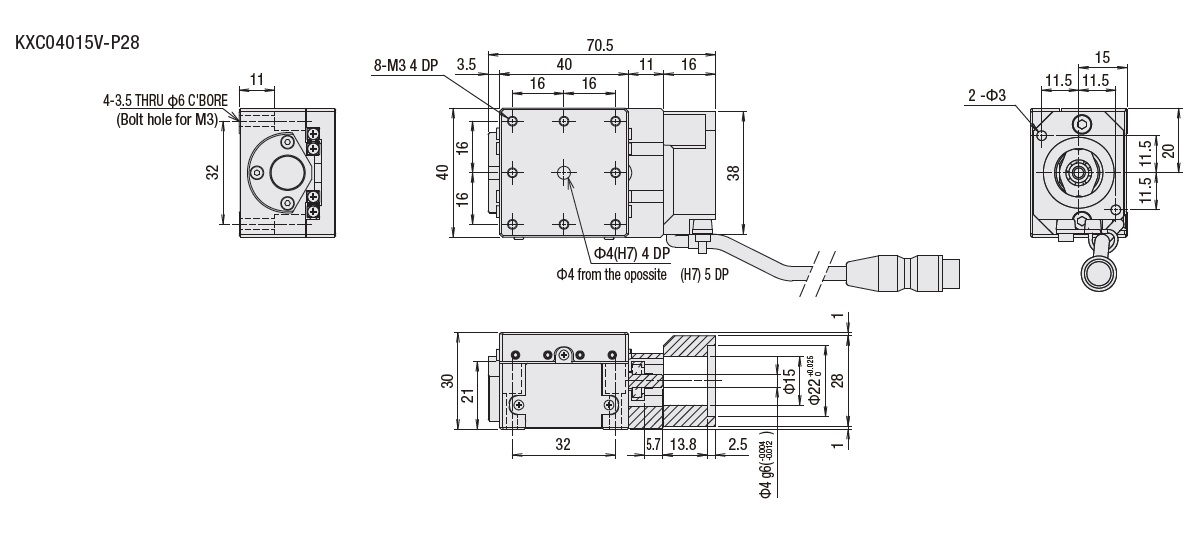

Dimensions

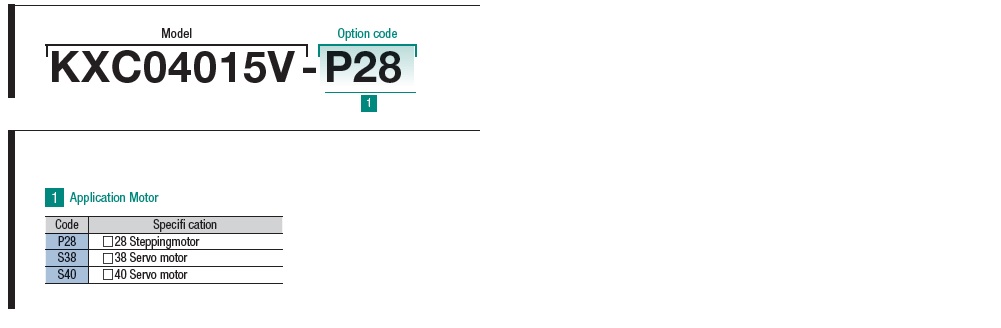

Model configuration/Option code
Electrical specifications
Precautions for handling motorless products
Spec
Stage surface size40×40mm
Travel distance[mm]15
Load capacity(Horizontal use)[kgf]5
GuideCross Roller Guide
CoverNone
Ball screw φ diameter
-Lead [mm]		φ6 Lead 1
Motorless: Applicable size□28 Stepping motor specification |□38 Servo motor specification|□40 Servo motor specifications
Main material Aluminum-Black alumite finishing
Repeatability positioning accuracy
[Within±μm]		0.2
Straightness[Withinμm]3
Option
Ball screw[Lead mm]
Motorless: Applicable size
MAX Speed[mm/sec]
※ Standard motor spec
Grease change
Relevant product
Spec List
KXC04015V-P28 40×40mm 15 5 Cross Roller Guide None φ6 Lead 1 □28 Stepping motor specification 10 Standard grease Aluminum-Black alumite finishing Sensor cable
(2m One end loose wire) 		2μm/Pulse(Full-step) 10 0.2 1 3 25 20 0.19 3D
KXC04015V-S38 40×40mm 15 5 Cross Roller Guide None φ6 Lead 1 □38 Servo motor specification 10 Standard grease Aluminum-Black alumite finishing Sensor cable
(2m One end loose wire) 		2μm/Pulse(Full-step) 10 0.2 1 3 25 20 0.2 3D
KXC04015V-S40 40×40mm 15 5 Cross Roller Guide None φ6 Lead 1 □40 Servo motor specifications 10 Standard grease Aluminum-Black alumite finishing Sensor cable
(2m One end loose wire) 		2μm/Pulse(Full-step) 10 0.2 1 3 25 20 0.2 3D
