Motorized Stage
Motorless X-Axis Stage
Motorless XY-Axis Stage
Motorless Z-Axis Stage
Motorless XYZ-Axis Stage
Motorless Horizontal Z-Axis Stage
Motorless Horizontal Z-Axis Stage
Motorless Horizontal Z-Axis
Cross Roller Guide
:KHC06004V

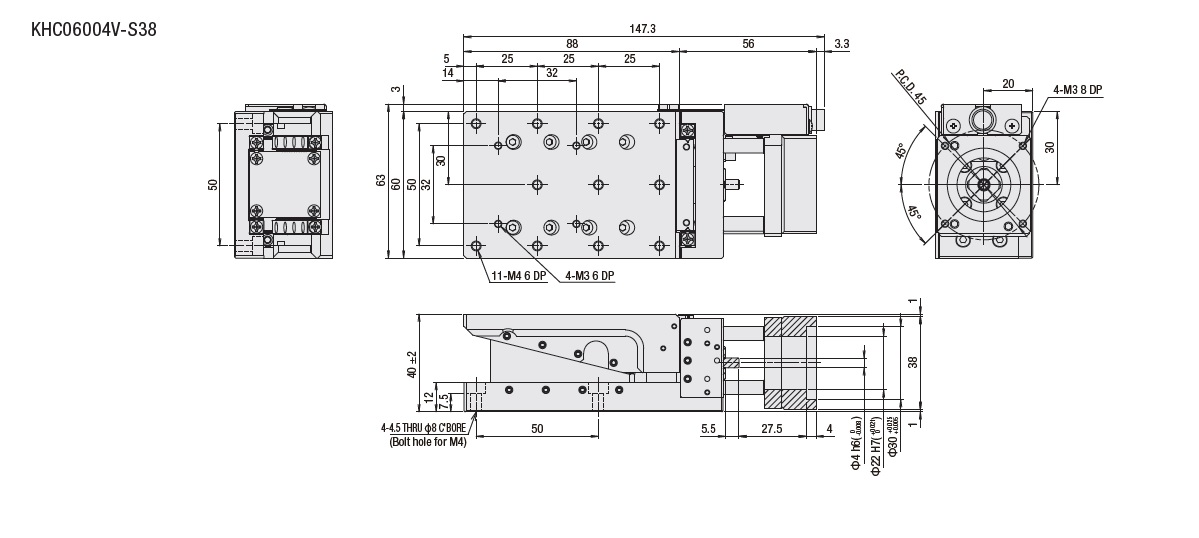

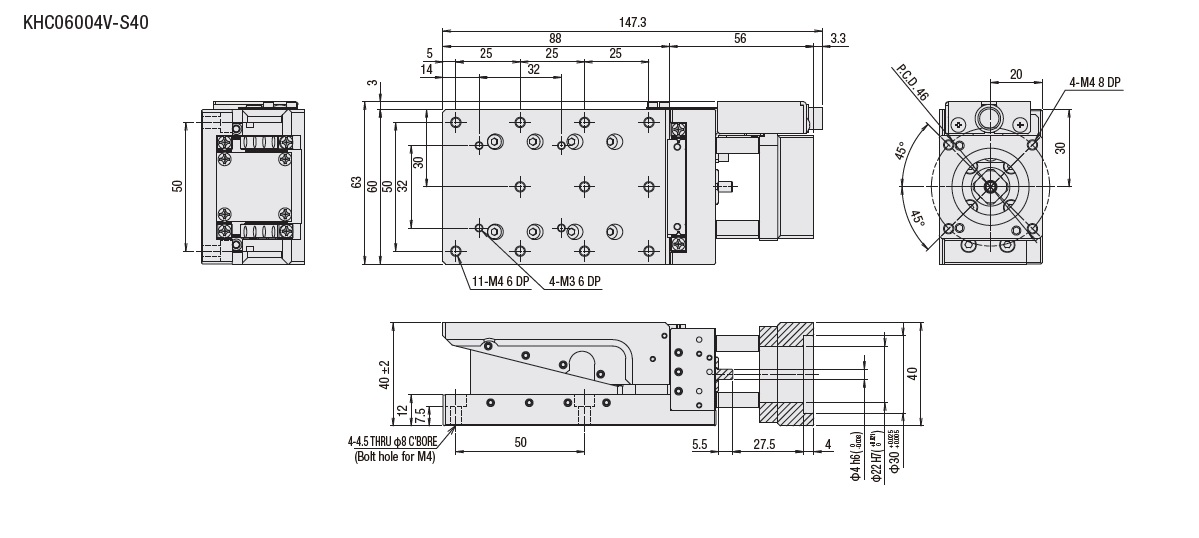

Dimensions

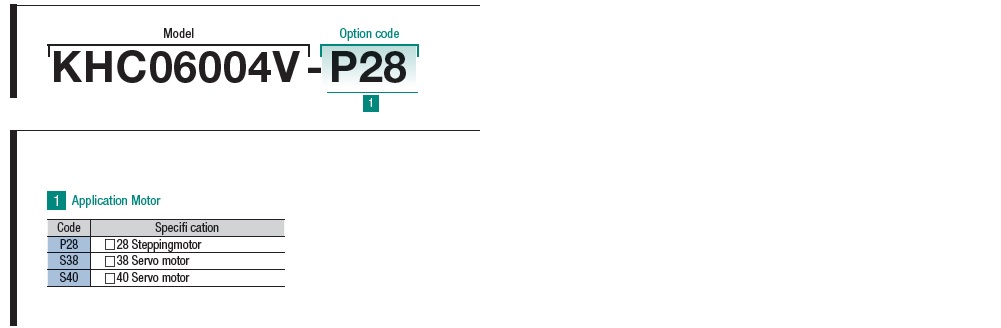

Model configuration/Option code
Electrical specifications
Precautions for handling motorless products
Spec
Stage surface size60×60mm
Travel distance[mm]4
Load capacity[kgf]7
Motorless: Applicable size□28 Stepping motor specification |□38 Servo motor specification|□40 Servo motor specifications
Ball screw φ diameter
-Lead [mm]		φ8- Lead 1
GuideWedge type
Crossed roller guide
Main material Aluminum-Black alumite finishing
MAX Speed[mm/sec]
Standard motor spec		2.5
Resolution
Standard motor spec		0.5μm/Pulse(Full-step)
Repeatability positioning accuracy
[Within±μm]		0.5
Option
Motorless: Applicable size
Relevant product
Spec List
KHC06004V-P28 60×60mm 4 7 □28 Stepping motor specification φ8- Lead 1 Wedge type
Crossed roller guide 		Aluminum-Black alumite finishing Sensor cable
(2m One end loose wire) 		2.5 0.5μm/Pulse(Full-step) 7 0.5 1 50 0.79 3D
KHC06004V-S38 60×60mm 4 7 □38 Servo motor specification φ8- Lead 1 Wedge type
Crossed roller guide 		Aluminum-Black alumite finishing Sensor cable
(2m One end loose wire) 		2.5 0.5μm/Pulse(Full-step) 7 0.5 1 50 0.84 3D
KHC06004V-S40 60×60mm 4 7 □40 Servo motor specifications φ8- Lead 1 Wedge type
Crossed roller guide 		Aluminum-Black alumite finishing Sensor cable
(2m One end loose wire) 		2.5 0.5μm/Pulse(Full-step) 7 0.5 1 50 0.84 3D
