Motorized Stage
Motorless Goniometer Stage
Motorless 2-axis Goniometer Stage
Motorless Rotary Stage
Motorless Rotary Stage
【New】
Motorless Rotary
Worm gear
:KRW06360V

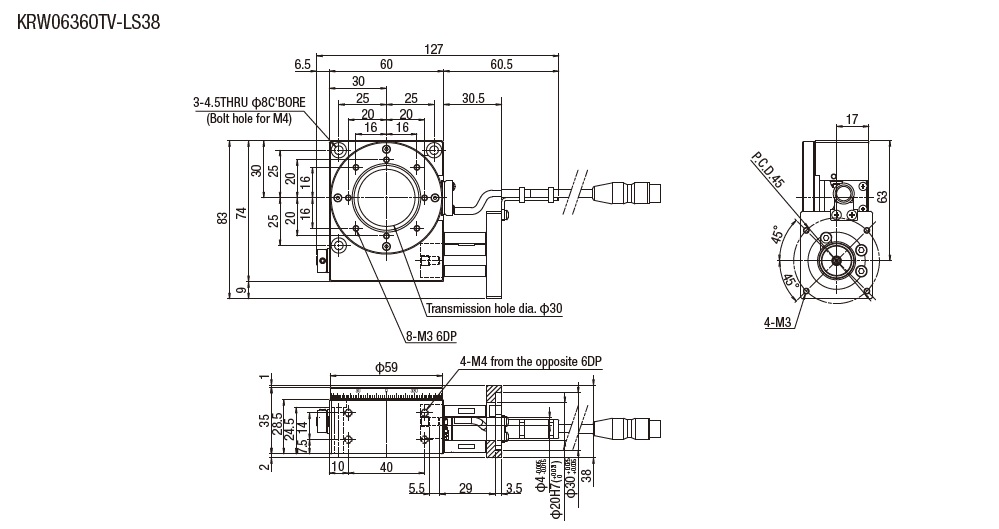

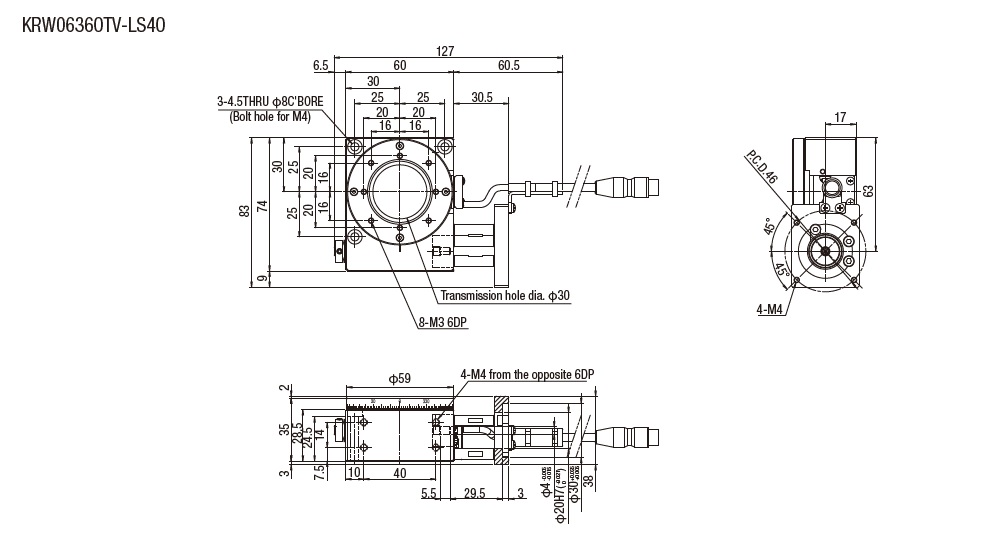

Dimensions

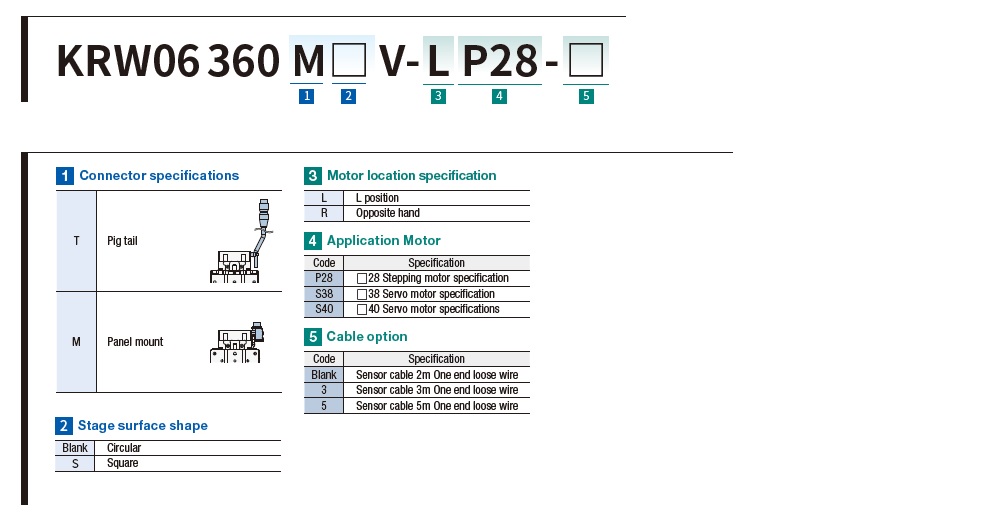

Model configuration/Option code
Precautions for handling motorless products
Spec
Stage surface size [φmm]
60×60mm|φ59mm
Travel distance
360°
Load capacity[kgf]
3
Travel mechanism
Worm gear
MAX Speed
[°/sec]※ Standard motor Spec
20[5kHz]
Option
Stage surface shape
Circular
Square
Connector specifications
Panel mount
Pig tail
Motor location specifications
L positon
Opposite hand
Motorless: Applicable size
□28 Stepping motor specification
□38 Servo motor specification
□40 Servo motor specifications
Accessory cable
Sensor cable 2m One end loose wire
Sensor cable 3m One end loose wire
Sensor cable 5m One end loose wire
Relevant product
Spec List
preview
next
Model
Stage surface size [φmm]
Stage surface shape
Travel distance
Load capacity[kgf]
Travel mechanism
Main material
Connector specifications
Motor location specifications
Motorless: Applicable size
Accessory cable
MAX Speed
[°/sec]※ Standard motor Spec
Resolution
Standard motor spec
Positioning accuracy [Within°]
Repeatability positioning accuracy
[Within±°]
Lost motion
[Within°]
Eccentricity[Withinμm]
Runout[Within μm]
Weight[kg]
CAD
Qty
Estimate
KRW06360MSV-LP28
60×60mm
Square
360°
3
Worm gear
Aluminum-Black alumite finishing
Panel mount
L positon
□28 Stepping motor specification
Sensor cable 2m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.48
KRW06360MSV-LP28-3
60×60mm
Square
360°
3
Worm gear
Aluminum-Black alumite finishing
Panel mount
L positon
□28 Stepping motor specification
Sensor cable 3m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.48
KRW06360MSV-LP28-5
60×60mm
Square
360°
3
Worm gear
Aluminum-Black alumite finishing
Panel mount
L positon
□28 Stepping motor specification
Sensor cable 5m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.48
KRW06360MSV-LS38
60×60mm
Square
360°
3
Worm gear
Aluminum-Black alumite finishing
Panel mount
L positon
□38 Servo motor specification
Sensor cable 2m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.49
KRW06360MSV-LS38-3
60×60mm
Square
360°
3
Worm gear
Aluminum-Black alumite finishing
Panel mount
L positon
□38 Servo motor specification
Sensor cable 3m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.49
KRW06360MSV-LS38-5
60×60mm
Square
360°
3
Worm gear
Aluminum-Black alumite finishing
Panel mount
L positon
□38 Servo motor specification
Sensor cable 5m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.49
KRW06360MSV-LS40
60×60mm
Square
360°
3
Worm gear
Aluminum-Black alumite finishing
Panel mount
L positon
□40 Servo motor specifications
Sensor cable 2m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.49
KRW06360MSV-LS40-3
60×60mm
Square
360°
3
Worm gear
Aluminum-Black alumite finishing
Panel mount
L positon
□40 Servo motor specifications
Sensor cable 3m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.49
KRW06360MSV-LS40-5
60×60mm
Square
360°
3
Worm gear
Aluminum-Black alumite finishing
Panel mount
L positon
□40 Servo motor specifications
Sensor cable 5m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.49
KRW06360MSV-RP28
60×60mm
Square
360°
3
Worm gear
Aluminum-Black alumite finishing
Panel mount
Opposite hand
□28 Stepping motor specification
Sensor cable 2m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.48
KRW06360MSV-RP28-3
60×60mm
Square
360°
3
Worm gear
Aluminum-Black alumite finishing
Panel mount
Opposite hand
□28 Stepping motor specification
Sensor cable 3m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.48
KRW06360MSV-RP28-5
60×60mm
Square
360°
3
Worm gear
Aluminum-Black alumite finishing
Panel mount
Opposite hand
□28 Stepping motor specification
Sensor cable 5m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.48
KRW06360MSV-RS38
60×60mm
Square
360°
3
Worm gear
Aluminum-Black alumite finishing
Panel mount
Opposite hand
□38 Servo motor specification
Sensor cable 2m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.49
KRW06360MSV-RS38-3
60×60mm
Square
360°
3
Worm gear
Aluminum-Black alumite finishing
Panel mount
Opposite hand
□38 Servo motor specification
Sensor cable 3m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.49
KRW06360MSV-RS38-5
60×60mm
Square
360°
3
Worm gear
Aluminum-Black alumite finishing
Panel mount
Opposite hand
□38 Servo motor specification
Sensor cable 5m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.49
KRW06360MSV-RS40
60×60mm
Square
360°
3
Worm gear
Aluminum-Black alumite finishing
Panel mount
Opposite hand
□40 Servo motor specifications
Sensor cable 2m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.49
KRW06360MSV-RS40-3
60×60mm
Square
360°
3
Worm gear
Aluminum-Black alumite finishing
Panel mount
Opposite hand
□40 Servo motor specifications
Sensor cable 3m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.49
KRW06360MSV-RS40-5
60×60mm
Square
360°
3
Worm gear
Aluminum-Black alumite finishing
Panel mount
Opposite hand
□40 Servo motor specifications
Sensor cable 5m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.49
KRW06360MV-LP28
φ59mm
Circular
360°
3
Worm gear
Aluminum-Black alumite finishing
Panel mount
L positon
□28 Stepping motor specification
Sensor cable 2m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.48
KRW06360MV-LP28-3
φ59mm
Circular
360°
3
Worm gear
Aluminum-Black alumite finishing
Panel mount
L positon
□28 Stepping motor specification
Sensor cable 3m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.48
KRW06360MV-LP28-5
φ59mm
Circular
360°
3
Worm gear
Aluminum-Black alumite finishing
Panel mount
L positon
□28 Stepping motor specification
Sensor cable 5m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.48
KRW06360MV-LS38
φ59mm
Circular
360°
3
Worm gear
Aluminum-Black alumite finishing
Panel mount
L positon
□38 Servo motor specification
Sensor cable 2m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.49
KRW06360MV-LS38-3
φ59mm
Circular
360°
3
Worm gear
Aluminum-Black alumite finishing
Panel mount
L positon
□38 Servo motor specification
Sensor cable 3m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.49
KRW06360MV-LS38-5
φ59mm
Circular
360°
3
Worm gear
Aluminum-Black alumite finishing
Panel mount
L positon
□38 Servo motor specification
Sensor cable 5m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.49
KRW06360MV-LS40
φ59mm
Circular
360°
3
Worm gear
Aluminum-Black alumite finishing
Panel mount
L positon
□40 Servo motor specifications
Sensor cable 2m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.49
KRW06360MV-LS40-3
φ59mm
Circular
360°
3
Worm gear
Aluminum-Black alumite finishing
Panel mount
L positon
□40 Servo motor specifications
Sensor cable 3m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.49
KRW06360MV-LS40-5
φ59mm
Circular
360°
3
Worm gear
Aluminum-Black alumite finishing
Panel mount
L positon
□40 Servo motor specifications
Sensor cable 5m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.49
KRW06360MV-RP28
φ59mm
Circular
360°
3
Worm gear
Aluminum-Black alumite finishing
Panel mount
Opposite hand
□28 Stepping motor specification
Sensor cable 2m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.48
KRW06360MV-RP28-3
φ59mm
Circular
360°
3
Worm gear
Aluminum-Black alumite finishing
Panel mount
Opposite hand
□28 Stepping motor specification
Sensor cable 3m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.48
KRW06360MV-RP28-5
φ59mm
Circular
360°
3
Worm gear
Aluminum-Black alumite finishing
Panel mount
Opposite hand
□28 Stepping motor specification
Sensor cable 5m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.48
KRW06360MV-RS38
φ59mm
Circular
360°
3
Worm gear
Aluminum-Black alumite finishing
Panel mount
Opposite hand
□38 Servo motor specification
Sensor cable 2m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.49
KRW06360MV-RS38-3
φ59mm
Circular
360°
3
Worm gear
Aluminum-Black alumite finishing
Panel mount
Opposite hand
□38 Servo motor specification
Sensor cable 3m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.49
KRW06360MV-RS38-5
φ59mm
Circular
360°
3
Worm gear
Aluminum-Black alumite finishing
Panel mount
Opposite hand
□38 Servo motor specification
Sensor cable 5m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.49
KRW06360MV-RS40
φ59mm
Circular
360°
3
Worm gear
Aluminum-Black alumite finishing
Panel mount
Opposite hand
□40 Servo motor specifications
Sensor cable 2m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.49
KRW06360MV-RS40-3
φ59mm
Circular
360°
3
Worm gear
Aluminum-Black alumite finishing
Panel mount
Opposite hand
□40 Servo motor specifications
Sensor cable 3m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.49
KRW06360MV-RS40-5
φ59mm
Circular
360°
3
Worm gear
Aluminum-Black alumite finishing
Panel mount
Opposite hand
□40 Servo motor specifications
Sensor cable 5m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.49
KRW06360TSV-LP28
60×60mm
Square
360°
3
Worm gear
Aluminum-Black alumite finishing
Pig tail
L positon
□28 Stepping motor specification
Sensor cable 2m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.51
KRW06360TSV-LP28-3
60×60mm
Square
360°
3
Worm gear
Aluminum-Black alumite finishing
Pig tail
L positon
□28 Stepping motor specification
Sensor cable 3m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.51
KRW06360TSV-LP28-5
60×60mm
Square
360°
3
Worm gear
Aluminum-Black alumite finishing
Pig tail
L positon
□28 Stepping motor specification
Sensor cable 5m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.51
KRW06360TSV-LS38
60×60mm
Square
360°
3
Worm gear
Aluminum-Black alumite finishing
Pig tail
L positon
□38 Servo motor specification
Sensor cable 2m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.52
KRW06360TSV-LS38-3
60×60mm
Square
360°
3
Worm gear
Aluminum-Black alumite finishing
Pig tail
L positon
□38 Servo motor specification
Sensor cable 3m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.52
KRW06360TSV-LS38-5
60×60mm
Square
360°
3
Worm gear
Aluminum-Black alumite finishing
Pig tail
L positon
□38 Servo motor specification
Sensor cable 5m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.52
KRW06360TSV-LS40
60×60mm
Square
360°
3
Worm gear
Aluminum-Black alumite finishing
Pig tail
L positon
□40 Servo motor specifications
Sensor cable 2m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.52
KRW06360TSV-LS40-3
60×60mm
Square
360°
3
Worm gear
Aluminum-Black alumite finishing
Pig tail
L positon
□40 Servo motor specifications
Sensor cable 3m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.52
KRW06360TSV-LS40-5
60×60mm
Square
360°
3
Worm gear
Aluminum-Black alumite finishing
Pig tail
L positon
□40 Servo motor specifications
Sensor cable 5m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.52
KRW06360TSV-RP28
60×60mm
Square
360°
3
Worm gear
Aluminum-Black alumite finishing
Pig tail
Opposite hand
□28 Stepping motor specification
Sensor cable 2m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.51
KRW06360TSV-RP28-3
60×60mm
Square
360°
3
Worm gear
Aluminum-Black alumite finishing
Pig tail
Opposite hand
□28 Stepping motor specification
Sensor cable 3m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.51
KRW06360TSV-RP28-5
60×60mm
Square
360°
3
Worm gear
Aluminum-Black alumite finishing
Pig tail
Opposite hand
□28 Stepping motor specification
Sensor cable 5m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.51
KRW06360TSV-RS38
60×60mm
Square
360°
3
Worm gear
Aluminum-Black alumite finishing
Pig tail
Opposite hand
□38 Servo motor specification
Sensor cable 2m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.52
KRW06360TSV-RS38-3
60×60mm
Square
360°
3
Worm gear
Aluminum-Black alumite finishing
Pig tail
Opposite hand
□38 Servo motor specification
Sensor cable 3m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.52
KRW06360TSV-RS38-5
60×60mm
Square
360°
3
Worm gear
Aluminum-Black alumite finishing
Pig tail
Opposite hand
□38 Servo motor specification
Sensor cable 5m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.52
KRW06360TSV-RS40
60×60mm
Square
360°
3
Worm gear
Aluminum-Black alumite finishing
Pig tail
Opposite hand
□40 Servo motor specifications
Sensor cable 2m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.52
KRW06360TSV-RS40-3
60×60mm
Square
360°
3
Worm gear
Aluminum-Black alumite finishing
Pig tail
Opposite hand
□40 Servo motor specifications
Sensor cable 3m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.52
KRW06360TSV-RS40-5
60×60mm
Square
360°
3
Worm gear
Aluminum-Black alumite finishing
Pig tail
Opposite hand
□40 Servo motor specifications
Sensor cable 5m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.52
KRW06360TV-LP28
φ59mm
Circular
360°
3
Worm gear
Aluminum-Black alumite finishing
Pig tail
L positon
□28 Stepping motor specification
Sensor cable 2m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.51
KRW06360TV-LP28-3
φ59mm
Circular
360°
3
Worm gear
Aluminum-Black alumite finishing
Pig tail
L positon
□28 Stepping motor specification
Sensor cable 3m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.51
KRW06360TV-LP28-5
φ59mm
Circular
360°
3
Worm gear
Aluminum-Black alumite finishing
Pig tail
L positon
□28 Stepping motor specification
Sensor cable 5m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.51
KRW06360TV-LS38
φ59mm
Circular
360°
3
Worm gear
Aluminum-Black alumite finishing
Pig tail
L positon
□38 Servo motor specification
Sensor cable 2m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.52
KRW06360TV-LS38-3
φ59mm
Circular
360°
3
Worm gear
Aluminum-Black alumite finishing
Pig tail
L positon
□38 Servo motor specification
Sensor cable 3m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.52
KRW06360TV-LS38-5
φ59mm
Circular
360°
3
Worm gear
Aluminum-Black alumite finishing
Pig tail
L positon
□38 Servo motor specification
Sensor cable 5m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.52
KRW06360TV-LS40
φ59mm
Circular
360°
3
Worm gear
Aluminum-Black alumite finishing
Pig tail
L positon
□40 Servo motor specifications
Sensor cable 2m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.52
KRW06360TV-LS40-3
φ59mm
Circular
360°
3
Worm gear
Aluminum-Black alumite finishing
Pig tail
L positon
□40 Servo motor specifications
Sensor cable 3m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.52
KRW06360TV-LS40-5
φ59mm
Circular
360°
3
Worm gear
Aluminum-Black alumite finishing
Pig tail
L positon
□40 Servo motor specifications
Sensor cable 5m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.52
KRW06360TV-RP28
φ59mm
Circular
360°
3
Worm gear
Aluminum-Black alumite finishing
Pig tail
Opposite hand
□28 Stepping motor specification
Sensor cable 2m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.51
KRW06360TV-RP28-3
φ59mm
Circular
360°
3
Worm gear
Aluminum-Black alumite finishing
Pig tail
Opposite hand
□28 Stepping motor specification
Sensor cable 3m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.51
KRW06360TV-RP28-5
φ59mm
Circular
360°
3
Worm gear
Aluminum-Black alumite finishing
Pig tail
Opposite hand
□28 Stepping motor specification
Sensor cable 5m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.51
KRW06360TV-RS38
φ59mm
Circular
360°
3
Worm gear
Aluminum-Black alumite finishing
Pig tail
Opposite hand
□38 Servo motor specification
Sensor cable 2m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.52
KRW06360TV-RS38-3
φ59mm
Circular
360°
3
Worm gear
Aluminum-Black alumite finishing
Pig tail
Opposite hand
□38 Servo motor specification
Sensor cable 3m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.52
KRW06360TV-RS38-5
φ59mm
Circular
360°
3
Worm gear
Aluminum-Black alumite finishing
Pig tail
Opposite hand
□38 Servo motor specification
Sensor cable 5m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.52
KRW06360TV-RS40
φ59mm
Circular
360°
3
Worm gear
Aluminum-Black alumite finishing
Pig tail
Opposite hand
□40 Servo motor specifications
Sensor cable 2m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.52
KRW06360TV-RS40-3
φ59mm
Circular
360°
3
Worm gear
Aluminum-Black alumite finishing
Pig tail
Opposite hand
□40 Servo motor specifications
Sensor cable 3m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.52
KRW06360TV-RS40-5
φ59mm
Circular
360°
3
Worm gear
Aluminum-Black alumite finishing
Pig tail
Opposite hand
□40 Servo motor specifications
Sensor cable 5m One end loose wire
20[5kHz]
0.004°/Pulse(Full-step)
0.05
0.01
0.05
5
30
0.52
PAGETOP
