Motorless Rotary Stage
【New】
Motorless Rotary
Worm gear
:KRW04360V

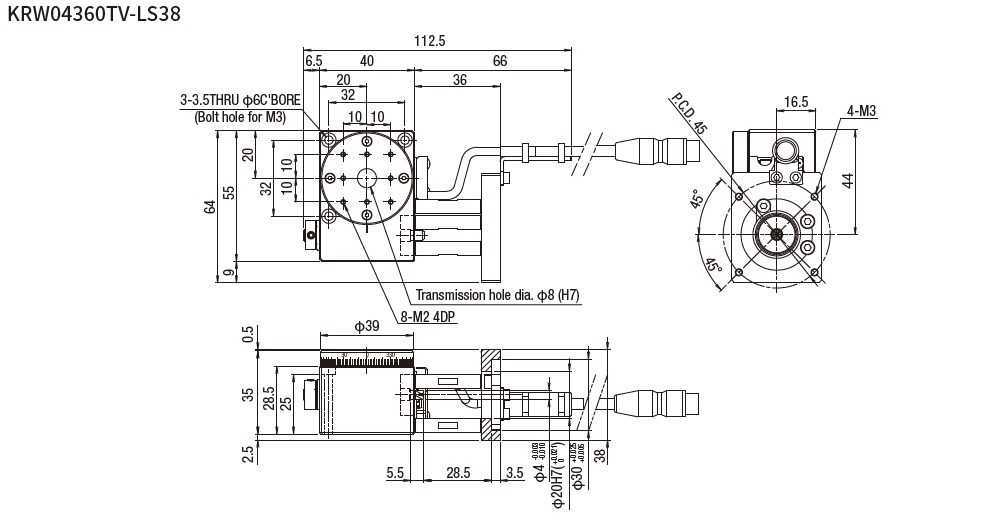

Dimensions
Model configuration/Option code
Precautions for handling motorless products
Spec
Stage surface size [φmm]40×40mm|φ39mm
Travel distance360°
Load capacity[kgf]3
Travel mechanismWorm gear
MAX Speed
[°/sec]※ Standard motor Spec		30[5kHz]
Option
Stage surface shape
Connector specifications
Motor location specifications
Motorless: Applicable size
Accessory cable
Relevant product
Spec List
KRW04360MSV-LP28 40×40mm Square 360° 3 Worm gear Aluminum-Black alumite finishing Panel mount L positon □28 Stepping motor specification Sensor cable 2m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.28 PART Community
KRW04360MSV-LP28-3 40×40mm Square 360° 3 Worm gear Aluminum-Black alumite finishing Panel mount L positon □28 Stepping motor specification Sensor cable 3m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.28 PART Community
KRW04360MSV-LP28-5 40×40mm Square 360° 3 Worm gear Aluminum-Black alumite finishing Panel mount L positon □28 Stepping motor specification Sensor cable 5m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.28 PART Community
KRW04360MSV-LS38 40×40mm Square 360° 3 Worm gear Aluminum-Black alumite finishing Panel mount L positon □38 Servo motor specification Sensor cable 2m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.29
KRW04360MSV-LS38-3 40×40mm Square 360° 3 Worm gear Aluminum-Black alumite finishing Panel mount L positon □38 Servo motor specification Sensor cable 3m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.29
KRW04360MSV-LS38-5 40×40mm Square 360° 3 Worm gear Aluminum-Black alumite finishing Panel mount L positon □38 Servo motor specification Sensor cable 5m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.29
KRW04360MSV-LS40 40×40mm Square 360° 3 Worm gear Aluminum-Black alumite finishing Panel mount L positon □40 Servo motor specifications Sensor cable 2m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.29
KRW04360MSV-LS40-3 40×40mm Square 360° 3 Worm gear Aluminum-Black alumite finishing Panel mount L positon □40 Servo motor specifications Sensor cable 3m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.29
KRW04360MSV-LS40-5 40×40mm Square 360° 3 Worm gear Aluminum-Black alumite finishing Panel mount L positon □40 Servo motor specifications Sensor cable 5m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.29
KRW04360MSV-RP28 40×40mm Square 360° 3 Worm gear Aluminum-Black alumite finishing Panel mount Opposite hand □28 Stepping motor specification Sensor cable 2m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.28 PART Community
KRW04360MSV-RP28-3 40×40mm Square 360° 3 Worm gear Aluminum-Black alumite finishing Panel mount Opposite hand □28 Stepping motor specification Sensor cable 3m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.28 PART Community
KRW04360MSV-RP28-5 40×40mm Square 360° 3 Worm gear Aluminum-Black alumite finishing Panel mount Opposite hand □28 Stepping motor specification Sensor cable 5m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.28 PART Community
KRW04360MSV-RS38 40×40mm Square 360° 3 Worm gear Aluminum-Black alumite finishing Panel mount Opposite hand □38 Servo motor specification Sensor cable 2m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.29
KRW04360MSV-RS38-3 40×40mm Square 360° 3 Worm gear Aluminum-Black alumite finishing Panel mount Opposite hand □38 Servo motor specification Sensor cable 3m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.29
KRW04360MSV-RS38-5 40×40mm Square 360° 3 Worm gear Aluminum-Black alumite finishing Panel mount Opposite hand □38 Servo motor specification Sensor cable 5m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.29
KRW04360MSV-RS40 40×40mm Square 360° 3 Worm gear Aluminum-Black alumite finishing Panel mount Opposite hand □40 Servo motor specifications Sensor cable 2m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.29
KRW04360MSV-RS40-3 40×40mm Square 360° 3 Worm gear Aluminum-Black alumite finishing Panel mount Opposite hand □40 Servo motor specifications Sensor cable 3m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.29
KRW04360MSV-RS40-5 40×40mm Square 360° 3 Worm gear Aluminum-Black alumite finishing Panel mount Opposite hand □40 Servo motor specifications Sensor cable 5m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.29
KRW04360MV-LP28 φ39mm Circular 360° 3 Worm gear Aluminum-Black alumite finishing Panel mount L positon □28 Stepping motor specification Sensor cable 2m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.28 PART Community
KRW04360MV-LP28-3 φ39mm Circular 360° 3 Worm gear Aluminum-Black alumite finishing Panel mount L positon □28 Stepping motor specification Sensor cable 3m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.28 PART Community
KRW04360MV-LP28-5 φ39mm Circular 360° 3 Worm gear Aluminum-Black alumite finishing Panel mount L positon □28 Stepping motor specification Sensor cable 5m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.28 PART Community
KRW04360MV-LS38 φ39mm Circular 360° 3 Worm gear Aluminum-Black alumite finishing Panel mount L positon □38 Servo motor specification Sensor cable 2m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.29
KRW04360MV-LS38-3 φ39mm Circular 360° 3 Worm gear Aluminum-Black alumite finishing Panel mount L positon □38 Servo motor specification Sensor cable 3m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.29
KRW04360MV-LS38-5 φ39mm Circular 360° 3 Worm gear Aluminum-Black alumite finishing Panel mount L positon □38 Servo motor specification Sensor cable 5m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.29
KRW04360MV-LS40 φ39mm Circular 360° 3 Worm gear Aluminum-Black alumite finishing Panel mount L positon □40 Servo motor specifications Sensor cable 2m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.29
KRW04360MV-LS40-3 φ39mm Circular 360° 3 Worm gear Aluminum-Black alumite finishing Panel mount L positon □40 Servo motor specifications Sensor cable 3m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.29
KRW04360MV-LS40-5 φ39mm Circular 360° 3 Worm gear Aluminum-Black alumite finishing Panel mount L positon □40 Servo motor specifications Sensor cable 5m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.29
KRW04360MV-RP28 φ39mm Circular 360° 3 Worm gear Aluminum-Black alumite finishing Panel mount Opposite hand □28 Stepping motor specification Sensor cable 2m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.28 PART Community
KRW04360MV-RP28-3 φ39mm Circular 360° 3 Worm gear Aluminum-Black alumite finishing Panel mount Opposite hand □28 Stepping motor specification Sensor cable 3m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.28 PART Community
KRW04360MV-RP28-5 φ39mm Circular 360° 3 Worm gear Aluminum-Black alumite finishing Panel mount Opposite hand □28 Stepping motor specification Sensor cable 5m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.28 PART Community
KRW04360MV-RS38 φ39mm Circular 360° 3 Worm gear Aluminum-Black alumite finishing Panel mount Opposite hand □38 Servo motor specification Sensor cable 2m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.29
KRW04360MV-RS38-3 φ39mm Circular 360° 3 Worm gear Aluminum-Black alumite finishing Panel mount Opposite hand □38 Servo motor specification Sensor cable 3m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.29
KRW04360MV-RS38-5 φ39mm Circular 360° 3 Worm gear Aluminum-Black alumite finishing Panel mount Opposite hand □38 Servo motor specification Sensor cable 5m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.29
KRW04360MV-RS40 φ39mm Circular 360° 3 Worm gear Aluminum-Black alumite finishing Panel mount Opposite hand □40 Servo motor specifications Sensor cable 2m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.29
KRW04360MV-RS40-3 φ39mm Circular 360° 3 Worm gear Aluminum-Black alumite finishing Panel mount Opposite hand □40 Servo motor specifications Sensor cable 3m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.29
KRW04360MV-RS40-5 φ39mm Circular 360° 3 Worm gear Aluminum-Black alumite finishing Panel mount Opposite hand □40 Servo motor specifications Sensor cable 5m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.29
KRW04360TSV-LP28 40×40mm Square 360° 3 Worm gear Aluminum-Black alumite finishing Pig tail L positon □28 Stepping motor specification Sensor cable 2m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.31 PART Community
KRW04360TSV-LP28-3 40×40mm Square 360° 3 Worm gear Aluminum-Black alumite finishing Pig tail L positon □28 Stepping motor specification Sensor cable 3m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.31 PART Community
KRW04360TSV-LP28-5 40×40mm Square 360° 3 Worm gear Aluminum-Black alumite finishing Pig tail L positon □28 Stepping motor specification Sensor cable 5m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.31 PART Community
KRW04360TSV-LS38 40×40mm Square 360° 3 Worm gear Aluminum-Black alumite finishing Pig tail L positon □38 Servo motor specification Sensor cable 2m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.32
KRW04360TSV-LS38-3 40×40mm Square 360° 3 Worm gear Aluminum-Black alumite finishing Pig tail L positon □38 Servo motor specification Sensor cable 3m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.32
KRW04360TSV-LS38-5 40×40mm Square 360° 3 Worm gear Aluminum-Black alumite finishing Pig tail L positon □38 Servo motor specification Sensor cable 5m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.32
KRW04360TSV-LS40 40×40mm Square 360° 3 Worm gear Aluminum-Black alumite finishing Pig tail L positon □40 Servo motor specifications Sensor cable 2m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.32
KRW04360TSV-LS40-3 40×40mm Square 360° 3 Worm gear Aluminum-Black alumite finishing Pig tail L positon □40 Servo motor specifications Sensor cable 3m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.32
KRW04360TSV-LS40-5 40×40mm Square 360° 3 Worm gear Aluminum-Black alumite finishing Pig tail L positon □40 Servo motor specifications Sensor cable 5m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.32
KRW04360TSV-RP28 40×40mm Square 360° 3 Worm gear Aluminum-Black alumite finishing Pig tail Opposite hand □28 Stepping motor specification Sensor cable 2m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.31 PART Community
KRW04360TSV-RP28-3 40×40mm Square 360° 3 Worm gear Aluminum-Black alumite finishing Pig tail Opposite hand □28 Stepping motor specification Sensor cable 3m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.31 PART Community
KRW04360TSV-RP28-5 40×40mm Square 360° 3 Worm gear Aluminum-Black alumite finishing Pig tail Opposite hand □28 Stepping motor specification Sensor cable 5m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.31 PART Community
KRW04360TSV-RS38 40×40mm Square 360° 3 Worm gear Aluminum-Black alumite finishing Pig tail Opposite hand □38 Servo motor specification Sensor cable 2m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.32
KRW04360TSV-RS38-3 40×40mm Square 360° 3 Worm gear Aluminum-Black alumite finishing Pig tail Opposite hand □38 Servo motor specification Sensor cable 3m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.32
KRW04360TSV-RS38-5 40×40mm Square 360° 3 Worm gear Aluminum-Black alumite finishing Pig tail Opposite hand □38 Servo motor specification Sensor cable 5m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.32
KRW04360TSV-RS40 40×40mm Square 360° 3 Worm gear Aluminum-Black alumite finishing Pig tail Opposite hand □40 Servo motor specifications Sensor cable 2m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.32
KRW04360TSV-RS40-3 40×40mm Square 360° 3 Worm gear Aluminum-Black alumite finishing Pig tail Opposite hand □40 Servo motor specifications Sensor cable 3m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.32
KRW04360TSV-RS40-5 40×40mm Square 360° 3 Worm gear Aluminum-Black alumite finishing Pig tail Opposite hand □40 Servo motor specifications Sensor cable 5m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.32
KRW04360TV-LP28 φ39mm Circular 360° 3 Worm gear Aluminum-Black alumite finishing Pig tail L positon □28 Stepping motor specification Sensor cable 2m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.31 PART Community
KRW04360TV-LP28-3 φ39mm Circular 360° 3 Worm gear Aluminum-Black alumite finishing Pig tail L positon □28 Stepping motor specification Sensor cable 3m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.31 PART Community
KRW04360TV-LP28-5 φ39mm Circular 360° 3 Worm gear Aluminum-Black alumite finishing Pig tail L positon □28 Stepping motor specification Sensor cable 5m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.31 PART Community
KRW04360TV-LS38 φ39mm Circular 360° 3 Worm gear Aluminum-Black alumite finishing Pig tail L positon □38 Servo motor specification Sensor cable 2m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.32
KRW04360TV-LS38-3 φ39mm Circular 360° 3 Worm gear Aluminum-Black alumite finishing Pig tail L positon □38 Servo motor specification Sensor cable 3m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.32
KRW04360TV-LS38-5 φ39mm Circular 360° 3 Worm gear Aluminum-Black alumite finishing Pig tail L positon □38 Servo motor specification Sensor cable 5m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.32
KRW04360TV-LS40 φ39mm Circular 360° 3 Worm gear Aluminum-Black alumite finishing Pig tail L positon □40 Servo motor specifications Sensor cable 2m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.32
KRW04360TV-LS40-3 φ39mm Circular 360° 3 Worm gear Aluminum-Black alumite finishing Pig tail L positon □40 Servo motor specifications Sensor cable 3m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.32
KRW04360TV-LS40-5 φ39mm Circular 360° 3 Worm gear Aluminum-Black alumite finishing Pig tail L positon □40 Servo motor specifications Sensor cable 5m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.32
KRW04360TV-RP28 φ39mm Circular 360° 3 Worm gear Aluminum-Black alumite finishing Pig tail Opposite hand □28 Stepping motor specification Sensor cable 2m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.31 PART Community
KRW04360TV-RP28-3 φ39mm Circular 360° 3 Worm gear Aluminum-Black alumite finishing Pig tail Opposite hand □28 Stepping motor specification Sensor cable 3m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.31 PART Community
KRW04360TV-RP28-5 φ39mm Circular 360° 3 Worm gear Aluminum-Black alumite finishing Pig tail Opposite hand □28 Stepping motor specification Sensor cable 5m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.31 PART Community
KRW04360TV-RS38 φ39mm Circular 360° 3 Worm gear Aluminum-Black alumite finishing Pig tail Opposite hand □38 Servo motor specification Sensor cable 2m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.32
KRW04360TV-RS38-3 φ39mm Circular 360° 3 Worm gear Aluminum-Black alumite finishing Pig tail Opposite hand □38 Servo motor specification Sensor cable 3m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.32
KRW04360TV-RS38-5 φ39mm Circular 360° 3 Worm gear Aluminum-Black alumite finishing Pig tail Opposite hand □38 Servo motor specification Sensor cable 5m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.32
KRW04360TV-RS40 φ39mm Circular 360° 3 Worm gear Aluminum-Black alumite finishing Pig tail Opposite hand □40 Servo motor specifications Sensor cable 2m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.32
KRW04360TV-RS40-3 φ39mm Circular 360° 3 Worm gear Aluminum-Black alumite finishing Pig tail Opposite hand □40 Servo motor specifications Sensor cable 3m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.32
KRW04360TV-RS40-5 φ39mm Circular 360° 3 Worm gear Aluminum-Black alumite finishing Pig tail Opposite hand □40 Servo motor specifications Sensor cable 5m One end loose wire 30[5kHz] 0.006°/Pulse(Full-step) 0.05 0.01 0.05 5 30 0.32
