Motorized Stage
Motorless Goniometer Stage
Motorless 2-axis Goniometer Stage
Motorless Rotary Stage
Motorless Goniometer Stage
Motorless Goniometer
Ball Screw:KGB06V

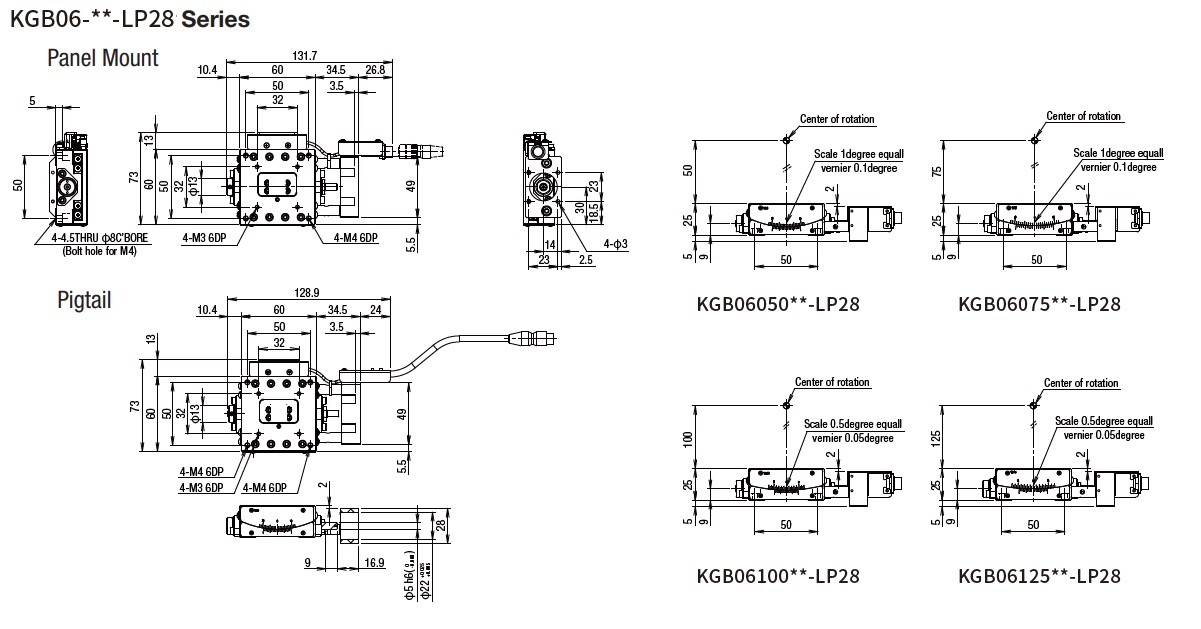

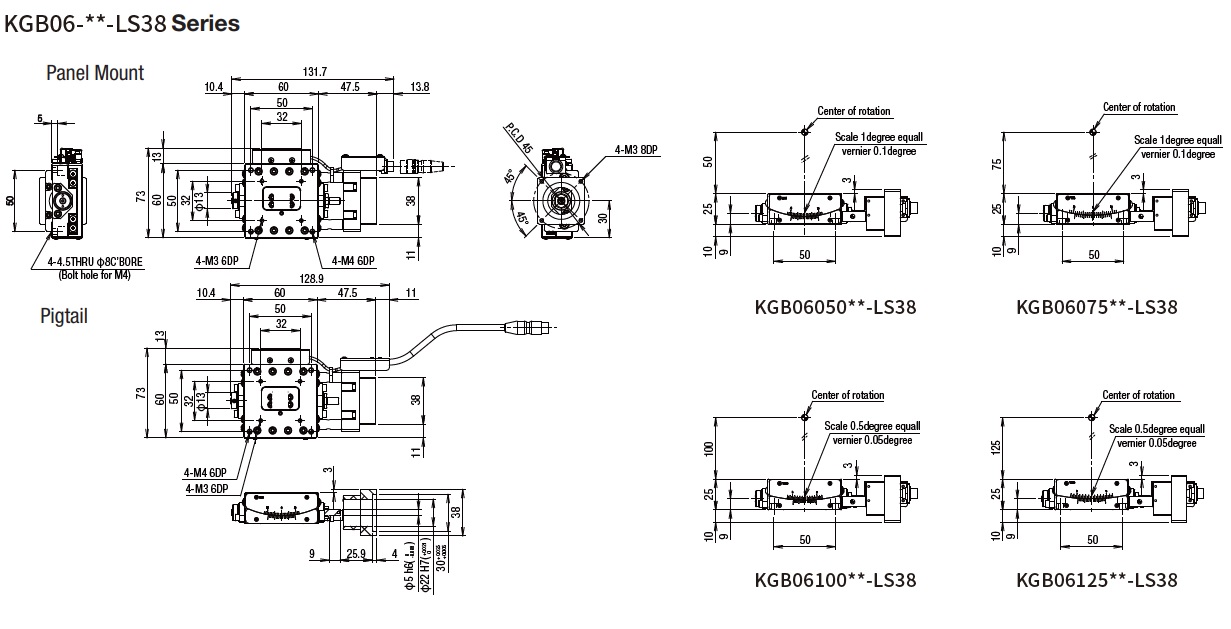

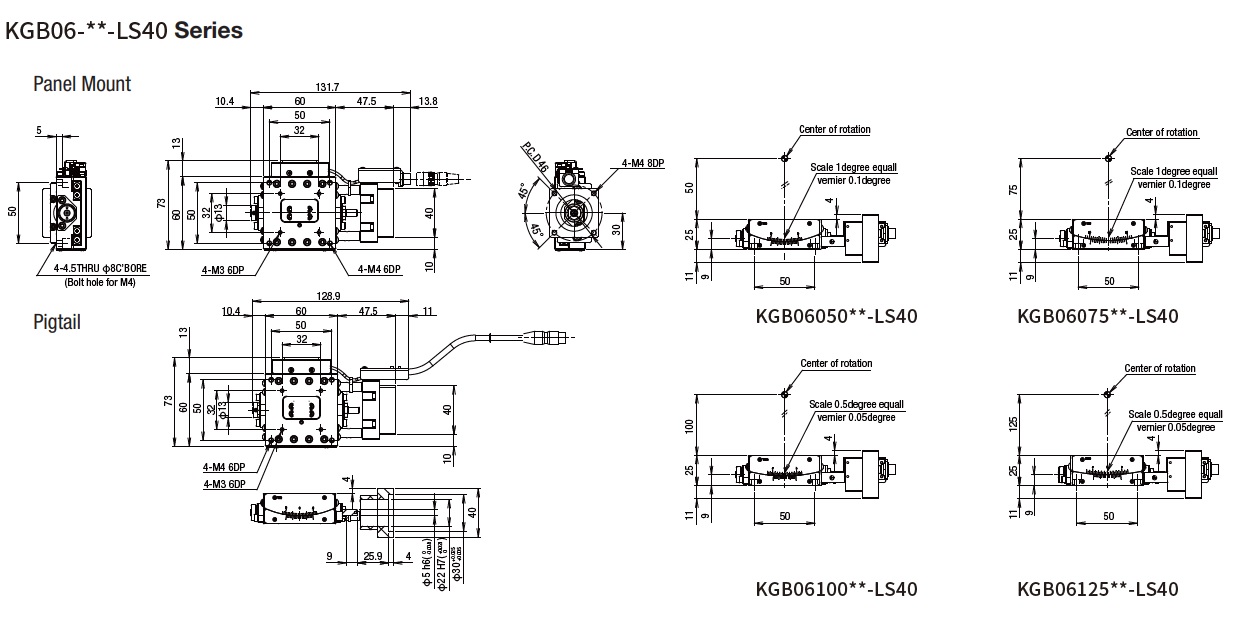

Dimensions

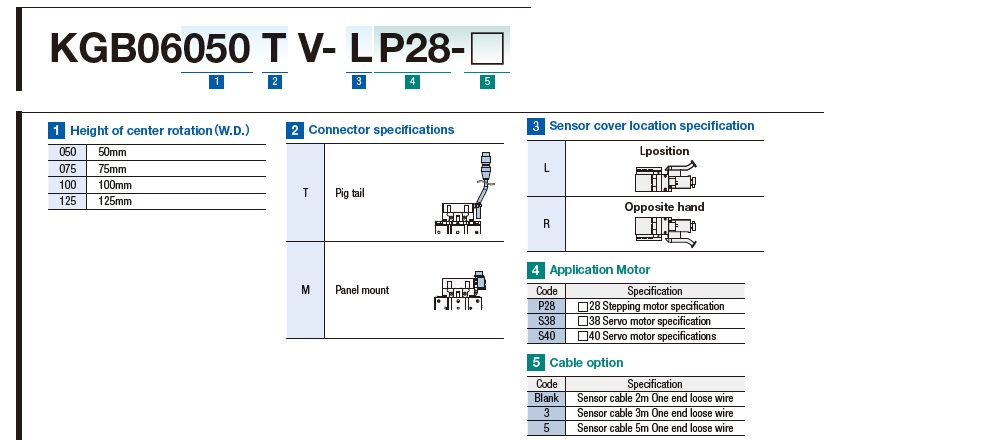

Model configuration/Option code
Electrical specifications
Precautions for handling motorless products
Spec
Stage surface size60×60mm
Travel distance[±°]4～8.5
Load capacity[kgf]5
Travel mechanismBall screw φ6 Lead1
Motorless: Applicable size□28 Stepping motor specification |□38 Servo motor specification|□40 Servo motor specifications
GuideCross Roller Guide
Main material Aluminum-Black alumite finishing
Height of center rotation100±0.2mm|125±0.2mm|50±0.2mm|75±0.2mm
Repeatability positioning accuracy
[Within±°]		0.001
Option
Height of center rotation[mm]
Sensor cover position
Motorless: Applicable size
Relevant product
Spec List
KGB06050V-L-P28 60×60mm 8.5 5 Ball screw φ6 Lead1 L position □28 Stepping motor specification Cross Roller Guide Aluminum-Black alumite finishing 50±0.2mm All N.C. Sensor cable
(2m One end loose wire) 		31.5(15kHz) ≒0.0021°/Pulse(Full-step) 0.001 0.003 0.01 0.4 3D
KGB06050V-L-S38 60×60mm 8.5 5 Ball screw φ6 Lead1 L position □38 Servo motor specification Cross Roller Guide Aluminum-Black alumite finishing 50±0.2mm All N.C. Sensor cable
(2m One end loose wire) 		31.5(15kHz) ≒0.0021°/Pulse(Full-step) 0.001 0.003 0.01 0.44 3D
KGB06050V-L-S40 60×60mm 8.5 5 Ball screw φ6 Lead1 L position □40 Servo motor specifications Cross Roller Guide Aluminum-Black alumite finishing 50±0.2mm All N.C. Sensor cable
(2m One end loose wire) 		31.5(15kHz) ≒0.0021°/Pulse(Full-step) 0.001 0.003 0.01 0.45 3D
KGB06050V-R-P28 60×60mm 8.5 5 Ball screw φ6 Lead1 Opposite attached □28 Stepping motor specification Cross Roller Guide Aluminum-Black alumite finishing 50±0.2mm All N.C. Sensor cable
(2m One end loose wire) 		31.5(15kHz) ≒0.0021°/Pulse(Full-step) 0.001 0.003 0.01 0.4 3D
KGB06050V-R-S38 60×60mm 8.5 5 Ball screw φ6 Lead1 Opposite attached □38 Servo motor specification Cross Roller Guide Aluminum-Black alumite finishing 50±0.2mm All N.C. Sensor cable
(2m One end loose wire) 		31.5(15kHz) ≒0.0021°/Pulse(Full-step) 0.001 0.003 0.01 0.44 3D
KGB06050V-R-S40 60×60mm 8.5 5 Ball screw φ6 Lead1 Opposite attached □40 Servo motor specifications Cross Roller Guide Aluminum-Black alumite finishing 50±0.2mm All N.C. Sensor cable
(2m One end loose wire) 		31.5(15kHz) ≒0.0021°/Pulse(Full-step) 0.001 0.003 0.01 0.45 3D
KGB06075V-L-P28 60×60mm 5.5 5 Ball screw φ6 Lead1 L position □28 Stepping motor specification Cross Roller Guide Aluminum-Black alumite finishing 75±0.2mm All N.C. Sensor cable
(2m One end loose wire) 		21(15kHz) ≒0.0014°/Pulse(Full-step) 0.001 0.003 0.01 0.4 3D
KGB06075V-L-S38 60×60mm 5.5 5 Ball screw φ6 Lead1 L position □38 Servo motor specification Cross Roller Guide Aluminum-Black alumite finishing 75±0.2mm All N.C. Sensor cable
(2m One end loose wire) 		21(15kHz) ≒0.0014°/Pulse(Full-step) 0.001 0.003 0.01 0.44 3D
KGB06075V-L-S40 60×60mm 5.5 5 Ball screw φ6 Lead1 L position □40 Servo motor specifications Cross Roller Guide Aluminum-Black alumite finishing 75±0.2mm All N.C. Sensor cable
(2m One end loose wire) 		21(15kHz) ≒0.0014°/Pulse(Full-step) 0.001 0.003 0.01 0.45 3D
KGB06075V-R-P28 60×60mm 5.5 5 Ball screw φ6 Lead1 Opposite attached □28 Stepping motor specification Cross Roller Guide Aluminum-Black alumite finishing 75±0.2mm All N.C. Sensor cable
(2m One end loose wire) 		21(15kHz) ≒0.0014°/Pulse(Full-step) 0.001 0.003 0.01 0.4 3D
KGB06075V-R-S38 60×60mm 5.5 5 Ball screw φ6 Lead1 Opposite attached □38 Servo motor specification Cross Roller Guide Aluminum-Black alumite finishing 75±0.2mm All N.C. Sensor cable
(2m One end loose wire) 		21(15kHz) ≒0.0014°/Pulse(Full-step) 0.001 0.003 0.01 0.44 3D
KGB06075V-R-S40 60×60mm 5.5 5 Ball screw φ6 Lead1 Opposite attached □40 Servo motor specifications Cross Roller Guide Aluminum-Black alumite finishing 75±0.2mm All N.C. Sensor cable
(2m One end loose wire) 		21(15kHz) ≒0.0014°/Pulse(Full-step) 0.001 0.003 0.01 0.45 3D
KGB06100V-L-P28 60×60mm 5 5 Ball screw φ6 Lead1 L position □28 Stepping motor specification Cross Roller Guide Aluminum-Black alumite finishing 100±0.2mm All N.C. Sensor cable
(2m One end loose wire) 		16.5(15kHz) ≒0.0011°/Pulse(Full-step) 0.001 0.003 0.01 0.4 3D
KGB06100V-L-S38 60×60mm 5 5 Ball screw φ6 Lead1 L position □38 Servo motor specification Cross Roller Guide Aluminum-Black alumite finishing 100±0.2mm All N.C. Sensor cable
(2m One end loose wire) 		16.5(15kHz) ≒0.0011°/Pulse(Full-step) 0.001 0.003 0.01 0.44 3D
KGB06100V-L-S40 60×60mm 5 5 Ball screw φ6 Lead1 L position □40 Servo motor specifications Cross Roller Guide Aluminum-Black alumite finishing 100±0.2mm All N.C. Sensor cable
(2m One end loose wire) 		16.5(15kHz) ≒0.0011°/Pulse(Full-step) 0.001 0.003 0.01 0.45 3D
KGB06100V-R-P28 60×60mm 5 5 Ball screw φ6 Lead1 Opposite attached □28 Stepping motor specification Cross Roller Guide Aluminum-Black alumite finishing 100±0.2mm All N.C. Sensor cable
(2m One end loose wire) 		16.5(15kHz) ≒0.0011°/Pulse(Full-step) 0.001 0.003 0.01 0.4 3D
KGB06100V-R-S38 60×60mm 5 5 Ball screw φ6 Lead1 Opposite attached □38 Servo motor specification Cross Roller Guide Aluminum-Black alumite finishing 100±0.2mm All N.C. Sensor cable
(2m One end loose wire) 		16.5(15kHz) ≒0.0011°/Pulse(Full-step) 0.001 0.003 0.01 0.44 3D
KGB06100V-R-S40 60×60mm 5 5 Ball screw φ6 Lead1 Opposite attached □40 Servo motor specifications Cross Roller Guide Aluminum-Black alumite finishing 100±0.2mm All N.C. Sensor cable
(2m One end loose wire) 		16.5(15kHz) ≒0.0011°/Pulse(Full-step) 0.001 0.003 0.01 0.45 3D
KGB06125V-L-P28 60×60mm 4 5 Ball screw φ6 Lead1 L position □28 Stepping motor specification Cross Roller Guide Aluminum-Black alumite finishing 125±0.2mm All N.C. Sensor cable
(2m One end loose wire) 		13.5(15kHz) ≒0.0009°/Pulse(Full-step) 0.001 0.003 0.01 0.4 3D
KGB06125V-L-S38 60×60mm 4 5 Ball screw φ6 Lead1 L position □38 Servo motor specification Cross Roller Guide Aluminum-Black alumite finishing 125±0.2mm All N.C. Sensor cable
(2m One end loose wire) 		13.5(15kHz) ≒0.0009°/Pulse(Full-step) 0.001 0.003 0.01 0.44 3D
KGB06125V-L-S40 60×60mm 4 5 Ball screw φ6 Lead1 L position □40 Servo motor specifications Cross Roller Guide Aluminum-Black alumite finishing 125±0.2mm All N.C. Sensor cable
(2m One end loose wire) 		13.5(15kHz) ≒0.0009°/Pulse(Full-step) 0.001 0.003 0.01 0.45 3D
KGB06125V-R-P28 60×60mm 4 5 Ball screw φ6 Lead1 Opposite attached □28 Stepping motor specification Cross Roller Guide Aluminum-Black alumite finishing 125±0.2mm All N.C. Sensor cable
(2m One end loose wire) 		13.5(15kHz) ≒0.0009°/Pulse(Full-step) 0.001 0.003 0.01 0.4 3D
KGB06125V-R-S38 60×60mm 4 5 Ball screw φ6 Lead1 Opposite attached □38 Servo motor specification Cross Roller Guide Aluminum-Black alumite finishing 125±0.2mm All N.C. Sensor cable
(2m One end loose wire) 		13.5(15kHz) ≒0.0009°/Pulse(Full-step) 0.001 0.003 0.01 0.44 3D
KGB06125V-R-S40 60×60mm 4 5 Ball screw φ6 Lead1 Opposite attached □40 Servo motor specifications Cross Roller Guide Aluminum-Black alumite finishing 125±0.2mm All N.C. Sensor cable
(2m One end loose wire) 		13.5(15kHz) ≒0.0009°/Pulse(Full-step) 0.001 0.003 0.01 0.45 3D
